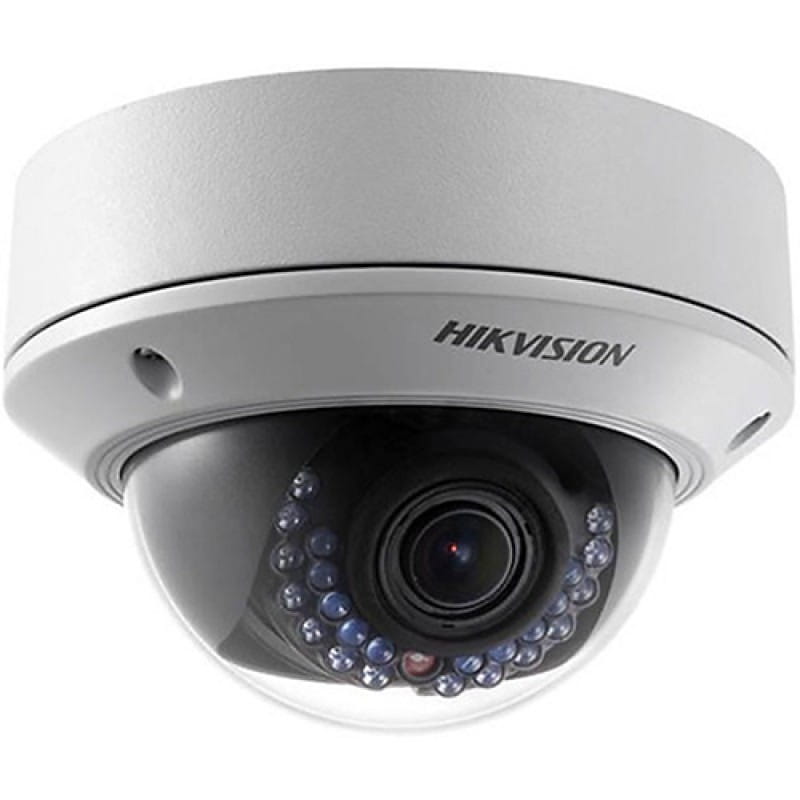

DS-2CD2742FWD-IZS(2.8-12mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 4MP (max. 2688x1520@20kl/s; 1920x1080@30kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.014Lux@F1.4 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8~12mm/F1.4, kompresja: H.264+/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP67, IK10, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, slot na kartę pamięci: 128 GB, 3-osiowa regulacja położenia, wej./wyj. alarmowe: 1/1, wej./wyj. audio: 1/1. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Unit: mm




Accessories
DS-1227ZJ
In-ceiling mount
DS-1273ZJ-135
Wall mount
DS-1280ZJ-DM21
Junction box

DS-2CD2742FWD-I(Z)(S)
4MP WDR Vari-focal Dome Network Camera



 1/3” Progressive Scan CMOS
 Up to 4 megapixel resolution
 120dB WDR
 3D DNR
 Motorized lens 2.8-12mm (-Z)
 Up to 30 meters IR range
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 Audio/alarm I/O (-S)
 Mobile Monitoring via EZVIZ P2P or iVMS-4500
 12V DC±25% & PoE(802.3af Class3)
 Support H.264+
 IP67
 IK10


DS-1273ZJ-135B
Wall mount with Junction box




Specification
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Lens Mount Φ14
Day & Night IR cut filter with auto switch
WDR 120dB
Compression
Standard

Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio (-S) G.711/G.722.1/G.726/MP2L2, 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2688x1520
Max Frame Rate
50Hz:Main stream:20fps(2688x1520),25fps(1920x1080), 25fps(1280x720), Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:20fps(2688x1520),30fps(1920x1080),30fps(1280x720),Sub stream: 30fps(352x240),30fps(640x360)
Enhancement BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS (Support NFS,SMB/CIFS); ANR, Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,
QoS, IPv6, Bonjour
General Function
One-key reset, Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General
Interface 1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power 12V DC±25%, PoE (802.3af, class 3); Max. 5.5 W
Material Front Cover & Base: Metal
Ingress Protection IP67
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
IR Range 20~30 meters
Dimensions Φ 140 x 99.9 mm (Φ 5.51” x 3.94”)
Weight 1000g (2.20lbs)
Order Model
DS-2CD2742FWD-I, DS-2CD2742FWD-IS, DS-2CD2742FWD-IZ, DS-2CD2742FWD-IZS


DS-2CD2742FWD-I(Z)(S)
4MP WDR Vari-focal Dome
Network Camera
