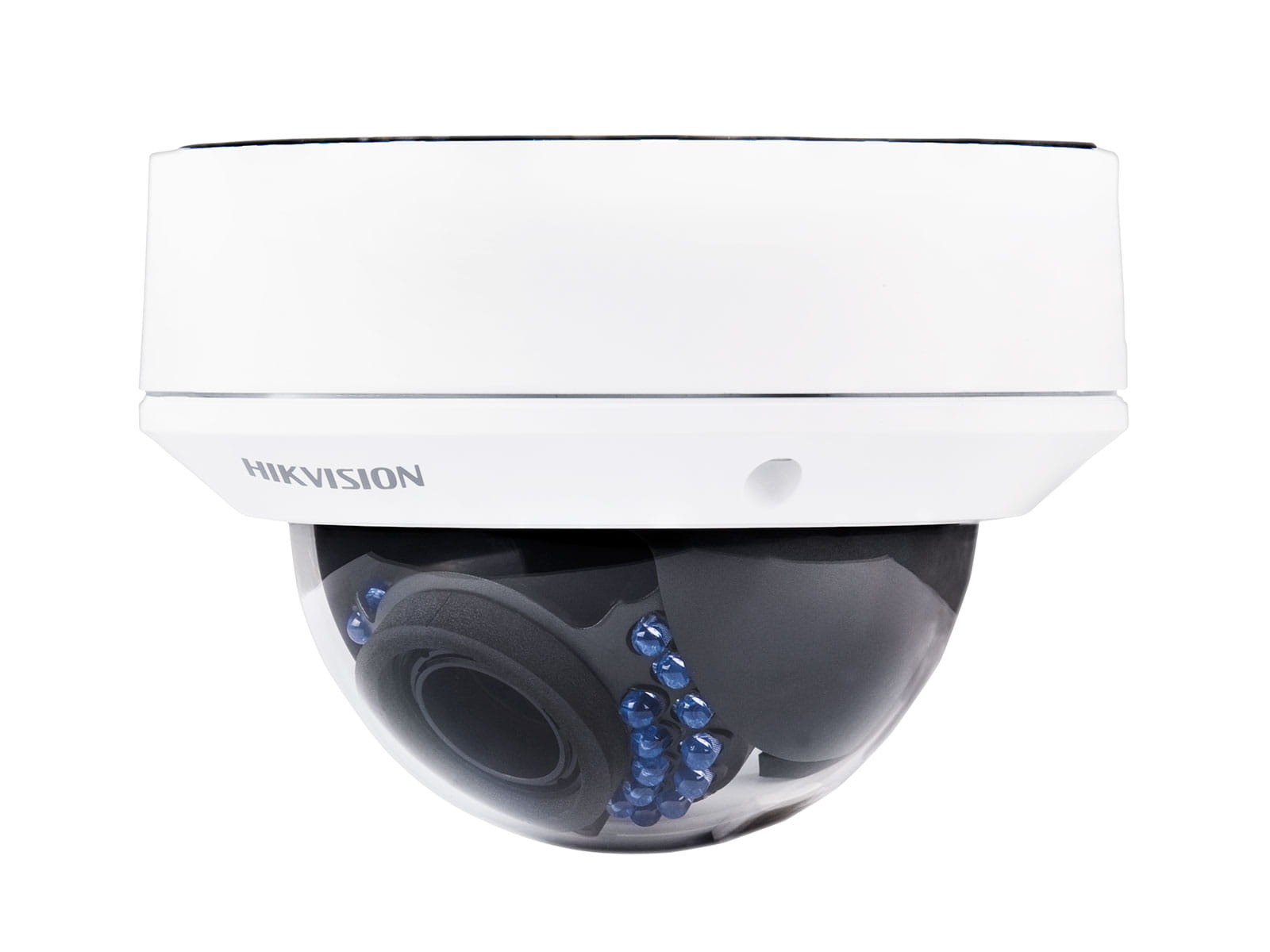

DS-2CD2732F-I(2.8-12mm)

Kamera IP Hikvision w obudowie kopułowej: rozdzielczość 3 MP - 2048×1536@20kl/s, 1920×1080@30kl/s, przetwornik: 1/3" Progressive Scan CMOS, czułość: kolor: 0.07Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR: 20m, dzień/noc ICR, wbudowany slot kart pamięci (do 64GB), obiektyw: 2.8~12mm/F1.4, automatyczna przysłona DC, zasilanie DC12V/PoE, kompresja: H.264/MJPEG, dwa strumienie, IP66, IK10, DWDR, 3D DNR, BLC, detekcja ruchu, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Accessories
Key features
Dimensions
Available models

www.hikvision.com

DS-2CD2712F-I(S) (1.3MP)/DS-2CD2732F-I(S) (3MP)
VF IR Dome Network Camera
Dual Stream

WDR
DIGITAL

BLC
1/3”
CMOS

H.264

PoE

Scan

t 1.3MP / 3MP high resolution
t HD real-time video
t IR LEDs: up to 20m
t DWDR & 3D DNR & BLC
t Onboard storage (up to 64zGB)
t (-S) Audio I/O, Alarm I/O
t IP66
t Vandal-proof

DS-2CD2712F-I, DS-2CD2712F-IS
DS-2CD2732F-I, DS-2CD2732F-IS
* -S: Audio I/O interface and Alarm I/O interface.

DS-2CD2712F-I (S)DS-2CD2732F-I (S)
Camera
Image sensor1/3” progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07 lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/25s (1/30s) ~ 1/100,000s
Lens2.8 ~ 12 mm @F1.4, angle of view: 80° ~ 28.7°2.8 - 12 mm @ F1.4,Angle of view: 105.2°-31.9°
Lens mount
Auto irisDC drive
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight
compensation
Yes, zone congurable
Angle adjustmentPan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Compression Standard
Video compression H.264 / MJPEG
H.264 codec proleMain prole
Bit rate32 Kbps ~ 16 Mbps
Audio compression(-s)G.711 / G.726 / MP2L2
Audio bit rate(-s)64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps
Max. Image Resolution1280 x 9602048 x 1536
Frame rate
50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720), 25
fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720), 30
fps (704 x 576),
30 fps (640 x 480)
50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080),
25fps (1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080),
30fps (1280 x 720)
Image settings
Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web
browser
ROIYes, up to 4 congurable areas
Network
Network storageNAS
Alarm triggerMotion detection, tampering alarm
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesUser authentication, watermark, dual stream
Interface
Communication
interface
1 RJ45 10 M / 100 M Ethernet interface
Onboard storageBuilt-in Micro SD / SDHC / SDXC card slot, up to 64 GB
General
Operating conditions-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5.5W (max. 7W with ICR on)
Impact protectionIEC60068-2-75Eh, 20J; EN50102, up to IK10
Ingress protection levelIP66
IR rangeApprox. 20 meters
Dimensions140 x 99.9 mm ( 5.51” x 3.94”)
Weight1000g

In-ceiling mount
DS-1227ZJ
Wall mount
DS-1273ZJ-135
Junction box
DS-1280ZJ-DM21
