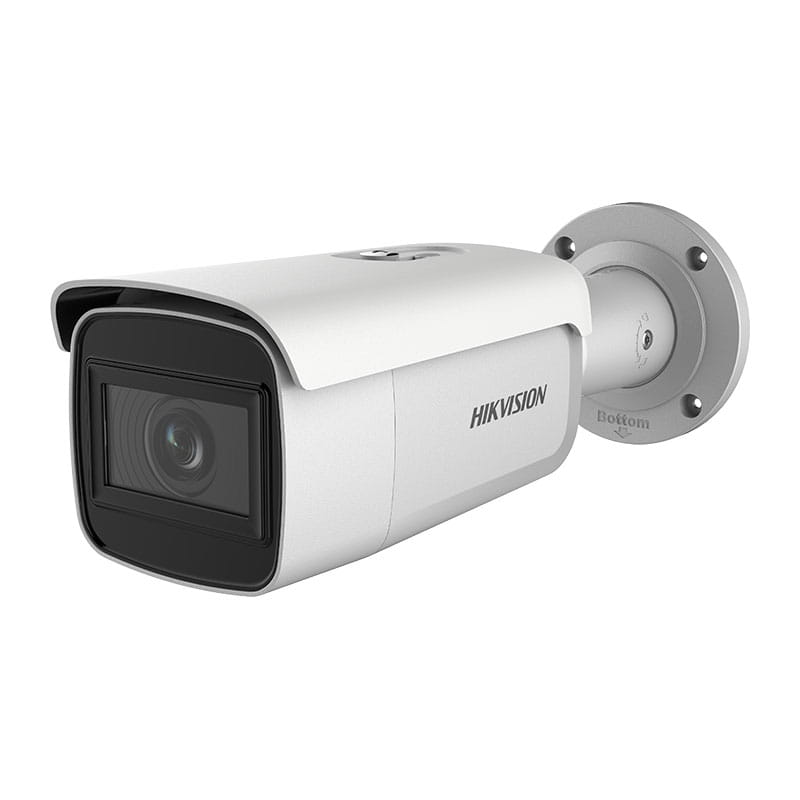

DS-2CD2663G1-IZS(2.8-12mm)

Kamera IP Hikvision typu Bullet, rozdzielczość 6 MP (max. 3072x2048@20 kl/s), przetwornik: 1/2.9" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0.018Lux@ F1.6 (wł. AGC) 0 Lux z IR, zasięg IR do 50m, dzień/noc ICR, obiektyw: 2.8-12mm/F1.6, HFOV: 88st.-27st., VFOV: 56st.-18st., HFOV: 110st.-33st., motozoom. Kompresja: H.265+/H.265/H.264+/H.264/MJPEG, kodowanie audio: G.711/G.722.1/G.726/MP2L2/PCM, 1 wejście/ 1 wyjście audio, 1 wej./1 wyj. alarmowe, trzy strumienie, wyjście analogowe BNC, WDR: 120dB, 3D DNR/HLC/BLC, IP67, IK10, ROI: 1 obszar. Analityka: detekcja przekroczenia linii, detekcja intruza. Funkcje: przycisk resetu, ochrona przed migotniem, ochrona haseł, maski prywatności, znak wodny, filtr adresów IP. 3-osiowa regulacja położenia. Wbudowany sklot na kartę microSD do 128GB, Zasilanie 12VDC/5.5mm przewód koncentryczny/PoE, wymiary: śr. 105.1x297.5 mm, waga: 1285g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

* BLC/3D DNR/ROI/HLC
* IP67
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
*
DS-2CD2663G1-IZ(S)
6 MP IR Varifocal Bullet Network Camera

* 1/2.9" Progressive Scan CMOS
* 3072 x 2048@20 fps
* 2.8 to 12 mm varifocal lens
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.018
Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR

Key Features




Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Lens Type Motorized
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 88° to 27°
Vertical field of view: 56° to 18°
Diagonal field of view: 110° to 33°
Lens Mount Φ14
IR
IR Range Up to 50 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)






Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client
software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S)
* Note: When the main stream resolution is 2944 x 1656 and above, max frame rate is 20 fps for all streams.
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio (-S) 1 input (line in), 1 output (line out), mono sound, terminal block
Alarm (-S) 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug
Power Consumption and
Current
12 VDC, 1.2A, max. 14.5W
PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Protection Level IP67
Material Metal
Dimensions Φ 105.1 x 297.5 mm (Φ 4.1" x 11.7")
Weight
Camera: Approx. 1285 g (2.8 lb.)
With Package: Approx. 1964 g (4.3 lb.)
Available Model:
DS-2CD2663G1-IZ(2.8 to 12 mm), DS-2CD2663G1-IZS(2.8 to 12 mm)







297.5 mm (11.7")
288.2 mm (11.2")Φ105.1 (4.1")62.6 (2.5")
62
.6
(2
.5
")
93
(3
.7
")
4-Φ4.2(0.2")









DS-1276ZJ-SUS
Corner Mount
DS-1260ZJ
Junction Box
DS-1280ZJ-S
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount


Dimensions
Accessories
05058020190429
