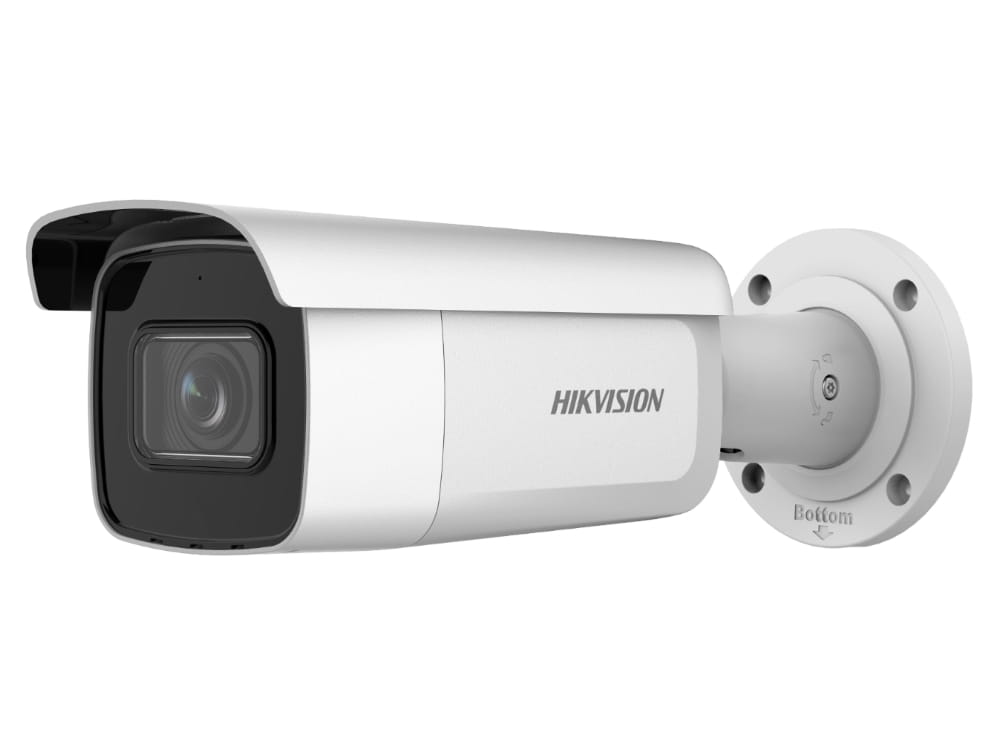

DS-2CD2643G2-IZS(2.8-12mm)

Kamera IP bullet zmiennoogniskowa, 4MPx; przetwornik 1/2.8″ Progressive Scan CMOS ; min oświetlenie kolor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux z wł. IR; migawka 1/3 s do 1/100,000 s; wolna migawka; P/N ; WDR 120dB; Obiektyw 2.8-12mm, hfov 95.8-29.2 vfov 50.6-16.4 dfov 114.6-33.4; Apertura F1.6; zasięg IR do 60m; fala 850nm; max rozdzielczość 2688 × 1520; strumień główny 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) ; kompresja video: H.265/H.264/H.264+/H.265+; ROI 1 region; jednoczesny podgląd na żywo 6kanałów; API: (Profile S, Profile G) ISAPI, SDK; Protokoły: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE; wbudowany slot na karte SD/SDHC/SDXC max 256GB, NAS(NFS,SMB/CIFS), ANR; przełącznik dzień/noc: dzień, noc, auto, harmonogram; Poprawa obrazu: BLC, HLC, 3D DNR; Zmiana parametrów obrazu: tak; ustawienia obrazu: tryb korytarzowy, odbicie lustrzane,maski prywatności, nasycenie, jasność, kontrast, ostrość, wzmocnienie, balans bieli; Audio: 1 wejście 1 wyjście; alarm 1 wejście 1 wyjście; interfejs komunikacyjny 1 RJ45 10M/100M self-adaptive Ethernet port; Zdarzenia: wykrycie ruchu człowiek/pojazd; sabotaż, wyjątek, przekroczenie linii, wtargnięcie; Detekcja twarzy; Temperatura pracy: -30 °C do 60 °C; zasilanie: 12 VDC ± 25% PoE: 802.3at, Class 4; pobór mocy: 12 VDC,1.08 A, max. 13 W PoE: (802.3at, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W; obudowa aluminiowa; wymiary 308.5 × 97.9 × 93 mm (12.2" × 3.9" × 3.7"); waga bez opakowania 1390 g; IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2643G2-IZS
4 MP EXIR Motorized Varifocal Bullet Network Camera









 High quality imaging with 4 MP resolution
 Motorized varifocal lens for easy installation and
monitoring

 Clear imaging against strong backlight due to 120 dB WDR
technology

 Efficient H.265+ compression technology
 water and dust resistant (IP67)






 Specification
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type & FOV Horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
Aperture F1.6
Lens Mount Ø14
Lens Range 2.8 – 12mm, 4X
Auto-Iris YES
DORI
DORI D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Illuminator
IR Range Up to 60 m
Wavelength 850 nm
Video
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360)
60Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC



Audio Bit Rate
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)
/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Porfile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Interface
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1 Vp-p Composite Output (75Ω/CVBS)
On-board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event
Motion detection (human and vehicle), video tampering alarm, exception detection
(network disconnected, IP address conflict, illegal login, HDD full, HDD error, voltage
detection)
Smart Event Line crossing detection, intrusion detection
Face Detection Yes
General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
capture, Email



Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3at, Class 4
Power Consumption and Current
12 VDC, 1.08 A, max. 13 W
PoE: (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
Power Interface Ø5.5 mm coaxial power plug
Material Aluminum alloy body
Camera Dimension 308.5 x 97.9 x 93 mm (12.2" x 3.9" x 3.7")
Package Dimension 385 x 190 x 180 mm (15.2" x 7.5" x 7.1")
Camera Weight Approx. 1390 g (3.1 lb.)
With Package Weight Approx. 1961 g (4.3 lb.)
Digital Watermarking YES
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)


 Dimension


 Available Model
DS-2CD2643G2-IZS (2.8 to 12 mm)



 Accessory
 Included
DS-1280ZJ-S
Junction Box
DS-1260ZJ
Junction Box
