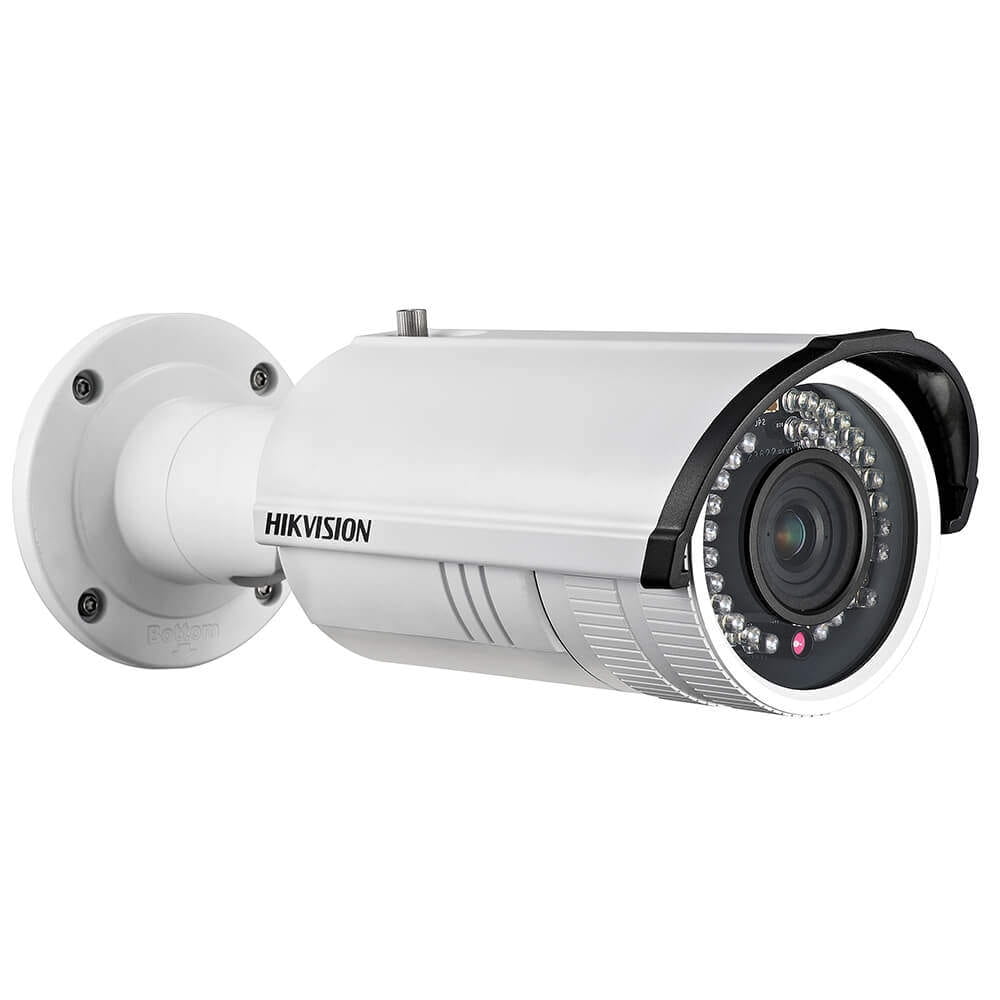

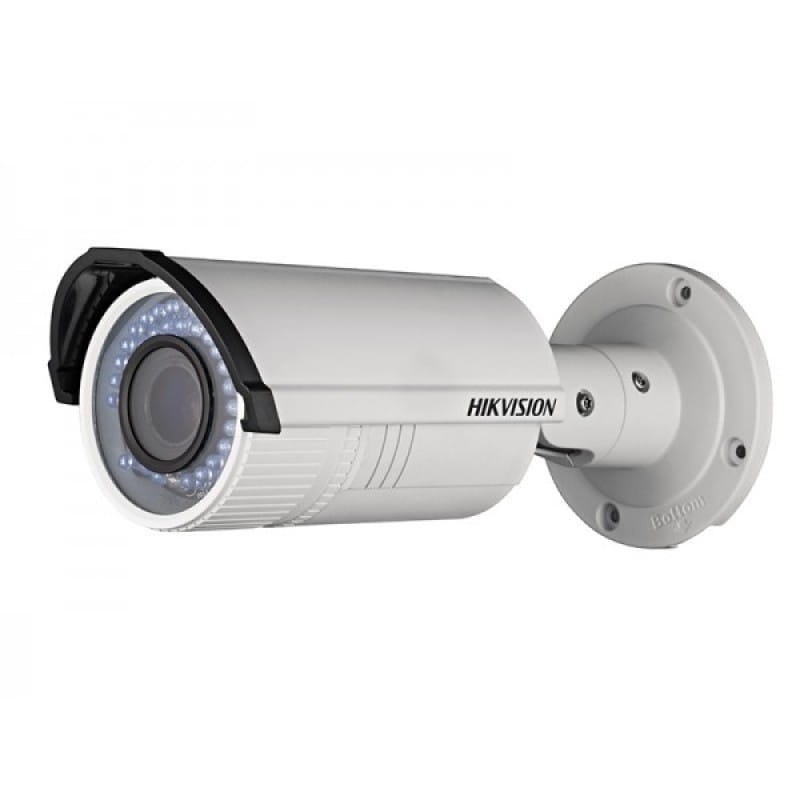

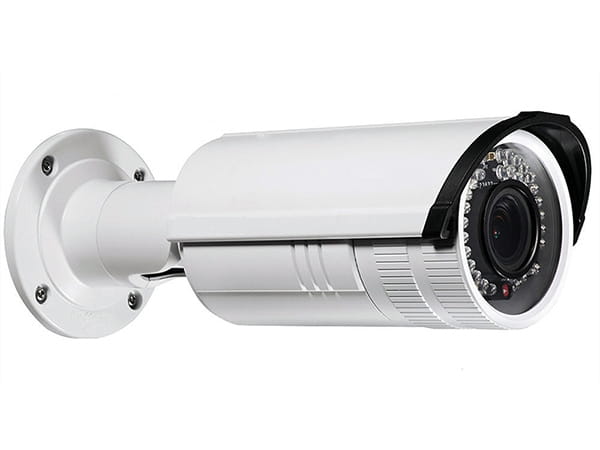

DS-2CD2622FWD-IS(2.8-12mm)

Kamera IP Hikvision w obudowie tulejowej, rozdzielczość 2MP (max. 1920x1080@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.014Lux@F1.4 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8~12mm/F1.4, kompresja: H.264+/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP67, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, slot na kartę pamięci: 128 GB, 3-osiowa regulacja położenia, wej./wyj. alarmowe: 1/1, wej./wyj. audio: 1/1. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2622FWD-I(S)(Z)

Key Features
Up to 2 megapixel 1920x1080 @ 30fps resolution
Standard video compression with high compression ratio, ROI (region of interest) encoding
Progressive scan CMOS, capture motion video without incised margin
Support dual stream, and the sub-stream for mobile surveillance
High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Support 120dB wide dynamic range
IR cut filter with auto switch
Vari-focus
Motorized lens (-Z)
PoE (Power over Ethernet)
3D DNR
Ingress Protection level: IP66
Auto-iris, electronic shutter for different surveillance environments
Other functions: reset button, heartbeat, mirror, etc
3-axis adjustment
Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter

DS-2CD2622FWD-I(S)(Z)
2 Megapixel Bullet Network Camera
Camera
Image Sensor1/3" Progressive Scan CMOS
Min. Illumination
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
0.014Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/10,000 s
Lens
2.8 - 12 mm @ F1.4
-Z: motorized lens


©2006 – 2014 by HIKVISION. All rights reserved.
2
Lens MountΦ14
Day &NightIR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range120dB
Compression Standard
Video CompressionH.264/ MJPEG
H.264 Compression
Type
Main Profile
Video Bit Rate256 Kbps – 16 Mbps
Audio
Compression(-S)
G.711/G.722.1/G.726/MP2L2
Audio Bit Rate(-S)64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) /
32-128Kbps(MP2L2)
Dual StreamYes
Max. Resolution1920x1080
Frame Rate
50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROISupport
Network
Network StorageNAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion Detection, Line Crossing detection, Motion detection,
Dynamic analysis, Tampering alarm, Network disconnect , IP address
conflict, Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
StandardONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
On-board storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 128 GB
General
Operating Conditions-30 °C – 60 °C (-22 °F – 140 °F)


©2006 – 2014 by HIKVISION. All rights reserved.
3
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power ConsumptionMax. 5.5 W (Max. 7.5 W with IR cut filter on)
Ingress Protection
level
IP66
IR Range20~30 meters
Dimensions95x105x258.6 mm (3.74” x 4.13” x 10.18”)
Weight1200g

* “-S” series support 1-ch I/O, 1-ch alarm I/O
Order Models
DS-2CD2622FWD-I, DS-2CD2622FWD-IS, DS-2CD2622FWD-IZ, DS-2CD2622FWD-ISZ
Dimensions
Unit: mm

Accessories

Vertical pole mountJunction box
DS-1275ZJDS-1260ZJ
