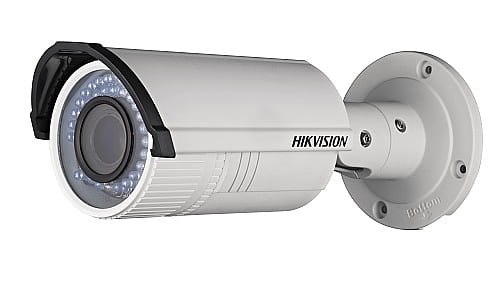

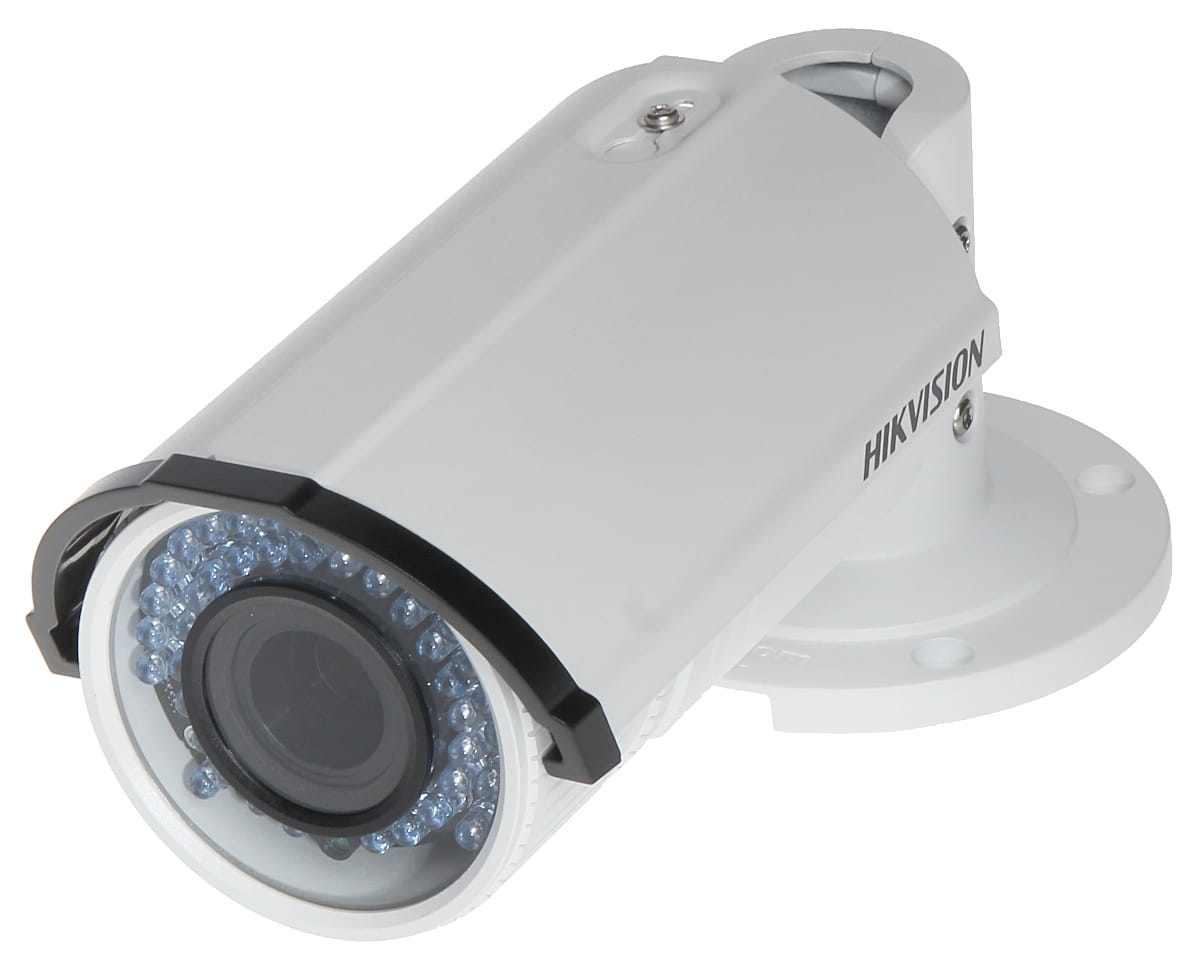

DS-2CD2620F-I(2.8-12mm)

Kamera IP Hikvision w obudowie tulejowej. Rozdzielczość 2 MP - 1920×1080@30kl/s, przetwornik: 1/3" Progressive Scan CMOS. Czułość: tryb kolorowy 0.014Lux@ F1.4 (wł. AGC), 0 Lux z IR, zasięg IR: 30m. Dzień/noc ICR. Wbudowany slot kart pamięci (do 64GB). Obiektyw regulowany 2.8~12mm/F1.4. Kompresja: H.264/MJPEG, dwa strumienie. Funkcje: DWDR, 3D DNR, BLC, detekcja ruchu, automatyczna przysłona, detekcja przekroczenia linii, detekcja naruszenia strefy. Obudowa IP66. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2620F-I(2.8-12mm)(D)

Kod produktu zamiennego: 300723669

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2620F-I(S)


Key Features
 Up to 2 megapixel (1920 x 1080) resolution
 Support ROI function
 Standard video compression with high compression ratio
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
 Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 3D DNR
 DWDR
 Ingress Protection level: IP66
 Auto-iris, electronic shutter for different surveillance environments
 Other functions: reset, heartbeat, mirror, etc.
 3-axis adjustment
 Support intrusion detection and line crossing detection
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2620F-I(S)
2 Megapixel Bullet Network Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8 - 12 mm @ F1.4,Angle of view: 113°-33.8°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
Digital Noise 3D DNR



©2006 – 2014 by HIKVISION. All rights reserved.
2
Reduction
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264/ MJPEG
H.264 Compression
Type
BaseLine Profile/Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711)/ 16Kbps(G.722.1) / 16Kbps(G.726) /32-128Kbps(MP2L2)
Dual Stream Yes
Max. Resolution 1920x1080
Frame Rate
50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic
analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols
TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power Consumption Max. 5.5 W (Max. 7.5W with IR cut filter on)



©2006 – 2014 by HIKVISION. All rights reserved.
3
Ingress Protection
level
IP66
IR Range Approx. 20-30 meters
Dimensions 95x105x258.6 mm (3.74” x 4.13” x 10.18”)
Weight 1200g
* “-S” series support 1-ch audio I/O, 1-ch alarm I/O
Order Models
DS-2CD2620F-I, DS-2CD2620F-IS
Dimensions

Unit: mm
