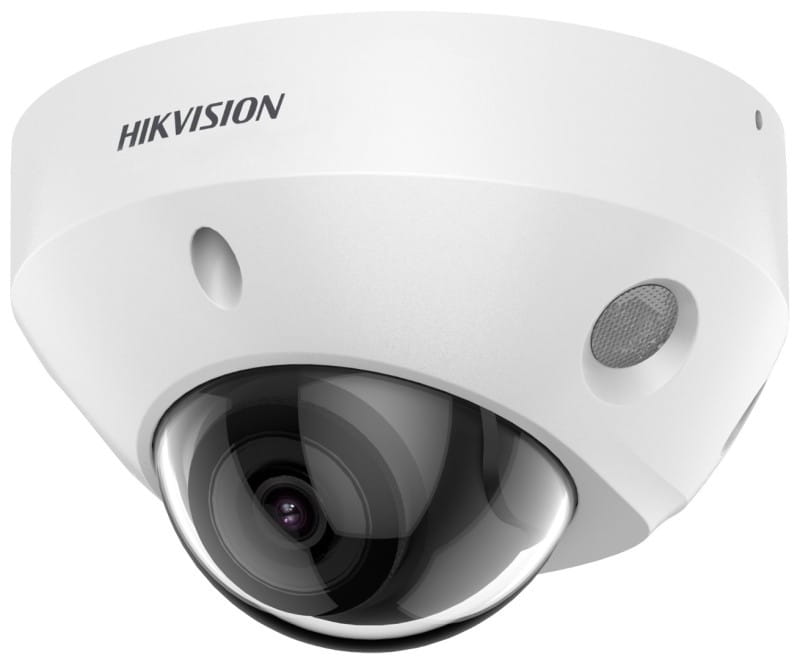

DS-2CD2586G2-IS(2.8mm)(C)

Kamera IP mini kopułowa Acusense, technologia powered-by-DarkFighter, przetwornik 1/1.8″ Progressive Scan CMOS, rozdzielczość 3840 × 2160; Min. Oświetlenie: Kolor: 0.003 Lux @ (F1.6, AGC ON), Cz/B: 0 Lux dla IR, ICR; Obiektyw 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°; Zasięg IR do 30m; Trzy strumienie; H.265/H.264/H.265+/H.264+; Pamięć masowa NAS (NFS, SMB/CIFS), (ANR); Obraz: BLC, HLC, 3D DNR, tryb korytarzowy, 120 dB WDR, wbudowany mikrofon; model z oznaczeniem –IS: 1/1 we/wyj audio, 1/1 we/wy alarmowe; wbudowany slot na kartę do 256GB; Podstawowe zdarzenia: detekcja ruchu (klasyfikacja człowiek/pojazd), sabotaż, wyjątki; zdarzenia smart; Funkcja deeplearning ( detekcja twarzy, ochrona perymetryczna); Zasilanie: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, ochrona przed odwrotną polaryzacją; PoE (802.3af, 36 V do 57 V), 0.22 A do 0.14 A, max. 8 W; Temp.pracy -30 °C do 60 °C; Wymiary: Ø113.6 mm × 72.6 mm; Waga: 400 g; IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2586G2-I(S)
8 MP AcuSense EXIR Fixed Mini Dome Network Camera













Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 8 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 Focusing on human and vehicle classification based on
deep learning
 Clear imaging against strong back light due to 120 dB WDR
technology
 Efficient H.265+ compression technology
 -S: audio and alarm interface available
 Water and dust resistant (IP67) and vandal resistant (IK08)





 Specification
Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 3840 x 2160
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°
4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field
2.8 mm: 2.2 m to ∞
4 mm: 2.6 m to ∞
DORI
DORI
2.8 mm:
D: 89 m
O: 35 m
R: 18 m
I: 9 m
4 mm:
D: 99 m
O: 39 m
R: 20 m
I: 10 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz:
25 fps (3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz:
24 fps (3840 x 2160)
30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.



Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone Yes



Audio
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm
-IS：
1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes
Event
Basic Event
Motion detection (human and vehicle targets classfication), video tampering alarm,
exception
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection, scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity
protection
PoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W
Camera Material Base: aluminum, cover: plastic
Camera Dimension Ø113.6 mm x 72.6 mm (Ø 4.5" x 2.9")
Package Dimension 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Camera Weight Approx. 400 g (0.9 lb.)
With Package Weight Approx. 635 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN
50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)



Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Electrical Safety Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)


 Dimension



 Available Model
DS-2CD2586G2-IS (2.8/4 mm)
DS-2CD2586G2-I (2.8/4 mm)
DS-2CD2586G2-IS (2.8 mm) (BLACK)





 Accessory
 Optional
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-DM46(Blac
k)
Junction Box
DS-1272ZJ-120B
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-DM46
Junction Box




DS-1275ZJ-SUS(Black)
Vertical Pole Mount
DS-1276ZJ-SUS(Black)
Corner Mount
DS-1271ZJ-120(Black)
Pendant Mount
DS-1271ZJ-120
Pendant Mount
DS-1272ZJ-120
Wall Mount
