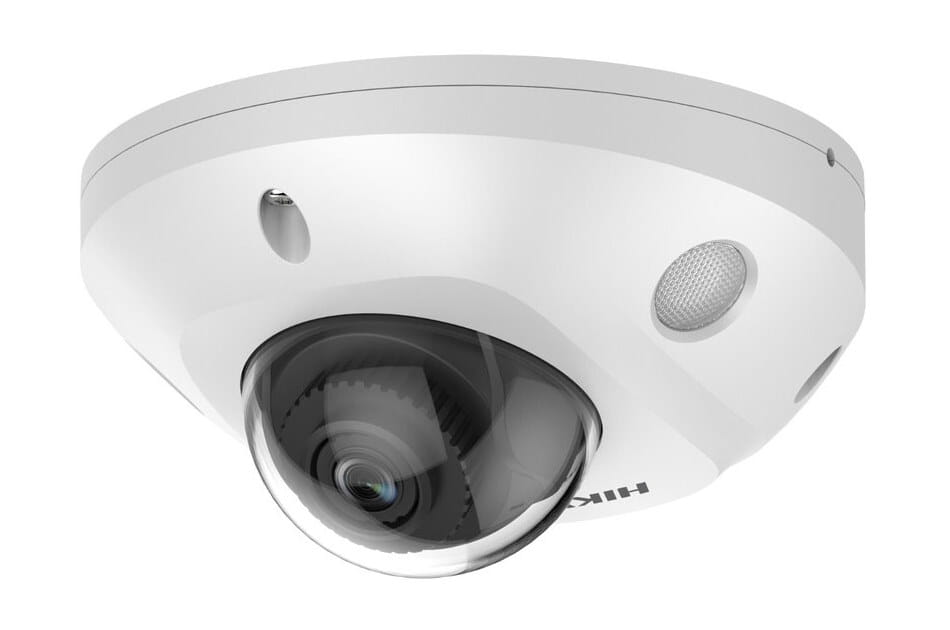

DS-2CD2563G2-IS(2.8mm)

Kamera IP mini kopułowa AcuSense, przetwornik: 1/2.8" Progressive Scan CMOS, rozdzielczość 3200 × 1800, Min. Oświetlenie: 0.005 Lux @ (F1.6, AGC ON), Cz/B: 0 Lux dla IR, ICR, Obiektyw: 2.8 mm, horizontal FOV 108.8°, vertical FOV 57.7°, diagonal FOV 129.4°; Zasięg IR do 30m, dodatkowy oświetlacz smart, trzy strumienie, H.265/H.264/H.265+/H.264+; Pamięć masowa: NAS (NFS, SMB/CIFS), (ANR), slot na kartę pamięci do 256 GB; Obraz: 120 dB WDR, BLC, HLC, 3D DNR, Tryb korytarzowy; Model z oznaczeniem –IS : wbudowany mikrofon, 1/1 we/wy audio; 1/1 we./wy alarmowe; Zdarzenia podstawowe: detekcja ruchu (klasyfikacja człowiek/pojazd), sabotaż, wyjątki; Zdarzenia smart: detekcja przekroczenia linii, detekcja intruza, wykrycie twarzy; Funkcje DeepLearning: Ochrona perymetryczna; zasilanie: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, ochrona przed odwrotną polaryzacją; PoE: 802.3af, Class 3, 36 V do 57 V, 0.19 A do 0.12 A, max. 7 W; Wymiary: Ø110 mm × 57.4 mm; Waga 375 g; Temp.pracy -30 °C do 60 °C; IP67 (IEC 60529-2013), IK8 (IEC 62262:2002)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -2CD2563G2 -I(S)
6 MP AcuSense Fixed mini Dome Network Camera














Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back -end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.


High quality imaging with 6 MP resolution


Clear imaging against strong backlight due to 120 dB WDR
technology


Efficient H.265+ compression technology


Focus on human and vehicle targets classification based on
deep learning


-S: audio and alarm interface available


Water and dust resistant (IP67) and vandal resistant (IK08)








Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 3200 x 1800
Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night IR cut filter
Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108.8°, vertical FOV 57.7°, diagonal FOV 129.4°
4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field
2.8 mm: 1.5 m to ∞
mm: 1.9 m to ∞
DORI
DORI
2 mm
D m
O 35 m
R 1 m
I m
mm
D 11 m
O 7 m
R 2 m
I 12 m
Illuminator
Supplement Ligt pe IR
Supplement Ligt Range p to 30 m
Smart Supplement Ligt es
IR avelengt 50 nm
Video
Main Stream
50 20 fps (3200 100)
25 fps (26 1520 120 100 120 720)
60 20 fps (3200 100)
30 fps (26 1520 120 100 120 720)
Sub-Stream
50 25 fps (60 0 60 360)
60 30 fps (60 0 60 360)
ird Stream
50 10 fps (120 100 120 720 60 0 60 360)
60 10 fps (120 100 120 720 60 0 60 360)
ird stream is supported under certain settings



Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering es
Audio Sampling Rate k16 k32 k1 k k
Audio Compression G711ulawG711alawG7221G726MP2L2PCMMP3AAC
Audio it Rate
6 bps (G711ulawG711alaw)16 bps (G7221)16 bps (G726)32 to 12 bps
(MP2L2) to 320 bps (MP3)16 to 6 bps (AAC)
Network
Simultaneous Live View p to 6 cannels
API Open Network Video Interface (Profile S Profile G) ISAPI SD
Protocols
CPIP ICMP P PS FP DCP DNS DDNS RP RSP NP PnP SMP
IGMP 021 oS IPv6 DP onour SSLLS PPPoE
serost p to 32 users 3 user levels administrator operator and user
Securit
Password protection complicated password PS encrption IP address filter
Securit Audit Log basic and digest autentication for PPS LS 1112 SSE
and digest autentication for Open Network Video Interface
Network Storage NAS (NFS SMCIFS) auto network replenisment (ANR)
Client iVMS-200 ik-Connect ik-Central
eb rowser
Plug-in reuired live view IE 10 IE 11
Plug-in free live view Crome 570 Firefox 520
Local service Crome 570 Firefox 520
ide Dnamic Range (DR) 120 d
SNR ≥ 52 dB






Interface
Eternet Interface 1 R5 10 M100 M self-adaptive Eternet port
On-oard Storage uilt-in memor card slot support microSD card up to 256 G
uilt-in Micropone es



Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non -equilibrium
Alarm
-IS:
1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes
Event
asic Event
Motion detection (uman and veicle targets classification) video tampering alarm
exception
Smart Event
Line crossing detection intrusion detection
Face detection
Linkage
pload to FPNASmemor card notif surveillance center trigger recording trigger
capture send email
Deep Learning Function
Perimeter Protection
Line crossing intrusion
Support alarm triggering b specified target tpes (uman and veicle)
General
Power
12 VDC 25 05 A max 6 55 mm coaxial power plug reverse polarit
protection
PoE 023af Class 3 36 V to 57 V 01 A to 012 A max 7
Material ase aluminum cover plastic
Dimension 110 mm 57 mm ( 3 23)
Package Dimension 13 mm 13 mm 10 mm (53 53 3)
eigt Approx 375 g (0 lb)
it Package eigt Approx 610 g (13 lb)
Storage Conditions -30 C to 60 C (-22 F to 10 F) umidit 5 or less (non-condensing)
Startup and Operating
Conditions
-30 C to 60 C ( -22 F to 10 F) umidit 5 or less (non -condensing)
Language
33 languages Englis Russian Estonian ulgarian ungarian Greek German Italian
Cec Slovak Frenc Polis Dutc Portuguese Spanis Romanian Danis Swedis
Norwegian Finnis Croatian Slovenian Serbian urkis orean raditional Cinese
ai Vietnamese apanese Latvian Lituanian Portuguese (rail) krainian
General Function Anti-flicker eartbeat password reset via email pixel counter
Approval
EMC
FCC (7 CFR Part 15 Subpart )
CE -EMC (EN 55032 2015 EN 61000 - 3 -2 201 EN 61000 - 3 -3 2013A1 201 EN
50130 - 2011A1 201)
RCM (ASNS CISPR 32 2015)
IC (ICES-003 Issue 7)
C (N32 2015 N35 2015)
Safet
L (L 6236-1)
C (IEC 6236 -1 201A11)
CE -LVD (EN 6236 -1 201A11 2017)



Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
IK8 (IEC 62262:2002)



Dimension












Available Model
DS-2CD2563G2 - IS (2.8/ 4 mm)
DS-2CD2563G2 - I (2.8/4 mm)
DS-2CD2563G2 - IS (2.8 mm)
