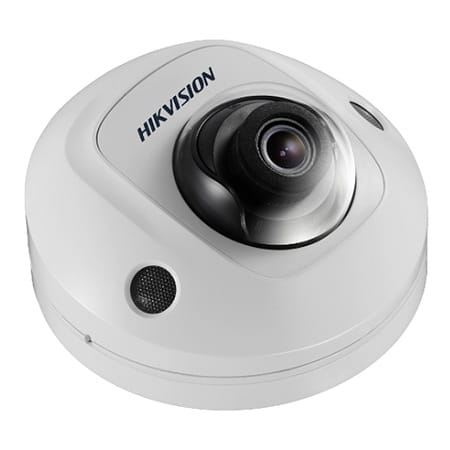

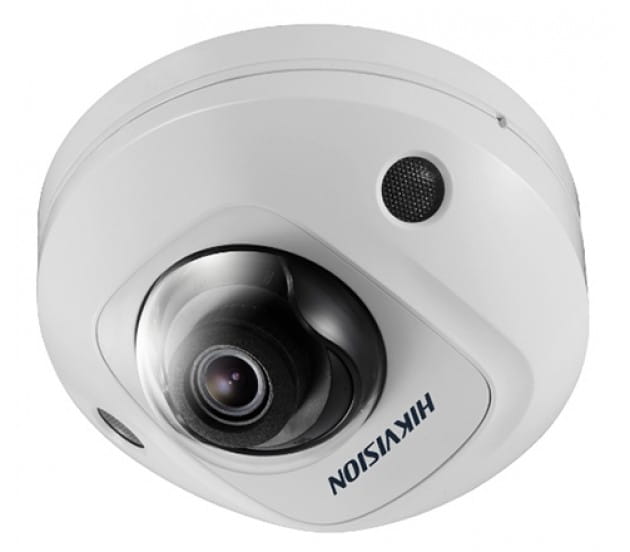

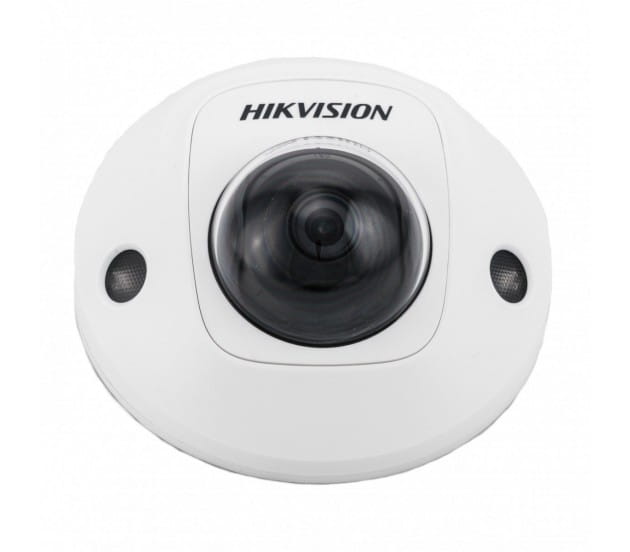

DS-2CD2545FWD-IWS(4mm)

Kamera IP Hikvision w miniaturowej obudowie kopułowej: rozdzielczość 4MP (max. 1920x1080@30kl/s), przetwornik: 1/2.7" Progressive Scan CMOS, czułość: 0.009Lux@ F1.2 (wł. AGC), EXIR, zasięg IR do 10m, dzień/noc ICR, obiektyw: 4mm/F2.0, kompresja: H.265+/H.265/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP66, IK08, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, slot na kartę pamięci: 128 GB, 3-osiowa regulacja położenia, wbudowany mikrofon, wyj. audio, wej./wyj. alarmowe, wbudowany mod. Wi-Fi. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

* 1/2.5" Progressive Scan CMOS
* 2688 x 1520@30 fps
* 2.8, 4, 6 mm fixed lens
* H.265+, H.265, H.264+, H.264
* 120dB WDR
* Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC
ON), 0 lux with IR
* BLC/3D DNR/ROI/HLC
* IP66
* Built-in microSD/SDHC/SDXC card slot, up to 128 GB
* Wi-Fi connection (Optional)

DS-2CD2545FWD-I(W)(S)
4 MP IR Fixed Mini Dome Network Camera

Key Features



Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
Axis Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length 2.8, 4, 6 mm
Aperture F1.6
Focus Fixed
FOV
2.8 mm: Horizontal field of view: 109°, Vertical field of view: 60°, Diagonal field of view: 131°
4 mm: Horizontal field of view: 88°, Vertical field of view: 46°, Diagonal field of view: 105°
6 mm: Horizontal field of view: 53°, Vertical field of view: 30°, Diagonal field of view: 61°
Lens Mount M12
IR
IR Range Up to 10 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
60Hz: 30fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)


Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
SVC H.264 and H.265 encoding support
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Day/Night/Auto/Schedule/ Triggered by Alarm In (-S)
Network
Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model) 2 Inputs: line in or mic in (built-in microphone), 1 Output: line out, mono sound
Alarm (-S model) 1 Input: Alarm in, 1 Output: Alarm out
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
Video Out No
SVC H.264 and H.265 encoding support
Reset Button Yes
Wi-Fi (-W model)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range
50 m
(The performance varies based on actual environment)
Audio (-S model)
Environment Noise Filtering Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)









































Power Consumption and
Current
12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Protection Level IK8, IP66
Material Front cover: plastic, Bottom base: metal
Dimensions Φ110 mm x 56.4 mm (Φ4.3" x 2.2")
Weight Camera: Approx. 390 g (0.9 lb.)
Available Model:
DS-2CD2545FWD-I (2.8/4/6 mm), DS-2CD2545FWD-IS (2.8/4/6 mm), DS-2CD2545FWD-IW (2.8/4/6 mm),
DS-2CD2545FWD-IWS (2.8/4/6 mm)





56
.4
(2
.2
")
41
.7
(1
.6
")







DS-1280ZJ-DM22
Junction Box
DS-1272ZJ-120
Wall Mount
DS-1272ZJ-120B
Wall Mount
DS-1271ZJ-120
Pendant mount
DS-1276ZJ-SUS
Corner Mount


Accessory
Dimensions
