DS-2CD2525FWD-I(4mm)

Dostępność: 0
Cena: 1 014,00 zł 1014.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311301774

Opis

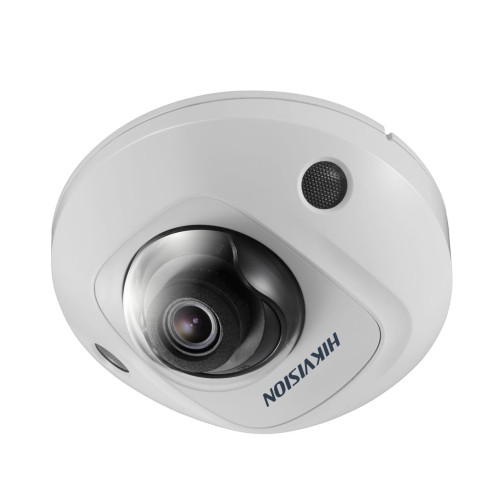

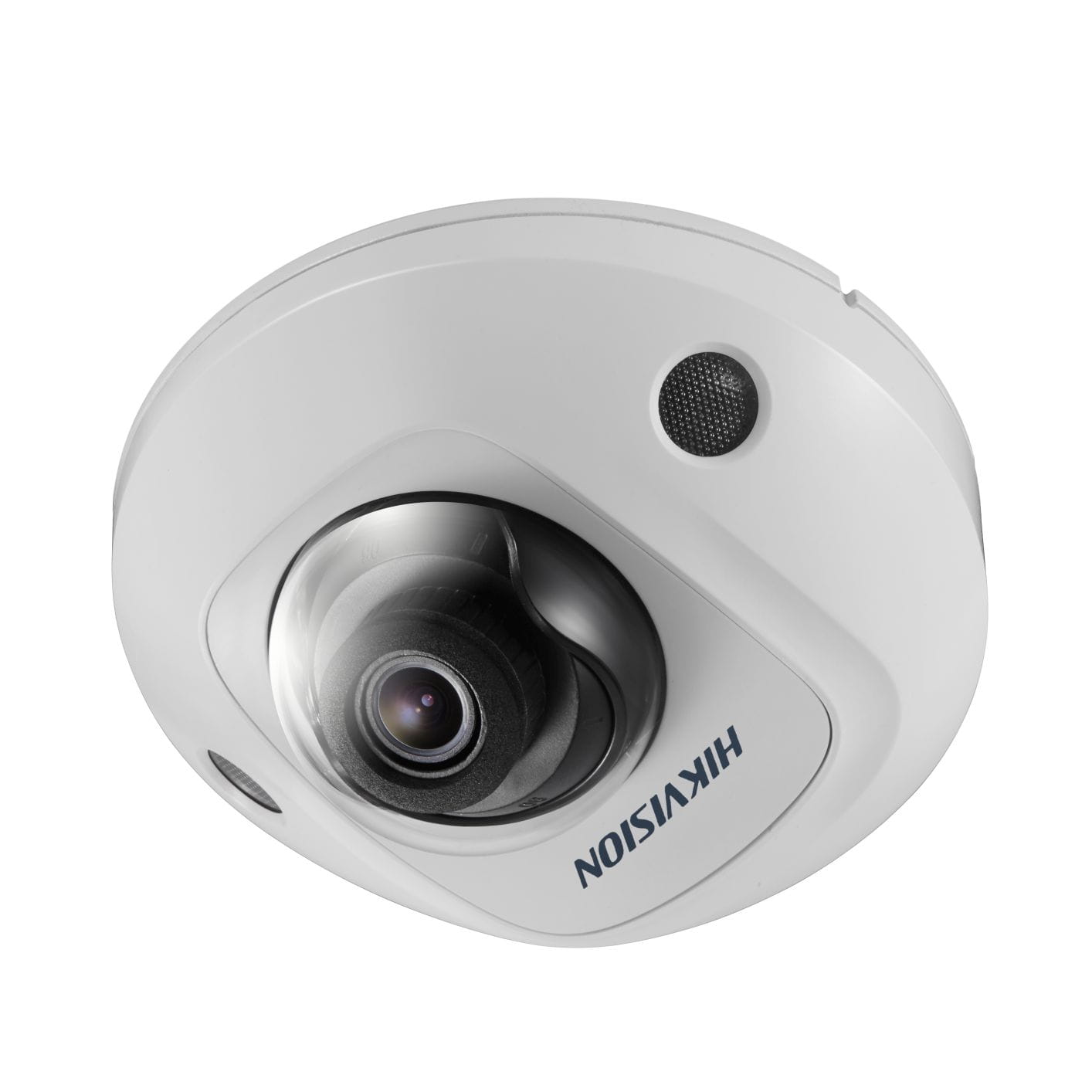

Kamera IP Hikvision w obudowie mini kopułowej, rozdzielczość 2MP (max. 1920×1080@30kl/s), przetwornik: 1/2.8” Progressive Scan CMOS, czułość: 0.005Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 10m, dzień/noc ICR, obiektyw: 4mm/F1.6, kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, tryb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. Sklot na kartę do 128GB. Temperatura pracy: -30°C do +60°C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2525FWD-I(W)(S)
2 MP IR Fixed Mini Dome Network Camera
* 1920 x 1080@30fps
* IR range: up to 10 m
* H.265+. H.265, H.264+, H.264
* 120dB WDR
* Built-in Micro SD/SDHC/SDXC slot, up to 128G
* PoE
* Powered by Darkfighter
* BLC/3D DNR/HLC/ROI
* Wi-Fi (Optional)
* IP66, IK08
* Color: 0.005 Lux @(F1.2, AGC ON), 0 Lux with IR;
Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR


Key Features



Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8, 4, 6 mm
Aperture F1.6
Focus Fixed
FOV
2.8 mm: horizontal field of view: 108°, vertical field of view: 59°, diagonal field of view: 129°
4 mm: horizontal field of view: 87°, vertical field of view: 45°, diagonal field of view: 102°
6 mm: horizontal field of view: 53°, vertical field of view: 29°, diagonal field of view: 60°
Lens Mount M12
IR
IR Range Up to 10 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264 /MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 1920 x 1080
Main Stream
50Hz:25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)


Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Day/Night/Auto/Schedule/ Triggered by Alarm In (-S)
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model) 2 Inputs: Line in or Mic in (built-in microphone), 1 Output: Line out, mono sound
Alarm (-S model) 1 input, 1 output (max. 12 VDC, 30 mA)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.625A, max. 7.5W
PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W
Protection Level
IK08, IP66
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection











Material Front cover: plastic, Bottom base: metal
Dimensions Φ110 mm x 56.4 mm (Φ4.33" x 2.22")
Weight Camera: Approx. 400 g (0.88 lb.)
Available Models:
DS-2CD2525FWD-I, DS-2CD2525FWD-IS, DS-2CD2525FWD-IW, DS-2CD2525FWD-IWS




5
6.3
7m
m
(2.2
2"
)
Φ
9
6m
m(
3
.
7
8"
)
Φ
1
1
0
m
m(
4
.
3
3"
)




DS-1280ZJ-DM22
Junction Box


05055220180619

Accessories
Dimensions
