DS-2CD2523G0-IW(6mm)

Dostępność: 0
Cena: 905,00 zł 905.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311303245

Opis

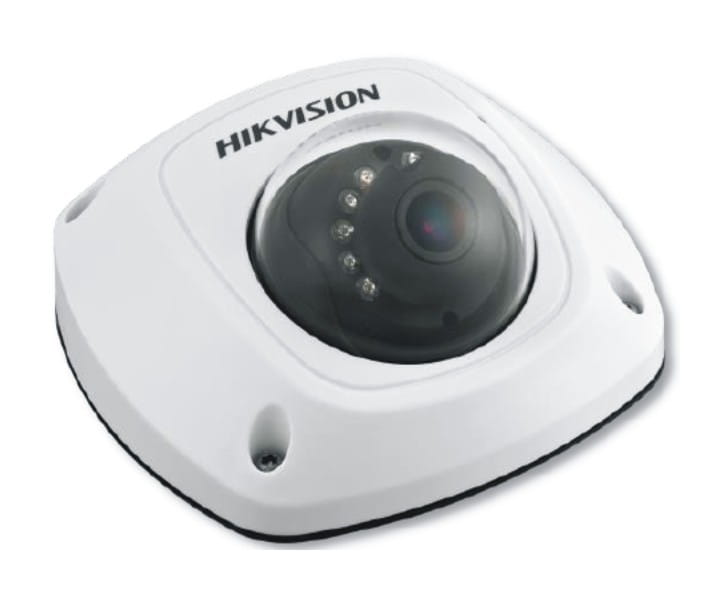

Kamera IP Hikvision w miniaturowej obudowie kopułowej: rozdzielczość 2MP (max. 1920x1080@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), EXIR, zasięg IR do 10m, dzień/noc ICR, obiektyw: 6mm/F2.0, kompresja: H.265+/H.265/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP66, IK08, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, slot na kartę pamięci: 128 GB, 3-osiowa regulacja położenia, wbudowany mod. Wi-Fi. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2523G0-I(W)(S)
2 MP EXIR Fixed Mini Dome Network Camera
* 1920 x 1080@30fps
* IR: Up to 10 m
* H.265+. H.265
* 120dB WDR
* Built-in Micro SD/SDHC/SDXC slot, up to 128G
* PoE
* EXIR
* Wi-Fi (Optional)


Key Features




Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8, 4, 6 mm
Aperture F2.0
FOV
2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135°
4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102°
6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62°
Lens Mount M12
IR
IR Range Up to 10 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264 /MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 256 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 1920 x 1080
Main Stream
50Hz:25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser





Image Enhancement BLC/3D DNR
Day/Night Switch Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model) 2 Inputs: line in (3.5 mm) or mic in (built-in microphone), 1 Output: line out (3.5 mm), mono sound
Alarm (-S model) 1 Input: Alarm in (3.5mm)
1 Output: Alarm out (3.5mm)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in MicroSD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Wi-Fi (-W Model )
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio (-S model)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.7 A, max. 8.5W, Φ 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Protection Level IK08, IP66
Material Front cover: plastic, Bottom base: metal
Dimensions Φ110 mm x 56.4 mm (Φ4.3" x 2.2")
Weight Camera: Approx. 400 g (0.9 lb.)
Available Models:
DS-2CD2523G0-I(2.8/4/6 mm), DS-2CD2523G0-IS(2.8/4/6 mm), DS-2CD2523G0-IW(2.8/4/6 mm), DS-2CD2523G0-IWS(2.8/4/6
mm)






56
.4
(2
.2
")
41
.7
(1
.6
")





DS-1280ZJ-DM22
Junction Box


Accessories
Dimensions
05055120180426
