DS-2CD2520F(4mm)
Opis

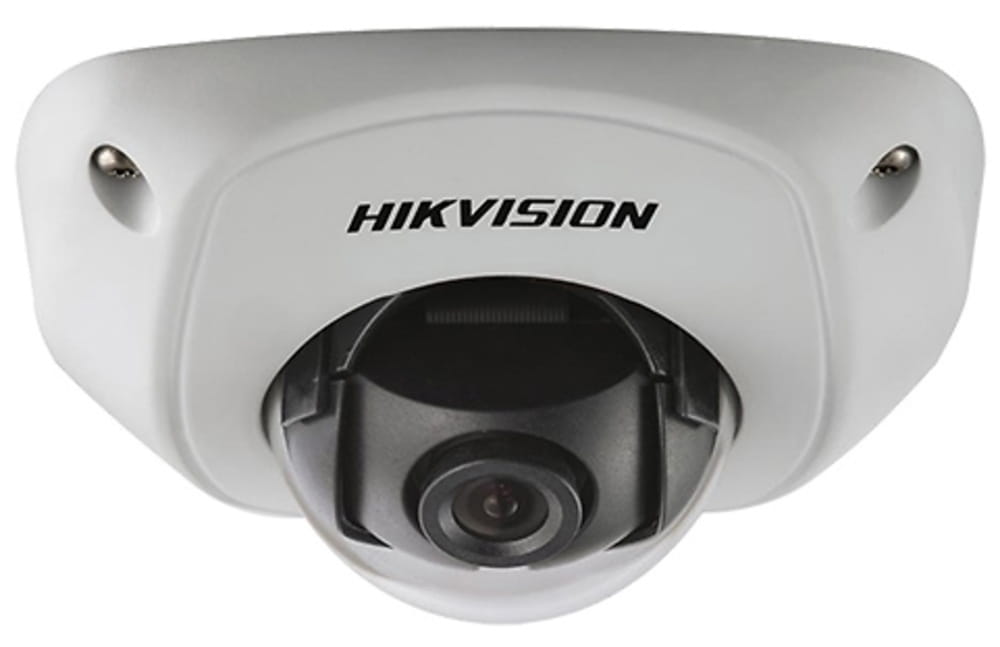

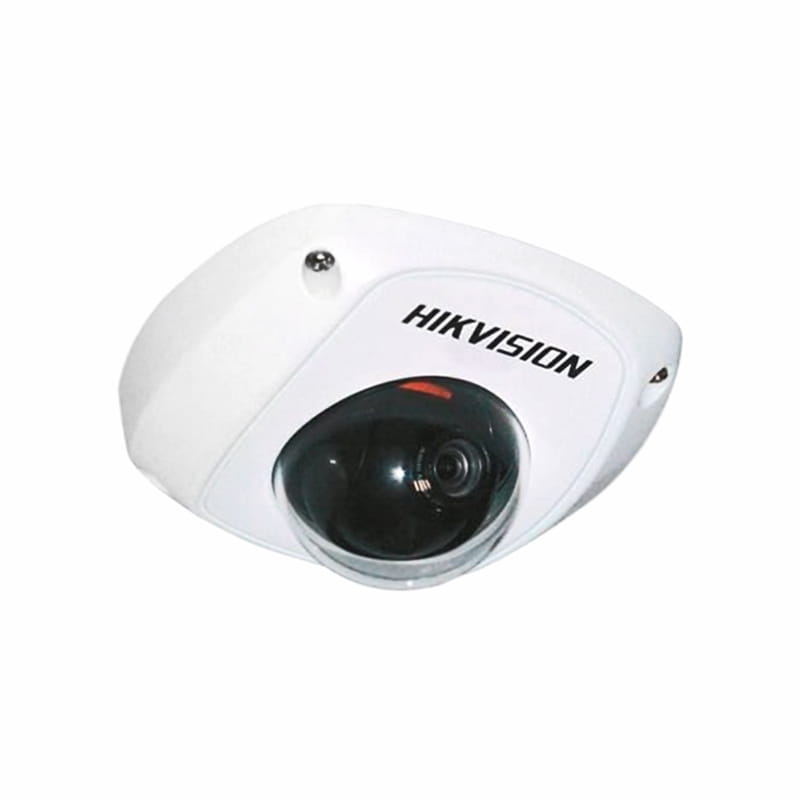

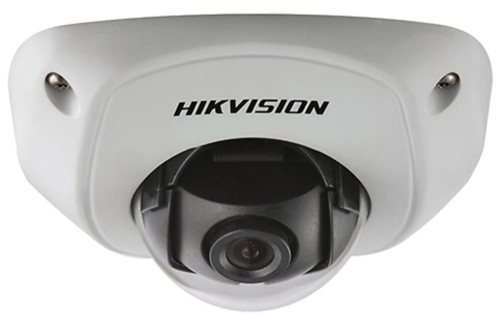

Kamera IP Hikvision w miniaturowej obudowie kopułowej, rozdzielczość 2 MP - 1920×1080@30kl/s, przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.028Lux@(F2.0, wł. AGC), dzień/noc ICR, wbudowany slot kart pamięci (do 128 GB), obiektyw: 4mm/F2.0, kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, obudowa IP66, IK10, detekcja przekroczenia linii, detekcja naruszenia strefy. Zasilanie 12VDC/PoE....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2520F
Key Features
Up to 2 megapixel (1920 x 1080 @ 30 fps) resolution
Standard video compression with high compression ratio, ROI (region of interest) encoding
Progressive scan CMOS
Small and nice
PoE (Power over Ethernet)
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
3D Digital Noise Reduction
Support dual stream, and the sub-stream for mobile surveillance
Support Backlight Compensation, Digital Wide Dynamic Range, Auto-electronic shutter and so on
3-axis adjustment for easy installation
Ingress Protection level: IP66
Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
Other functions: heartbeat, mirror image, reset button, etc
Support intrusion detection and line crossing detection
Support VCA, which is compatible with NVR for the second time of video searching and analysing
Application Scenarios
It is suitable for low or no illumination environment with HD image quality like road, storage, underground park, bar,
tube, garden and so on. Especially it can be used in monitor space needed HD image quality and imperceptibility like
hotel, supermarket, office, passage, stairs, elevator, etc.
Specifications
Model
parameters
DS-2CD2520F
2 megapixel CMOS Network Mini Dome Camera
Camera
©2006 – 2014 by HIKVISION. All rights reserved.
2
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
Color : 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON)
B/W : 0.001Lux @(F1.2,AGC ON), 0.0028Lux @(F2.0,AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm@F2.0 (2.8mm, 6mm optional)
Angle of view: 85°(4mm)
Lens Mount M12
Day &Night Electronic
Digital Noise
Reduction
3D DNR
Angle Adjustment Pan: ± 15°, Tilt: 0 - 90°, Rotation: ± 15°
WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 encoding
level
BaseLine Profile/Main Profile
Video Bit Rate 32Kbps~8Mbps
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web
browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage
Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB.
NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic Analysis,
Tampering alarm, Network disconnect, IP address conflict, Storage full, storage
error
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Standard ONVIF, PSIA, CGI, ISAPI
General function
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password
protection, privacy mask, watermark, IP address filtering, Anonymous access
Interface
Communication 1 RJ45 10M/100M Ethernet interface
General
Operating
Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
©2006 – 2014 by HIKVISION. All rights reserved.
3
Power Supply 12 VDC±10% / PoE
Power
Consumption
Max. 4W
Protect level IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
Dimensions (mm) 99.9 x 97.5 x 46.5 mm (3.93” x 3.84” x 1.83”)
Weight 400 g (0.88 lbs)
Order Model
DS-2CD2520F
Dimensions
Unit: mm
Accessories
Pendant mount Indoor/Outdoor wall mount
DS-1271ZJ-120 DS-1272ZJ-120
