DS-2CD2483G2-I(2.8mm)

Dostępność: 11-50
Cena: 1 115,00 zł 1115.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311316112

Opis

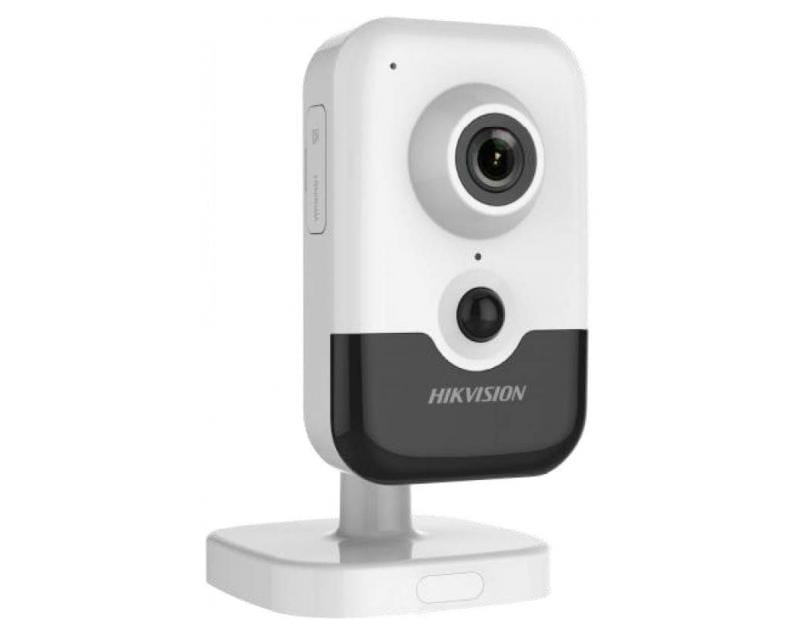

Kamera IP Hikvision typu Cube, rozdzielczość 8MP (3840x2160/15kl.s), 1/2.5" Progressive Scan CMOS, czułość: kolor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux dla IR; 120dB WDR, Obiektyw 2.8 mm: HFOV: 102°, VFOV: 53°, DFOV: 124°; Zasięg IR do 10m; PIR do 10 m Horizontal: 90°, Vertical: 80°; Trzy strumienie; Kompresja H.265/H.264; Zdarzenia smart: Detekcja przekroczenia linii, detekcja intruza, wykrywanie twarzy; Podstawowe zdarzenia: detekcja ruchu, sabotaż, wyjątki; BLC/3D DNR/HLC, wbudowany slot na kartę SD do 128G; wbudowany mikrofon, wbudowany głośnik, przycisk reset; Temperatura pracy: -10 °C do +40 °C; Zasilanie 12 VDC ± 25%, PoE (802.3af, class 3); Wymiary: 102.8 mm × 65.2 mm × 32.6 mm; Waga 128g...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2483G2-I
8 MP AcuSense Fixed Cube Network Camera














Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 8 MP resolution
 Clear imaging against strong backlight due to 120 dB WDR
technology
 Efficient H.265+ compression technology
 Focus on human and vehicle classification based on deep
learning
 Provide real-time security via built-in two-way audio
 Detect human body through passive infrared which is
sensitive to body temperature (PIR)






 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 107.8°, vertical FOV 57.9°, diagonal FOV 126.7°
4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98°
Aperture F2.0
Lens Mount M12
DORI
DORI
2.8 mm: D: 85.5 m, O: 33.9 m, R: 17.1 m, I: 8.6 m
4 mm: D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11.0 m
Illuminator
IR Range Up to 10 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 x 2160
Main Stream
50 Hz: 12.5 fps (3840 x 2160, 3200 x 1800)
25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 15 fps (3840 x 2160, 3200 x 1800)
30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.265+
Sub-stream: H.265/MJPEG
Third stream: H.265
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC



Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
PIR
PIR Angle Horizontal: 90°, vertical: 80°
PIR Range Up to 8 m
Interface
Built-in Microphone Yes
Built-in Speaker Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Face Detection Yes
Deep Learning Function
Perimeter Protection
Line crossing detection, intrusion detection
Supports human and vehicle targets classification
General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email, audible warning



Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.5 A, max. 5.9 W
PoE (802.3af, 36 V to 57 V), 0.13 A to 0.2 A, max. 6.9 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Plastic
Camera Dimension 102.9 mm x 65.2 mm x 32.6 mm (4.1" x 2.6" x 1.3")
Package Dimension 150 mm x 125 mm x 99 mm (5.9" x 4.9" x 3.9")
Camera Weight Approx. 120 g (0.3 lb.)
With Package Weight Approx. 340 g (0.7 lb.)
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)


 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
 Available Model
DS-2CD2483G2-I (2.8/4 mm)



demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.



050511220220114

 Dimension

Dane techniczne

Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Rozdzielczość wizyjna 8MPIX
Typ kamery Cube, Kostka, Biurkowa
Oświetlacz podczerwieni ± 10 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Stałoogniskowy
Stała ogniskowa ± 2.8 mm
Wbudowany głośnik Tak
Slot na karty Tak
Wbudowany mikrofon Tak
