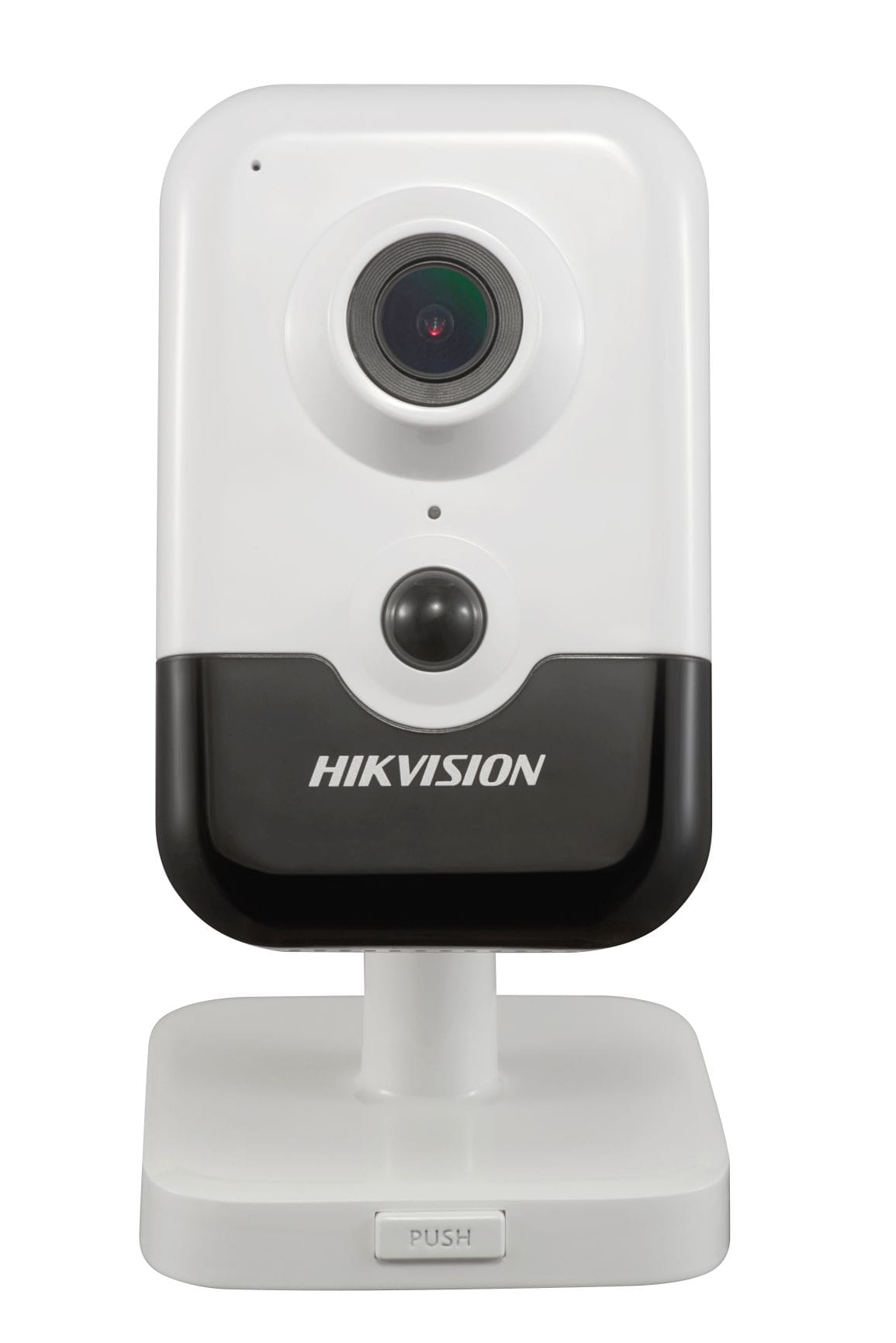

DS-2CD2483G0-IW(2.8mm)

Kamera IP Hikvision w obudowie typu Cube, rozdzielczość 8 MP (max. 1920x1080@30kl/s), przetwornik: 1/2.5" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR: do 10m, dzień/noc ICR, obiektyw: 2.8mm/F1.6, kąt widzenia 108st., kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie WDR: 120dB, 3D DNR, obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy, wbudowany mikrofon oraz głośnik, wbudowana czujka PIR (8m/90st.), wej./wyj. alarmowe. 3-osiowa regulacja położenia, slot na kartę pamięci: 128 GB,. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2483G0-I(W)
8 MP IR Fixed Cube Network Camera
* 3840 x 2160@15fps
* IR: up to 10 m
* PIR: 10 m
* H.265+, H.265, H.264+, H.264
* 120dB WDR
* Built-in MicroSD/SDHC/SDXC slot, up to 128G
* PoE
* BLC/3D DNR/HLC/ROI
* Wi-Fi (Optional)
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0,
AGC ON), 0 lux with IR


Key Features



Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8/4 mm
Aperture F2.0
FOV
2.8 mm: horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
4 mm: horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°
Lens Mount M12
IR
IR Range 10 m
Wavelength 850nm
PIR
Angle Horizontal: 90°, Vertical: 80°
PIR Range 10 m
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 3840 x 2160
Main Stream
50Hz: 12.5 fps (3840 x 2160), 20 fps (3072 x 1728), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 15 fps (3840 x 2160), 20 fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)


60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Settings
Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web
browser
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 x 2160, max frame rate is 12.5 fps (50Hz)/15 fps (60Hz) for all streams. When the
main stream resolution is 3072 x 1728, max frame rate is 20 fps for all streams.
Network
Network Storage
Support micro SD/micro SDHC/micro SDXC card (128G), local storage and NAS (NFS, SMB/CIFS),
ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
PIR, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, IPv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in micro SD/micro SDHC/micro SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W)
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range Up to 50 m
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz
General
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)





Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Material Plastic
Dimensions 102.8 mm x 65.2 mm x 32.6 mm (4.1" x 2.6" x 1.3")
Weight Camera: Approx. 128 g (0.3 lb.)
Available Model
DS-2CD2483G0-I (2.8 mm), DS-2CD2483G0-IW (2.8 mm), DS-2CD2483G0-I (4 mm), DS-2CD2483G0-IW (4 mm)





32.99 mm
(1.30")
1
0
2
.
8
1

m
m

(
4
.
0
5"
)
1
3
4
.
5
1

m
m

(
5
.
3
0"
)
8
8.
1
4

m
m

(
3
.
4
7"
)
65.2 mm
(2.57")
75.5 mm (2.97")75.5 mm (2.97")



























Dimension
