DS-2CD2432F-IW(4mm)

Dostępność: 0
Cena: 789,00 zł 789.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300704493

Opis

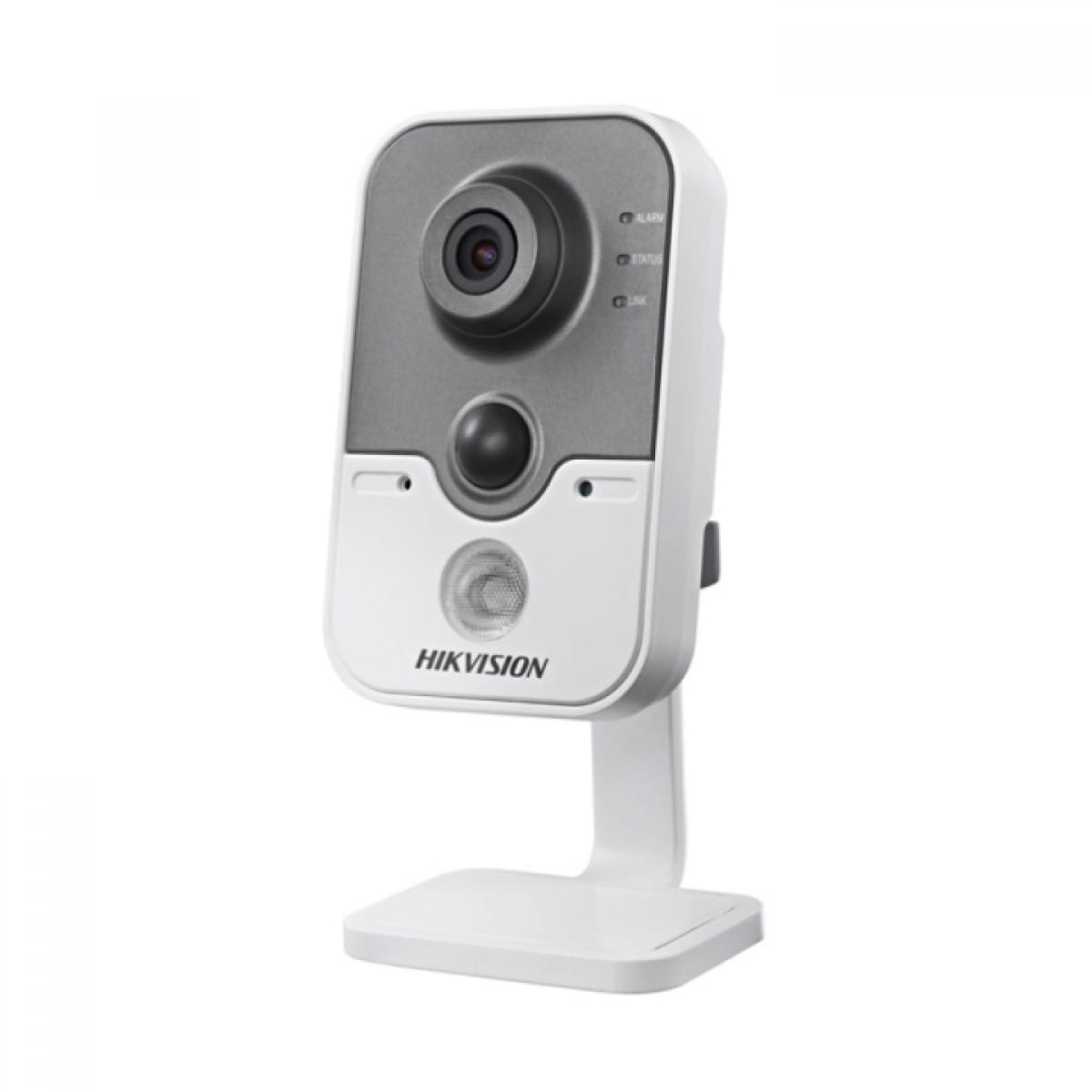

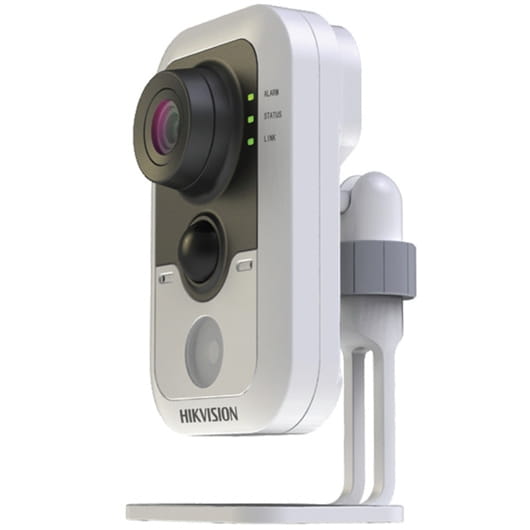

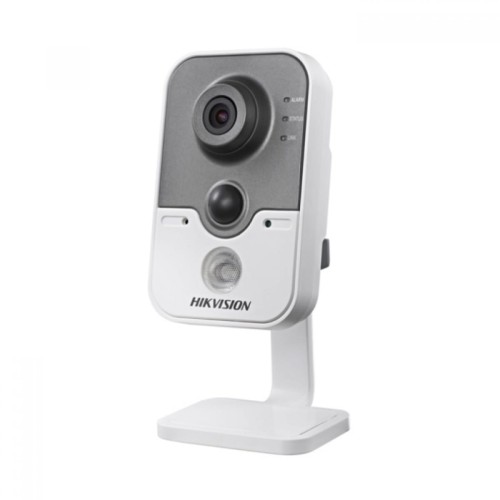

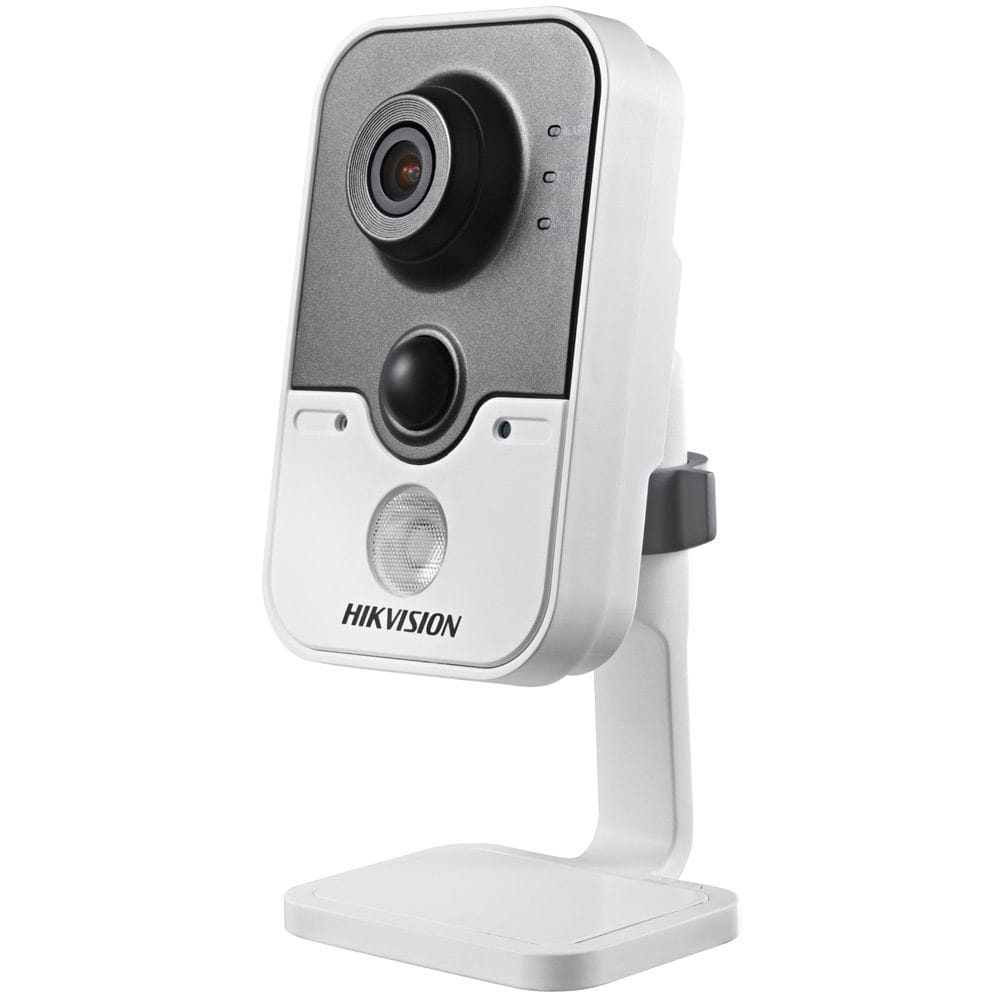

Kamera IP Hikvision w obudowie typu cube: rozdzielczość 3 MP - 2048×1536@20kl/s, 1920x1080@30kl/s, przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR: 10m, dzień/noc ICR, wej./wyj. alarmowe: 1/1, wbudowany mikrofon i głośnik, wbudowany slot kart pamięci (do 64 GB), zasilanie 12VDC/PoE, obiektyw: 4mm/F2.0, kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, PIR, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, Wi-Fi....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Key features
Dimensions
Available models

www.hikvision.com

DS-2CD2412F-I (W) (1.3MP)/DS-2CD2432F-I (W)(3MP)
IR Cube Network Camera
PIR

WDR
DIGITAL

BLC
1/3
CMOS

Dual Stream

H.264

PoE

Scan

t 1.3MP / 3MP high resolution
t HD real-time video
t PIR detection
t IR LEDs (up to 10m)
t DWDR & 3D DNR & BLC
t PoE
t SD/SDHC/SDXC card slot (up to 64zGB)
t Wi-Fi optional (WPS connection)
DS-2CD2412F-I, DS-2CD2412F-IW
DS-2CD2432F-I, DS-2CD2432F-IW
* -W: Wi-Fi

DS-2CD2412F-I (W)DS-2CD2432F-I (W)
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07Lux @(zF1.2,AzGC ON) ,0 Lux with IR
Shutter time1/25s ~ 1/100,000s
Lens
4mm@ F2.0 (2.8mm, 6mm optional)4mm@ F2.0 (2.8mm, 6mm optional)
Angle of view: 92.5°(2.8mm), 73.1°(4mm),
46°(6mm)
2048 x 1536: Angle of view: 86°(2.8mm), 70°(4mm),
43.3°(6mm)
1920 x 1080:Angle of view: 98.5°(2.8mm), 79°(4mm),
49°(6mm)
Lens mountM12
Day & nightIR cut lter with auto switch
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Backlight compensationYes, zone congurable
Compression Standard
Video compression H.264 / MJPEG
H.264 codec proleMain prole
Bit rate32 Kbps ~ 16 Mbps
Audio compressionG.711/G.726/MP2L2
Audio bit rate64Kbps(zG.711) / 16Kbps(zG.726) / 32-128Kbps(MP2L2)
Max. Image Resolution1280 x 9602048 x 1536
Frame rate
50 Hz: 25 fps (1280 x 960), 25 fps (1280 x720),
25 fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x720),
30 fps (704 x 576),
30 fps (640 x 480)
50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps
(1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps
(1280 x 720)
Image settings
Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web
browser
ROIYes, up to 4 congurable areas
Network
Network storageLocal storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB. NAS
Alarm trigger
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conict, Storage
exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibilityONVIF, PSIA, CGI, ISAPI
General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication
interface
1 RJ45 10 M / 100 M Ethernet interface
Onboard storageBuilt-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O1/1
Wi-Fi parameters (only for -W model)
Wi-Fi standardIEEE802.11b, 802.11g, 802.11n Draft
Frequency range2.4 GHz ~ 2.4835 GHz
Communication
bandwidth
Support 20/40 MHz
Protocols802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM
802.11g/n: OFDM64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission rangeOutdoor: 200m, Indoor: 50m(depend on environment)
Wireless StandardsIEEE802.11b, 802.11g, 802.11n Draft
General
Operating conditions
-30 °C j 60 °C
Humidity 95% or less (non-condensing)
Power supplyDC12V±10% / PoE(802.3af)
Power consumptionMax. 5W
PIR
Angle: 80°
Range: 10m
IR range10 meters
Dimension66x91.5x131.3(2.60px3.60p x5.17p)
Weight400g(0.88lbs)
* “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X
protocol.
*Without power adaptor in the case by default.
Available models
