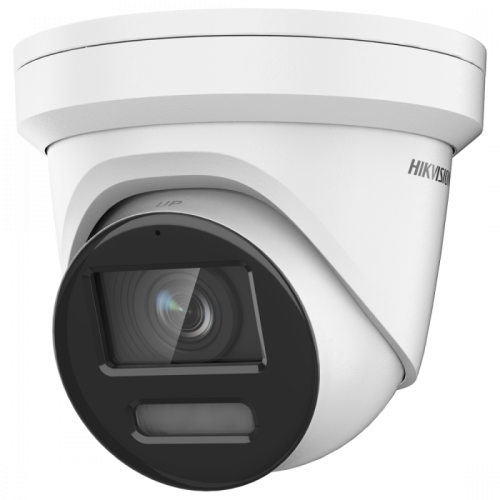

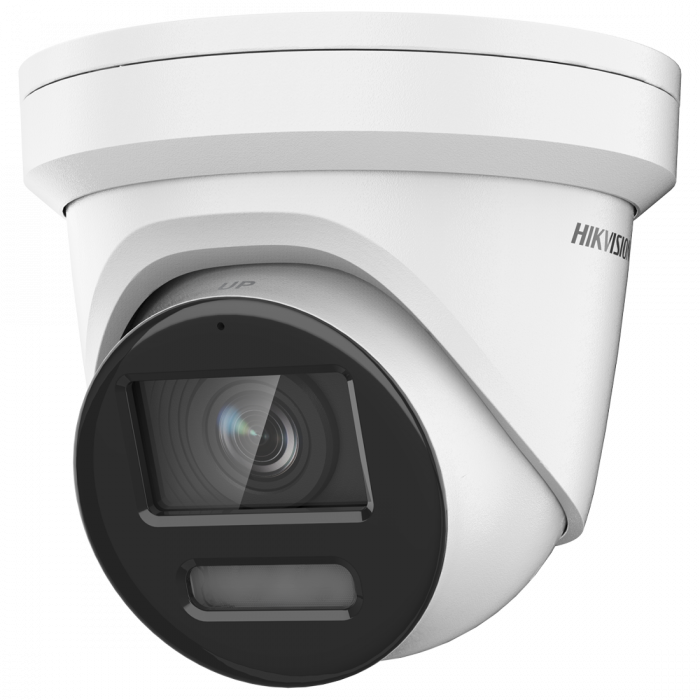

DS-2CD2387G2-LSU/SL(2.8mm)(C)

Kamera IP ColorVu 8MP typu Turret ze światłem stroboskopowym i ostrzeżeniem dźwiękowym; 1/1.2″ Progressive Scan CMOS; 3840 × 2160; Kolor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux dla światła białego; Obiektyw: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°; zasięg światła białego: 30m, trzy strumienie, kompresja: H.265/H.264/H.264+/H.265+; Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP, Pamięć masowa: NAS (NFS, SMB/CIFS), (ANR); WDR 130 dB, 8 programowalnych masek prywatności, BLC, HLC, 3D DNR, tryb korytarzowy, slot na kartę pamięci do 256GB; wbudowany głośnik, mikrofon, 1/1 we/wyj audio, 1/1 we/wyj alarmowe; Zdarzenia podstawowe (Detekcja ruchu (obsługa wyzwalania alarmu przez określone typy celów (człowiek/pojazd)), alarm sabotażu wideo, wyjątki (rozłączenie sieci, konflikt adresów IP, nielegalne logowanie, zapełnienie dysku twardego, błąd dysku twardego); Zdarzenia SMART: Wykrywanie przekroczenia linii, wykrywanie wtargnięcia, wykrywanie wejścia do regionu, wykrywanie wyjścia z regionu (obsługa wyzwalania alarmu przez określone typy celów (człowiek/pojazd)), Detekcja zmiany sceny); Funkcje Deep Learnig: przechwytywanie twarzy; Zasilanie: 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, ochrona przed odwrotną polaryzacją PoE: 802.3af, Class 3, 36 V do 57 V, 0.24 A do 0.15 A; Wymiary: Ø 138.3 mm × 120.1 mm; Waga: 900 g Temperatura pracy: -30 °C do 60 °C; IP67: IEC 60529-2013...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2387G2H-LISU/SL(2.8mm)(eF)

Kod produktu zamiennego: 311324320

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -2CD2387G2-LSU/SL
8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses and high performance
sensors. F1.0 super-aperture collects more light to produce
brighter images. Advanced sensor technology can vastly
improve the utilization of available light.
 High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB
WDR technology
Focus on human and vehicle targets classification based
on deep learning
24/7 colorful imaging
Active strobe light and audio alarm to warn intruders off
Provide real -time security via built-in two-way audio
Audio and alarm interface available
Water and dust resistant (IP67)



 Specification
Camera
Image Sensor 1/1.2″ Progressive Scan CMOS
Max. Resolution 3840 x 2160
Min. Illumination Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light
Shutter Speed 1/3 s to 1/100,000 s
Day ＆ Night 24/7 Color imaging
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length ＆ FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Lens Mount M mount
Iris Type Fixed
Aperture F1.0
Depth of Field
2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
DORI
DORI
2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream
50 Hz:
25 fps (3840 x 2160, 3200 x 1800 , 2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz:
24 fps (3840 x 2160)
30 fps (3200 x 1800 , 2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering -U: Yes



Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Privacy Mask 8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256
GB
Built-in Microphone Yes
Built-in Speaker 1.5 W, 10 cm: 95 dB
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface
type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω,
interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception (network disconnected, IP address conflict,
illegal login, HDD full, HDD error)



Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggering by specified target types (human and vehicle)),
scene change detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger
capture, send email
Deep Learning Function
Face Capture Yes
General
Power
12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity
protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
Material Cover: metal, main body: metal
Dimension Ø138.3 mm x 120.1 mm (Ø5.4" x 4.7")
Package Dimension 170 mm x 170 mm x 150 mm (6.7" x 6.7" x 5.9")
Weight Approx. 900 g (2 lb.)
With Package Weight Approx. 1190 g (2.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN
50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection IP67: IEC 60529-2013



 Available Model
DS-2CD2387G2-LSU/SL (2.8/4 mm)




 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Dimension





Accessory
Optional
DS -1273ZJ-140
Wall Mount
DS -1273ZJ-140B
Wall Mount
DS -1276ZJ-SUS
Corner Mount
DS -1275ZJ-SUS
Vertical Pole Mount
DS -1271ZJ-140
Pendant Mount
DS-1280ZJ-DM21
Junction Box
