DS-2CD2385FWD-I(4mm)

Dostępność: 0
Cena: 1 298,00 zł 1298.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300819749

Opis

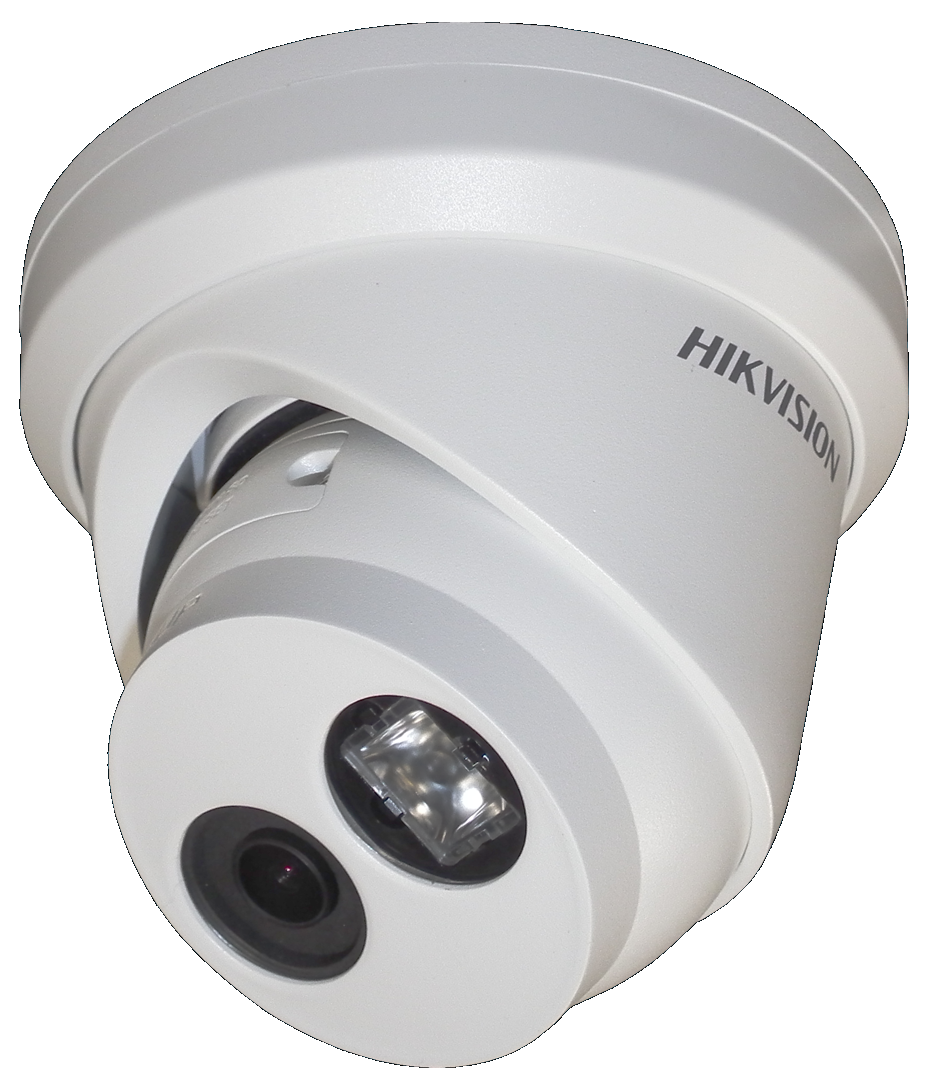

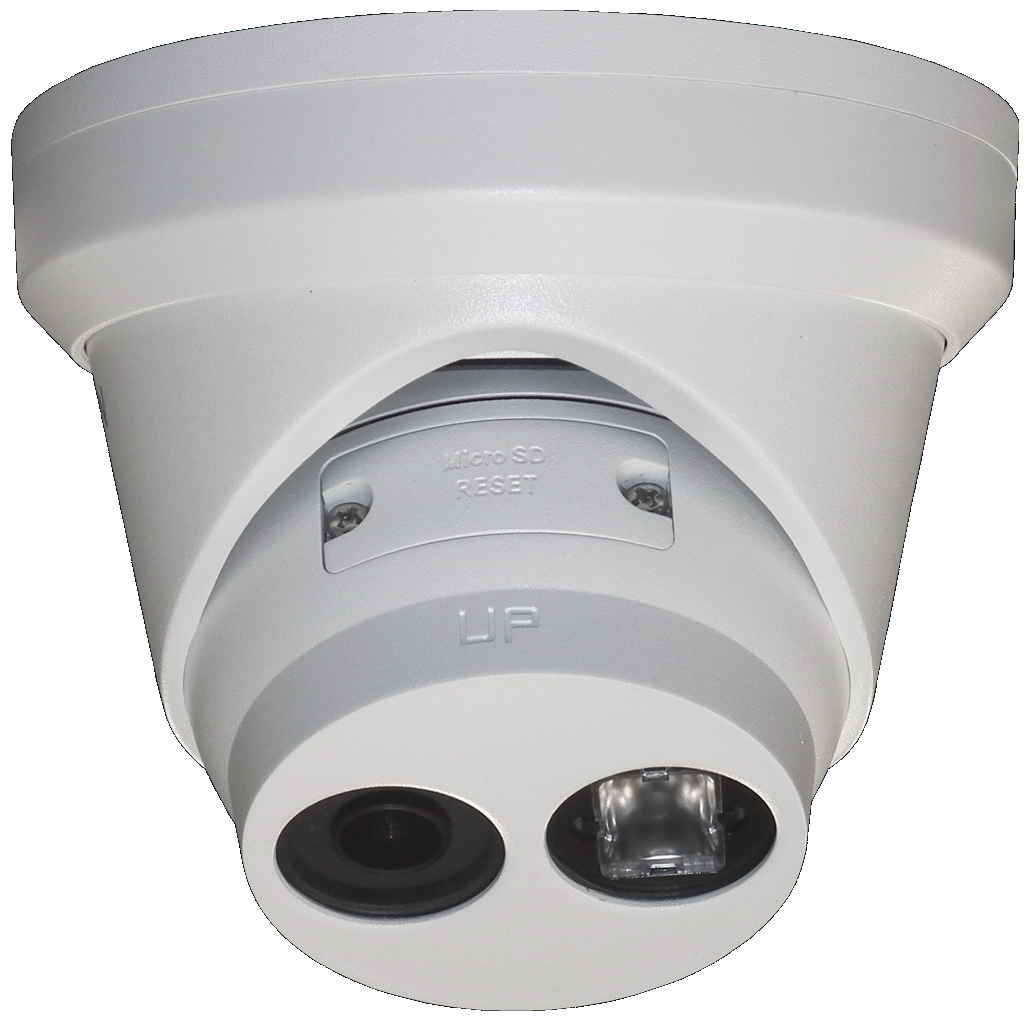

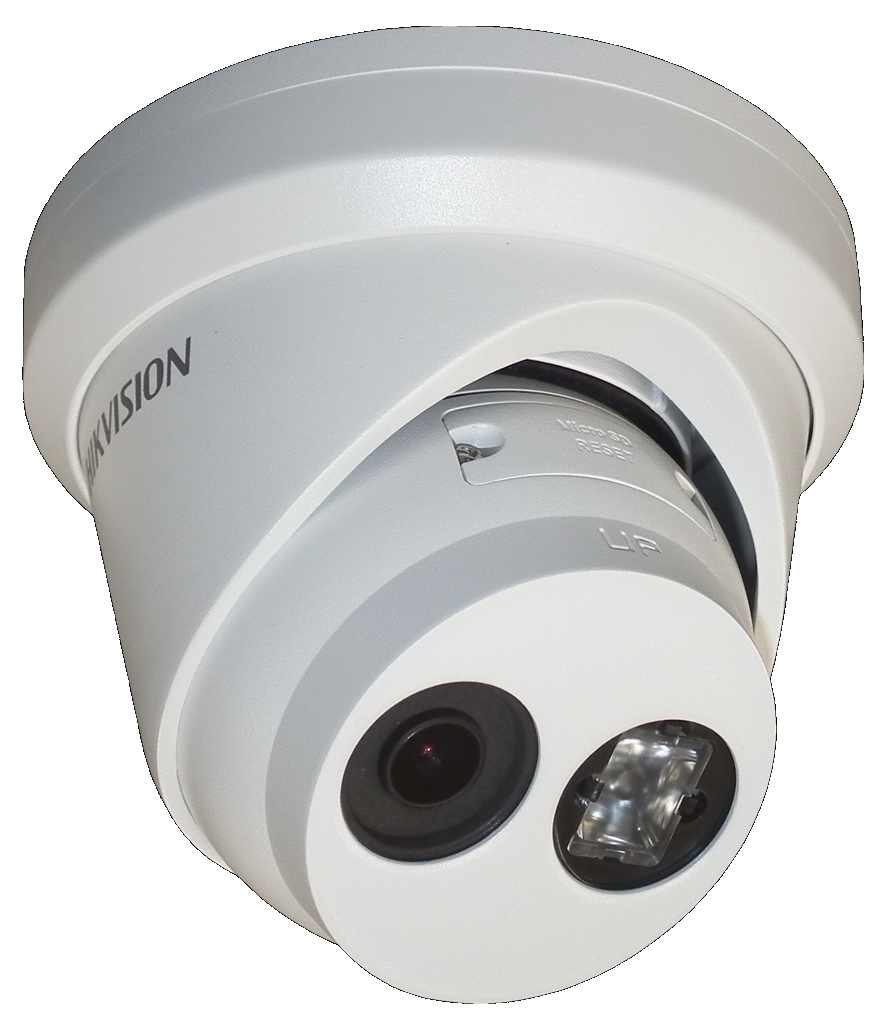

Kamera IP Hikvision w obudowie typu turrent, rozdzielczość 8MP (max. 3840×2160@20kl/s), przetwornik: 1/2.5" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 4mm/F2.0, kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, tryb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. Sklot na kartę do 128GB. Wymiary: śr.127.3×95.49 IP67. Temperatura pracy: -30°C do +60°C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2386G2-I(4mm)

Kod produktu zamiennego: 311310819

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS -2CD 2385FWD-I
8 MP Network Turret Camera
Key Features
 Up to 8 megapixel high resolution
 Max. 3840 x 2160 @20fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on -board storage, up to 128 GB
 3-Axis Adjustment
 IP67



Specification
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 10 2°
4 mm, horizontal field of view: 79 °
6 mm, horizontal field of view: 50°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 23°
Lens Mount M12
Iris F2.0
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Supports
H.265 Type Main Profile
H.265+ Supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20fps ( 3840 x 2160), 25fps (2560 x 1920, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20fps ( 3840 x 2160), 30fps (2560 x 1920, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage , NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection , Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI













General Function
One -key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask,
Watermark, IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
On -board Storage Built -in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre -defined virtual line, up to 1 p re-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre -defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre -defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre -defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 6.5 W
PoE(802.3af, 42.5 – 57V, class 3), 8.5 W
IR Range Up to 30 m
Protection Level IP6 7
Dimensions
Camera: Φ 127.3 x 95.9 mm (5.01″ x 3.78 ″)
Package: 15 0 x 15 0 x 14 1 mm (5.91 ″ x 5.9 1″ x 5.5 5″)
Weight Camera: 620 g (1.37 lb.)
Available Models
DS -2CD2 385FWD-I

Dimensions





DS -1273ZJ-130-TRL
Wall Mount
DS -1275ZJ
Vertical Pole Mount
DS -1276ZJ
Corner Mount


DS -1280ZJ-M
Junction Box
DS -1281ZJ-M
Inclined Ceiling Mount




Accessories
050404201 701 22
