DS-2CD2385FWD-I(2.8mm)(B)(Black)

Dostępność: 0
Cena: 1 381,00 zł 1381.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311309500

Opis

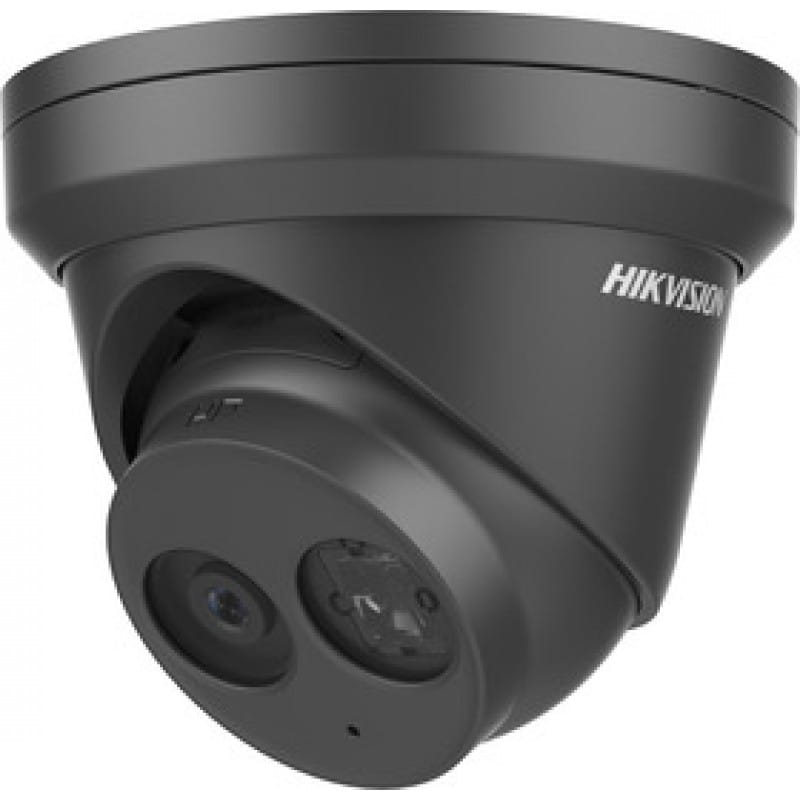

Kamera IP Hikvision w obudowie typu turret, rozdzielczość 8MP (max. 3840x2160@20kl/s), przetwornik: 1/2.5" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F2.0, kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, tryb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. slot na kartę do 128GB. Wymiary: śr.127.3x95.49 IP67. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2385FWD-I(B)
8 MP IR Fixed Turret Network Camera
Key Features
 Up to 8 megapixel high resolution
 Max. 3840 x 2160 @20fps
 2.8 mm/4 mm/6 mm fixed lens, optional
 H.265, H.265+, H.264+, H.264
 120dB WDR
 12 VDC & PoE (802.3af, class 3)
 IR range: Up to 30 m
 Support on-board storage, up to 128 GB
 IP67
 BLC/3D DNR/ROI/HLC
 Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux
@(F1.6, AGC ON)




Specification
Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Lens
2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
Lens Mount M16
Aperture F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160), 25 fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160), 30fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser
and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour











General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SVC H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.7 A, max: 7.5 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W
IR Range Up to 30 m
Wavelength 850 nm
Protection Level IP67
Material Camera body: Metal
Dimensions Camera: Φ 138.3 x 125 mm (5.4″ x 4.9″)
Weight
Camera: 725 g (1.6 lb.)
With package: 966 g (2.1 lb.)
Available Model
DS-2CD2385G1-I (2.8/4/6 mm)






Ø 138.3(5.4'')
125(4.9'')
98(3.9'')
Ø 128(5'')
3-Ø 4.6(0.2'')


Unit: mm





DS-1273ZJ-140
Wall Mount
DS-1271ZJ-140
Pendant Mount
DS-1280ZJ-DM21
Junction Box




Accessories
Dimensions
05058020181210
