DS-2CD2363G0-I(6mm)

Dostępność: 0
Cena: 846,00 zł 846.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311302008

Opis

Kamera IP 1/2.9" Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Color: 0.01 lux@(F1.2, AGC ON), 0 lux with IR; 20fps(3072×2048, 3072×1728), 25fps/30fps (2560×1440, 1920×1080); 3 VCA functions; 3 streams; 3D DNR; ICR; EXIR, up to 30m; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud service...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

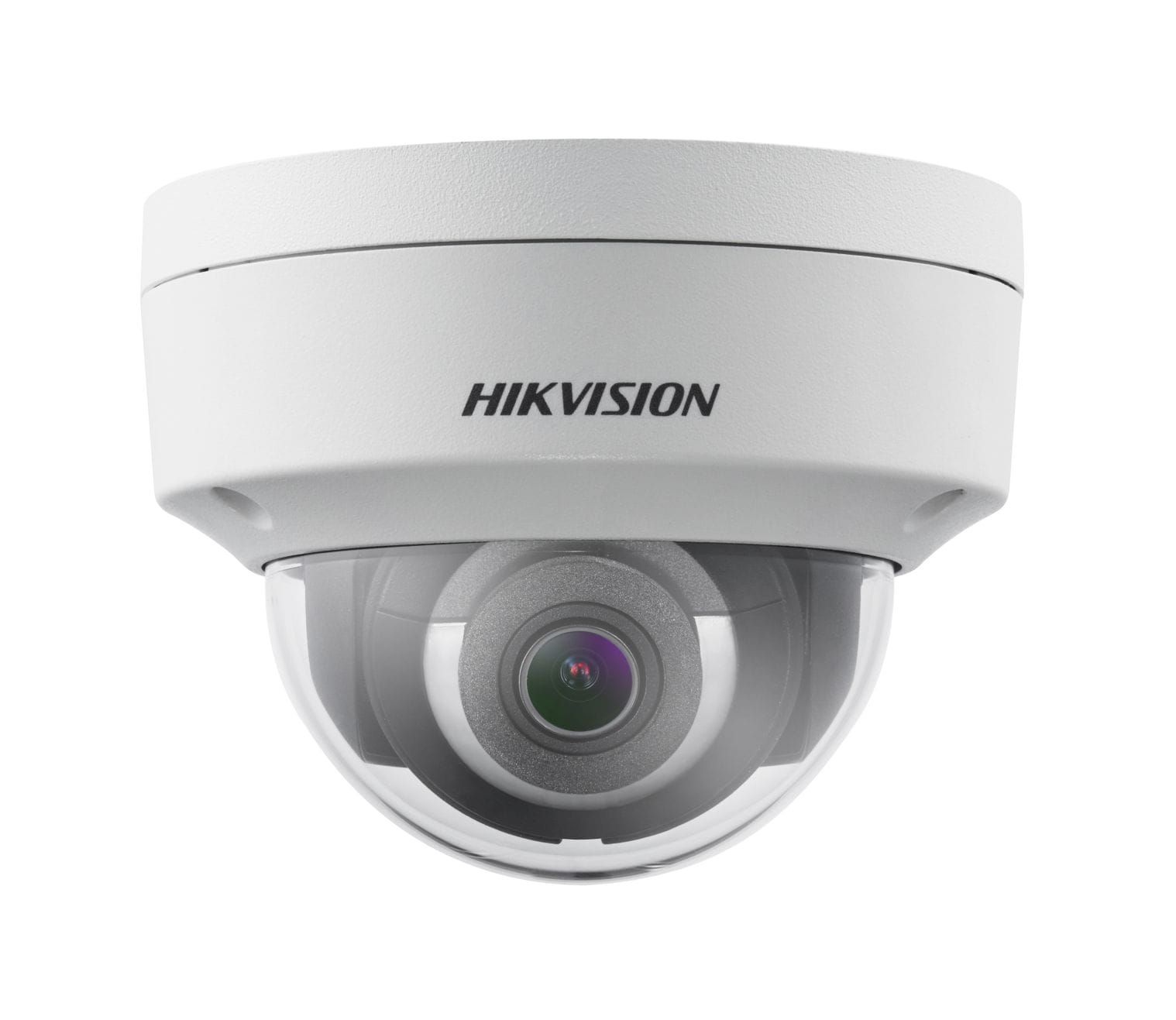

DS-2CD2363G0-I
6 MP IR Fixed Turret Network Camera
* BLC/3D DNR/ROI
* IP67
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

* 1/2.9" Progressive Scan CMOS
* 3072 x 2048@20 fps
* 2.8/4/6/8 mm fixed lens
* Color: 0.01 lux @(F1.2, AGC ON), 0.028
lux @(F2.0, AGC ON), 0 lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR


Key Features




Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length 2.8/4/6/8 mm
Aperture F2.0
Focus Auto
FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)












Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5mm coaxial power plug
PoE(802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 6.0W
PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5W
Protection Level IP67
Material Metal
Dimensions
Camera: Φ 127.3 x 95.9 mm (5″ x 3. 8″)
Package: 150 x 150 x 141 mm (5.9″ x 5.9″ x 5.6″)
Weight Camera: 620 g (1.4 lb.)
Available Model:
DS-2CD2363G0-I(2.8/4/6/8 mm)




Φ127.3(5" )
Φ84.4(3.3" )
95.9 (3.8" )
97.3 (3.8" )
8
4.
3

(
3
.
3
"

)
3-Φ4.8(0.2" )
Unit: mm



DS-1273ZJ-130-TRL
Wall Mount
1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount


DS-1280ZJ-M
Junction Box
DS-1281ZJ-M
Inclined Ceiling Mount
DS-1280ZJ-DM8
Junction Box




Accessories
Dimensions
05050320171209
