DS-2CD2342WD-I(2.8mm)

Dostępność: 0
Cena: 840,00 zł 840.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300807999

Opis

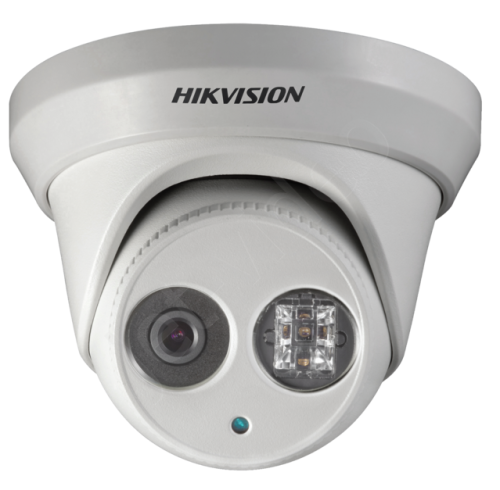

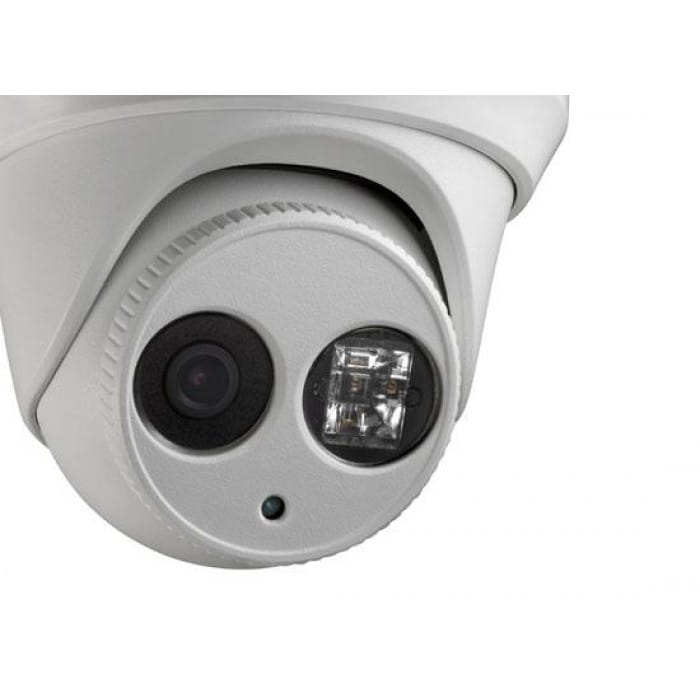

Kamera IP Hikvision w obudowie turret, rozdzielczość 4MP (max. 2688x1520@20kl/s; 1920x1080@30kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, diody typu EXIR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8/F2.0, kompresja: H.264+/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP67, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, 3-osiowa regulacja położenia. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2342WD-I
4MP WDR EXIR Turret Network Camera

 Up to 4 megapixel high resolution
 Full HD1080p video
 Dual video streams
 2.8mm/4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 Backlight Compensation
 Support on-board storage, up to 64GB

 DC12V & PoE
 Support H.264+
 High performance EXIR LED
 Up to 30m IR range
 IP66 weather-proof protection
 3-axis adjustment
 Dual video streams
 Mobile Monitoring via EZVIZ P2P or iVMS-4500


Camera Accessories
Wall Mount
DS-1273ZJ-130-TRL

Junction Box
DS-1280ZJ-M

Inclined Ceiling Mount
DS-1281ZJ-M
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ






Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 2688x1520
Frame Rate
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network
disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port


DS-2CD2342WD-I
4MP WDR EXIR Turret
Network Camera




General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
Max. 9W with pan and tilt
IR Range Approx. 30 meters
Ingress Protection IP66
Dimensions Φ127x97.5 (5.0” x 3.8”)
Weight 670g (1.5 lbs)
Order Models
DS-2CD2342WD-I


DS-2CD2342WD-I
4MP WDR EXIR Turret
Network Camera

Dimensions
Unit: mm
