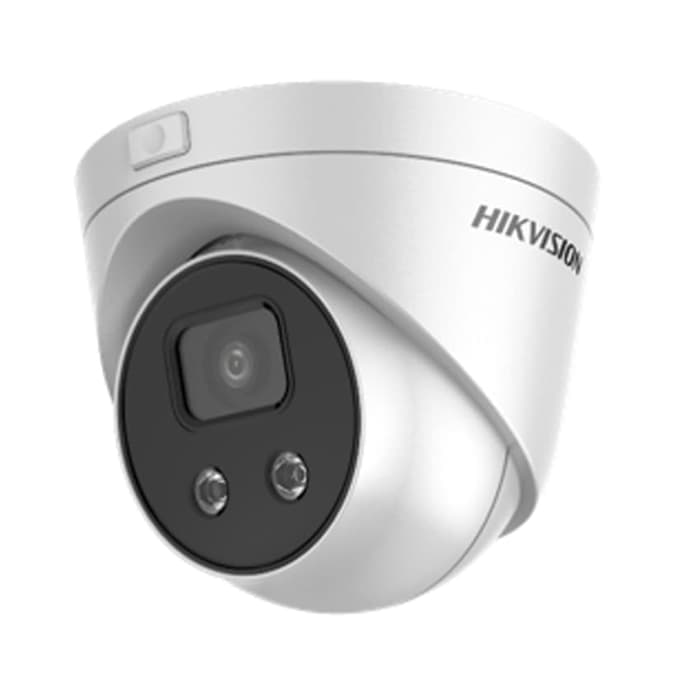

DS-2CD2326G2-I(2.8mm)

Kamera IP Turret 2MP AcuSense, posiadająca przetwornik: 1/2.8" Progressive Scan CMOS, Powered by Darkfighter Kolor: 0.002 Lux @ (F1.4, AGC ON); Migawka 1/3 s - 1/100,000 s; ICR, wolna migawka, WDR 120 dB; Obiektyw: 2.8 mm, HFOV 107st., VFOV 57st., DFOV 129st.przesłona: F1.4; Zasięg IR do 50m, długość fali 850nm, ; Rozdzielczość dla głównego strumienia: 50Hz: 25fps (1920 x 1080, 1280 x 720), 60Hz: 30fps (1920 x 1080, 1280 x 720); Kompresja wideo dla głównego strumienia H.265/H.264; Trzy strumienie; CBR/VBR, SVC, ROI; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Protokoły: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS; Poprawa obrazu: BLC, HLC, 3D DNR; Ustawienia obrazu: Tryb korytarzowy, saturacja, jasność, kontrast, ostrość, wzmocnienie, balans bieli; Wbudowany slot na kartę pamięci 256 GB; 1 RJ45 10M/100M self-adaptive Ethernet port; Podstawowe zdarzenia: detekcja ruchu, sabotaż, wyjątki ( rozłączenie sieci, konflikt adresów IP, błędne logowanie , full HDD, error HDD) nagła zmiana sceny; Zdarzenia inteligentne ( algorytm deep learning): przechwytywanie twarzy, detekcja przekroczenia linii, detekcja intruza, detekcja wejścia/wyjścia z obszaru; Warunki uruchomienia i eksploatacji: -30 st.C do 60 st.C; Zasilanie: 12 VDC +/- 25%, ochrona przed odwrotną polaryzacją, PoE: 802.3af, class 3; Pobór mocy: 12 VDC, 0.4 A, max. 4.8 W, PoE: (802.3af, 36 V - 57 V), 0.17 A - 0.1 A, max. 5.8 W; Wymiary: śr.138.3 x 126.3 mm (5.4" x 5.0"); Waga 770 g (1.7 lb.); IP67...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2326G2-I(2.8mm)(C)

Kod produktu zamiennego: 311315156

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2326G2-I
2 MP IR Fixed Turret Network Camera

Key Features
 Max. 1920 x 1080 @ 25fps
 2.8 mm/4 mm/6 mm fixed lens
 H.265, H.264
 120dB WDR
 False alarm filter by target classification
 Powered by Darkfighter


 12 VDC & PoE (802.3af, class 3)
 IR range: Up to 50 m
 Support on-board storage, up to 128 GB
 IP67
 BLC/3D DNR/ROI
 Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @
(F1.6, AGC ON)



Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Aperture F1.6
FOV
2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°
4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°
6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°
Lens Mount M12
Auto-Iris No
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 70°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ No
H.265 Type Main Profile
H.265+ No
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 576, 640 x 480, 352 x 288)
Image Enhancement BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI








Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SVC H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exit detection,
false alarm filter by target classification
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.6 A, max: 7 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 8.5 W
IR Range Up to 50 m
Wavelength 850 nm
Protection Level IP67
Material Camera body: metal, bottom base: plastic
Dimensions Camera: Φ130 x 105 mm (Φ5.1″ x 4.1″)
Weight
Camera: 500 g (1.1 lb.)
With package: 780 g (1.7 lb.)
Available Models
DS-2CD2326G2-I (2.8/4/6 mm)





108
.
4
mm
(
4
.
3
"
）







DS-1273ZJ-130-TRL
Wall mount
DS-1271ZJ-130-TRL
Pendant mount
DS-1281ZJ-M
Inclined ceiling mount


Dimensions

Accessories

05056120181011
