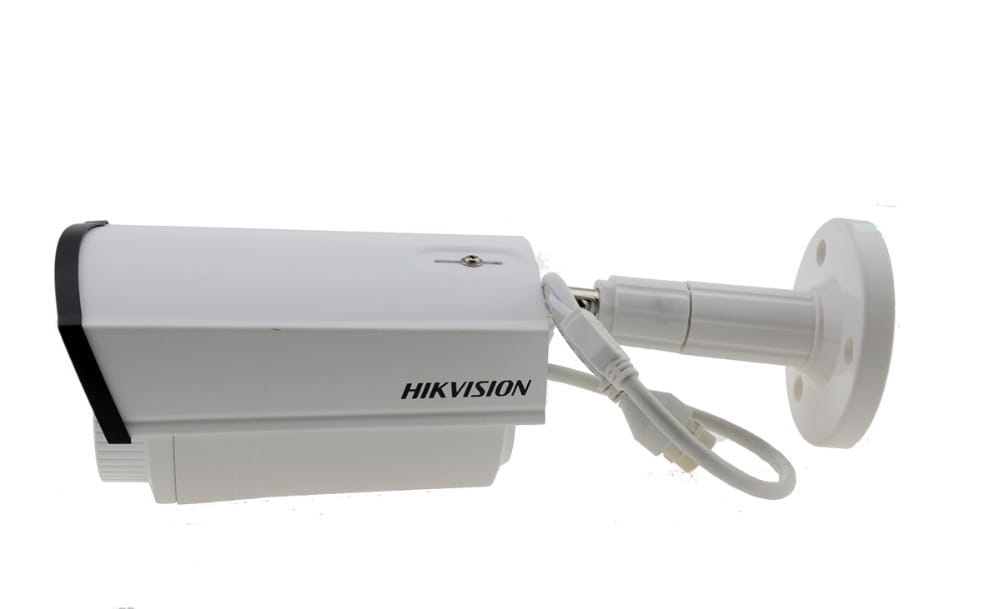

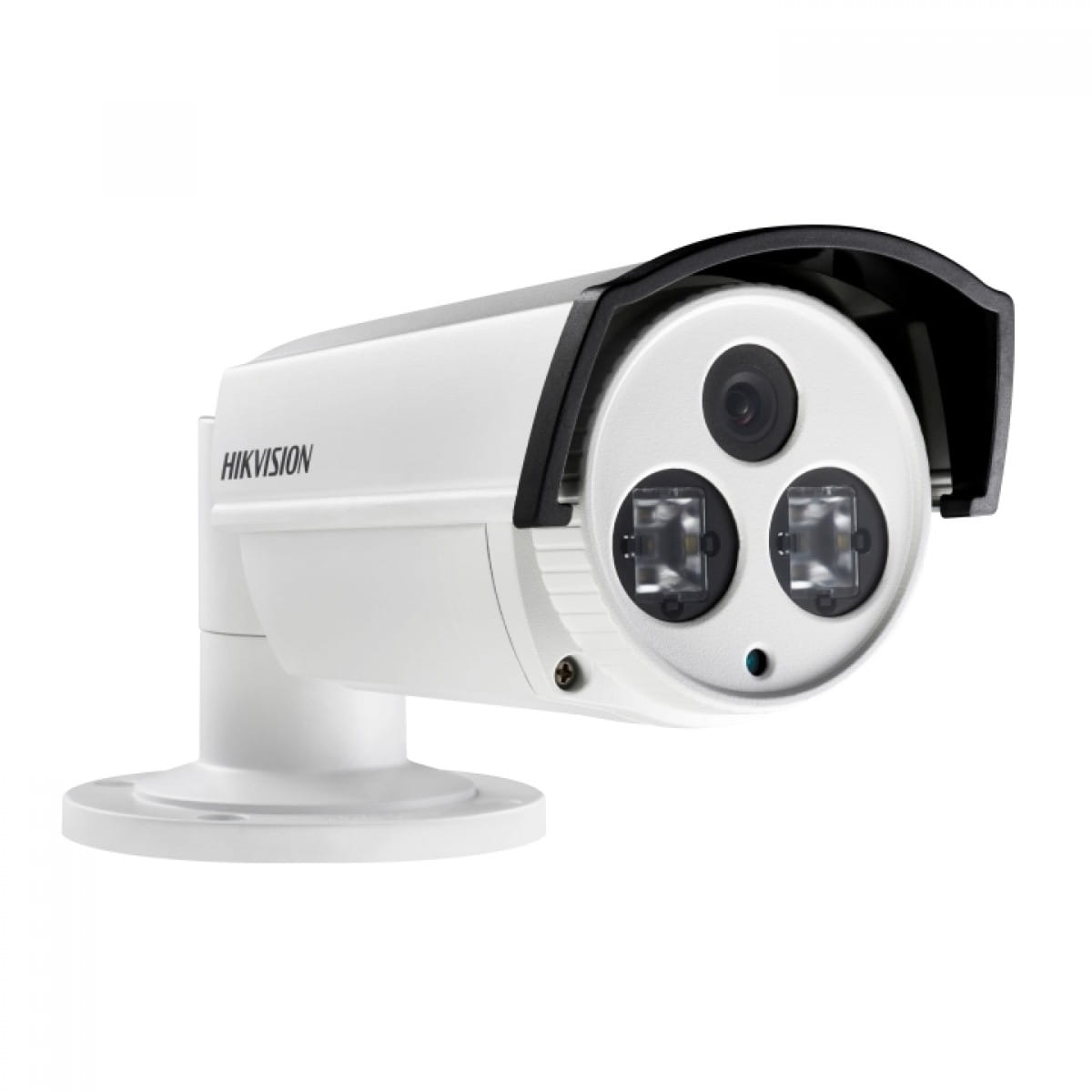

DS-2CD2232-I5(12mm)

Dostępność: 0
Cena: 977,00 zł 977.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300702252

Opis

Kamera IP typu bullet, IP66, oświetlacz EXIR 50m, 3.0M-20 kl./s, WDR, PoE, 12mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Accessories
Key features
Dimensions
Available models

www.hikvision.com

DS-2CD2212-I5(1.3MP)/DS-2CD2232-I5(3MP)
EXIR Bullet Network Camera
• 1.3MP / 3MP high resolution
• HD real-time video
• DWDR & 3D DNR
• EXIR illuminators: up to 50m
• IP66
• PoE
• Bracket included

105mm(4.13")

104.8mm(4.13"
)

263.1mm(10.36" )
DS-2CD2212-I5, DS-2CD2232-I5
1/3”
CMOS

Dual Stream

H.264

Po E

Scan

BL C

DS-2CD2212-I5 DS-2CD2232-I5
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.01 lux @F1.2, AGC ON, 0 lux with IR 0.07 lux @F1.2, AGC ON, 0 lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens
4mm@ F2.0 (6mm, 12mm optional) 4mm@ F2.0 (6mm, 12mm optional)
Angle of view: 73.1°(4mm), 46°(6mm), 22°(12mm)
2048 x 1536: Angle of view: 70°(4mm),43.3°(6mm),
20.6°(12mm)
1920 x 1080: Angle of view: 79°(4mm), 49°(6mm),
23.2°(12mm)
Lens mount M12
Day & night IR cut filter with auto switch
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Compression Standard
Video compression H.264 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Image Resolution 1280 x 960 2048 x 1536
Frame rate
50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720), 25
fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720), 30
fps (704 x 576),
30 fps (640 x 480)
50Hz: 20fps (2048 x 1536), 25fps (1920 x 1080),
25fps (1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080),
30fps (1280 x 720)
Image settings
Rotate mode,Saturation, brightness, contrast, sharpeness adjustable through client software or web
browser
Backlight compensation Yes, zone optional
ROI Yes, up to 4 configurable areas
Network
Network storage NAS
Alarm trigger Motion detection, Dynamic analysis, Tampering alarm
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility ONVIF, PSIA, CGII, ISAPI
General functionalities User authentication, watermark
Interface
Communication interface 1 RJ45 10 M / 100 M Ethernet interface
General
Operating conditions -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)
Power consumption Max. 7 W (Max. 9 W with IR cut filter on)
Weather proof rating IP66
EXIR range Approx. 50 meters
Dimension 105x104.8x263.1mm (4.13” x 4.13” x 10.38”)
Weight 700g (1.5 lbs)

DS-1275ZJ
Vertical pole mount
DS-1260ZJ
Junction box
