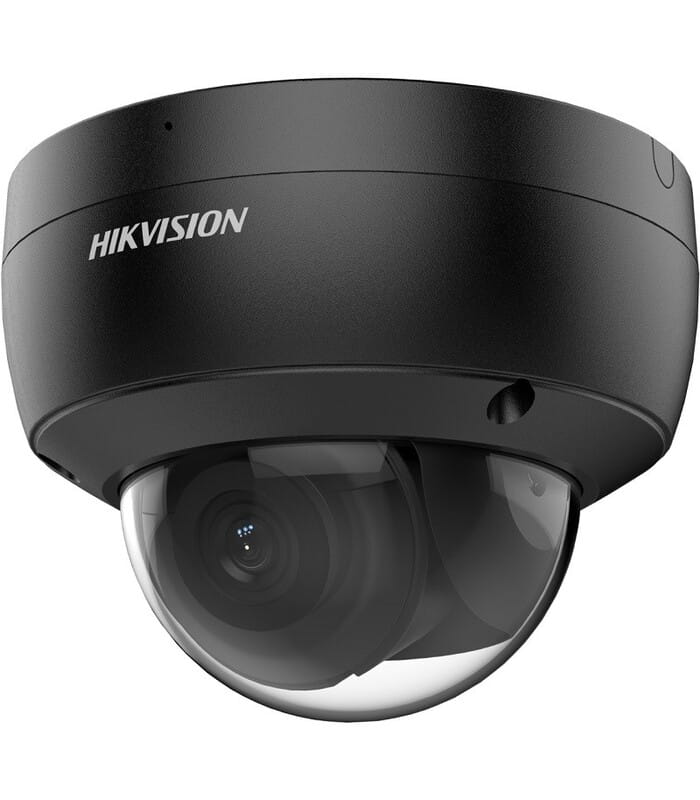

DS-2CD2186G2-ISU(2.8mm)(C)(BLACK)

Kamera IP kopułowa w kolorze czarnym 8MP, AcuSence, technologia powered-by-DarkFighter, 1/3" Progressive Scan CMOS; min. oświetlenie: Kolor: 0.003 Lux @ (F1.6, AGC ON), Cz/B: 0 Lux dla IR, WDR 120dB, Obiektyw 2.8 mm, HFOV 111°, VFOV 59°, DFOV 131°; Zasięg IR do 30m, dodatkowy oświetlacz smart, max. Rozdzielczość 3840 × 2160, trzy strumienie, kompresja wideo H.265/H.264/H.265+/H.264+; Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK; Pamięć masowa: slot na kartę MicroSD/SDHC/SDXC (256 GB) , lokalna pamięć, NAS (NFS, SMB/CIFS), (ANR); Obraz: BLC, HLC, 3D DNR, tryb korytarzowy; model z oznaczeniem –SU: 1/1 we/wyj alarmowe, 1/1 we/wyj audio; wbudowany mikrofon; Zdarzenia podstawowe, zdarzenia smart, detekcja twarzy, ochrona perymetryczna; Temp pracy -30 °C do 60 °C; Zasilanie: 12 VDC ± 25%,, PoE: 802.3af, Class 3; Wymiary: Ø121.4 mm × 92.2 mm; Waga: 590 g, IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2186G2-I(SU)/BLACK
8 MP AcuSense Fixed Dome Network Camera















Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human or vehicle target classificaon
alarms to front- and back-end devices. The system can
greatly reduce false alarms generated by targets other than
humans or vehicles, vastly improving alarm efficiency and
effecveness.

n High quality imaging with 8 MP resoluon
n Excellent low-light performance via
powered-by-DarkFighter technology
n Efficient H.265+ compression technology
n Clear imaging against strong back light due to 120 dB true
WDR technology
n Focusing on human and vehicle classificaon based on
deep learning
n Water and dust resistant (IP67) and vandal resistant (IK10)
n -U: Built-in microphone for real-me audio security
n -S: Audio and alarm interface available






n Specificaon
Camera
Image Sensor 1/1.8ʺ Progressive Scan CMOS
Shuer Speed 1/3 s to 1/100,000 s
Min. Illuminaon Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
Slow Shuer Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, lt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type 2.8 mm, 4 mm
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vercal FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
Lens Mount M12
Aperture F1.6
DORI
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 99 m, O: 39 m, R: 19 m, I: 9 m
Illuminator
Smart Supplement Light Yes
IR Wavelength 850 nm
IR Range Up to 30 m
Video
Max. Resoluon 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160, 3072 x 1728)
25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160, 3072 x 1728)
30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream



Audio
Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to
192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protecon, complicated password, HTTPS encrypon, IP address filter,
Security Audit Log, basic and digest authencaon for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authencaon for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Sengs
Rotate, mirror, privacy mask, saturaon, brightness, contrast, sharpness, gain, white
balance adjustable by client soware or web browser
Interface
Ethernet Interface 1 RJ45 10M/100M self-adapve Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone -U: Yes
Audio
-S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface
type: non-equilibrium
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω,
interface type: non-equilibrium, mono sound
Alarm -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
Hardware Reset Yes
Event
Basic Event
Moon detecon (human and vehicle), video tampering alarm, excepon (network
disconnected, IP address conflict, illegal login, HDD full, HDD error)
-S: alarm input and output
Smart Event Scene change detecon
Deep Learning Funcon
Face Capture Yes



Perimeter Protecon
Line crossing detecon, intrusion detecon, region entrance detecon, region exing
detecon
General
Power
12 VDC ± 25%
PoE: 802.3af, Class 3
Camera Material Metal
Camera Dimension Ø121.4 mm x 92.2 mm (Ø4.8" x 3.6")
Package Dimension 150 x 150 x 141 mm (5.9" x 5.9" x5.6")
Camera Weight Approx. 590 g (1.3 lb.)
With Package Weight Approx. 850 g (1.9 lb.)
Storage Condions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operang
Condions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Linkage Method
Upload to FTP/memory card/NAS, nofy surveillance center, trigger record, trigger
capture, send email
Power Consumpon and Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Power Interface Ø5.5 mm coaxial power plug
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croaan, Slovenian, Serbian, Turkish, Korean, Tradional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Funcon An-flicker, heartbeat, password reset via e-mail, pixel counter
Soware Reset Yes
Approval
Class Class B
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016)
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulaon (EC) No 1907/2006)
Protecon IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)




n Available Model
DS-2CD2186G2-I (2.8/4 mm)
DS-2CD2186G2-ISU (2.8/4 mm)



n Dimension


n Accessory
n Oponal
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-DM46
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-120B
Wall Mount
DS-1271ZJ-120
Pendant Mount




DS-1253ZJ-M
Rain Shade
DS-1272ZJ-120
Wall Mount
