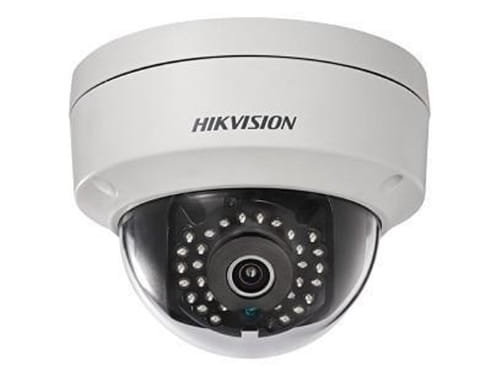

DS-2CD2152F-IS(4mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 5MP (max. 2560×1920@20kl/s; 2048×1536@30kl/s), przetwornik: 1/3” Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 4mm/F2.0, kompresja: H.264+/H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, IP66, IK10, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, 3-osiowa regulacja położenia, slot na kartę pamięci: 128 GB, wej./wyj. alarmowe: 1/1, wej./wyj. audio: 1/1. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:



Available models:
DS -2CD2152F-IS


DS -2CD2152F -IS
5 MP Network Dome Camera



• Up to 5 MP Resolution
• Full 1080p @ 30 fps
• 4 mm / 6 mm Fixed Lens Options
• H.264+, H.264, MJPEG
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction
• 3-axis adjustment
• Up to 100 ft (30 m) IR Range
• MicroSD card slot supports up to 128 GB
• Audio and Alarm Inputs and Outputs
• IP67 and IK10 Protection
• 12 VDC and PoE (802.3af)








Dimensions





Hikvision’s DS-2CD2152F-IS 5 MP Network Dome
Camera is a versatile solution for all of your security
needs. It feature s a powerful 5 MP lens that captures
images with a resolution of 2560 x 1920 at up to 30 fps.
The Network Dome Camera provides IP67 and IK 10
protection, and is equipped with security-enhancing
audio and alarm support.




Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St -Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909 -895 -0400 • Toll Free in USA: +1 -866 -200 -6690 • E -Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications are subject to change without notice. 0510 17 NA 


Specifications


Camera
Image Sensor 1/3" Progressive Scan CMOS
Minimum Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 4 mm, 6 mm @ F2.0
Lens Mount M12
Day and Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Pan and Tilt rotation Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0 to 355°
Compression Standard
Video Compression H.264 / MJPEG / H.264+
H.264 Type Main Profile
Video Bit Rate 256 Kbps to 16 Mbps
Dual streams Supported
Maximum Resolution 2560 x 1920
Maximum Frame Rate 20 fps (2560 x 1920), 30 fps (2048 x 1536, 1920 x 1080, 1280 x 720)
Sub Stream 30 fps (352 x 240, 640 x 480)
Others Saturation, brightness, contrast adjustable by client software or web browser, Mirror, BLC, ROI, dual stream, anti-flicker,
privacy mask
Network
Network Storage NAS (Support NFS, SMB / CIFS), ANR
Detection Motion detection, tampering alarm, intrusion detection, line crossing detection
Alarm Trigger HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
anonymous access
Standard ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Alarm interface 1x alarm I/O;
Audio interface 1x audio I/O;
Reset Yes
General
Operating Conditions -22° F to 140° F (-30° C to 60° C), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Maximum 5 W
IR Range 100 ft (30 m)
Protection Level IP67, IK10
Dimensions Φ 4.4" x 3.2" (111 mm x 82 mm)
Weight 1.1 lbs (500 g)
Accessories


Angled base
AB110


Wall mount
WM110

Pendant cap
PC110


Conduit base
CB110


Sun and rain shield
SRS



Sun and rain shield
medium
SRSM

DS-2CD2152F-IS
