DS-2CD2145FWD-I(2.8mm)

Dostępność: 0
Cena: 951,00 zł 951.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311303838

Opis

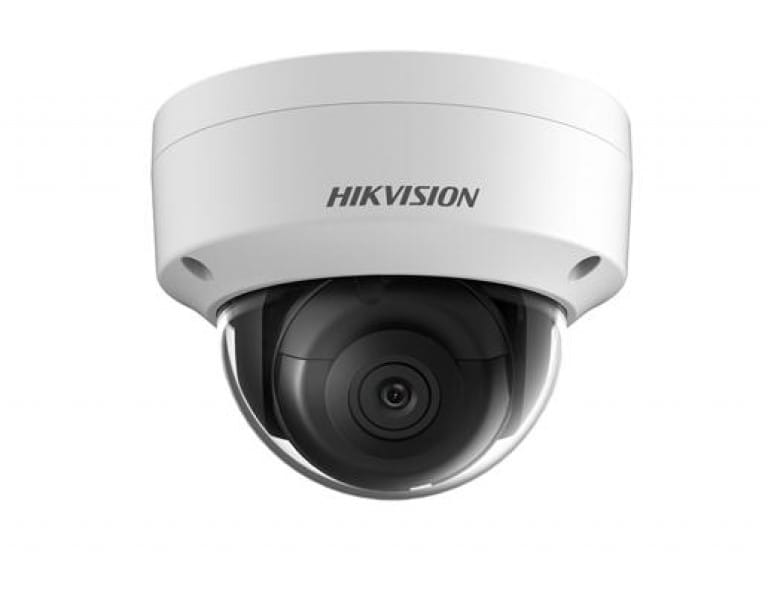

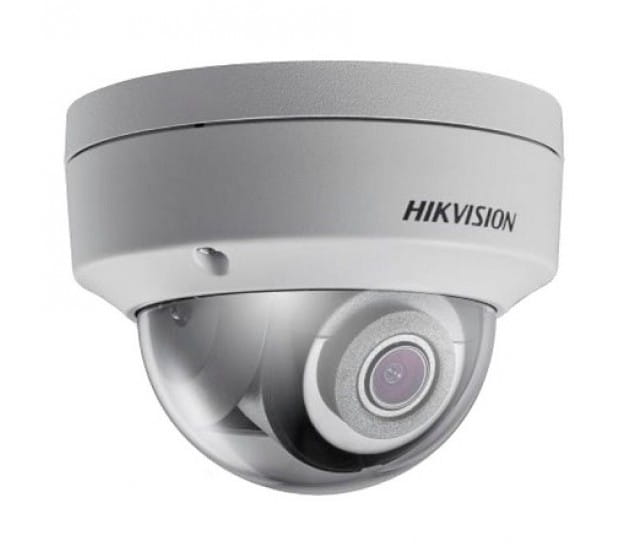

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 4MP (max. 2048x1536@30kl/s), przetwornik: 1/2.7" Progressive Scan CMOS, czułość: 0.009Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F1.6, kąt widzenia 98st., kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, trzyb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. Sklot na kartę do 128GB. Wymiary: śr.111x82.4. IP67, IK10. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2146G2-I(2.8mm)

Kod produktu zamiennego: 311312239

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2145FWD-I(S)
4 MP IR Fixed Dome Network Camera
* BLC/3D DNR/ROI/HLC
* IP67
* Built-in microSD/SDHC/SDXC card slot, up
to 128 GB
* Color: 0.008 lux @(F1.2, AGC ON), 0 lux
with IR
Color: 0.014 lux @(F1.6, AGC ON), 0 lux
with IR

* 1/2.5" Progressive Scan CMOS
* 2688 x 1520@30 fps
* 2.8, 4, 6, 8, 12 mm fixed lens
* H.265+, H.265, H.264+, H.264
* 4 Behavior analyses
* 120dB WDR
* Powered by Darkfighter
* IR range: up to 30 m


Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IR
Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length 2.8, 4, 6, 8, 12 mm
Aperture F1.6
Focus Fixed
FOV
2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S model) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate (-S model) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2688 x 1520
Main Stream 50Hz: 25 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)




60Hz: 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client
software or web browser
Target Cropping No
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model) 1 input, 1 output, mono sound
Alarm (-S model) 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio (-S model)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial plug power
PoE(802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 5.5 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
Protection Level IP67, IK10
Material Camera body: metal, bubble: plastic
Dimensions
Camera: Φ 111 x 82.4 mm (Φ 4.4" x 3.2")
Package: 134 x 134 x 108 mm (5.3" x 5.3" x 4.3")
Weight Camera: 500 g (1.1 lb.)
Available Models:
DS-2CD2145FWD-I (2.8/4/6/8/12 mm), DS-2CD2145FWD-IS (2.8/4/6/8/12 mm)





Unit: mm(inch)




Inclined ceiling mount
DS-1259ZJ
Wall mount
DS-1272ZJ-110
Wall mount + Junction Box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110


Junction Box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ



Accessories
Dimensions
