DS-2CD2142FWD-IW(6mm)

Kamera 1/3" Progressive CMOS, ICR, 0lux with IR, 2688×1520:25fps(P)/30fps(N), 6mm/F2.0 lens, H.264/MJPEG, dual-stream, IP66, DC12V & PoE, 120dB WDR, 3D DNR, BLC, Built-in Micro SD/SDHC/SDXC slot, up to 128GB, 3-axis adjustment, IR range: up to 30m, IK08, Built-in Wi-Fi...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2142FWD-I (W)(S)

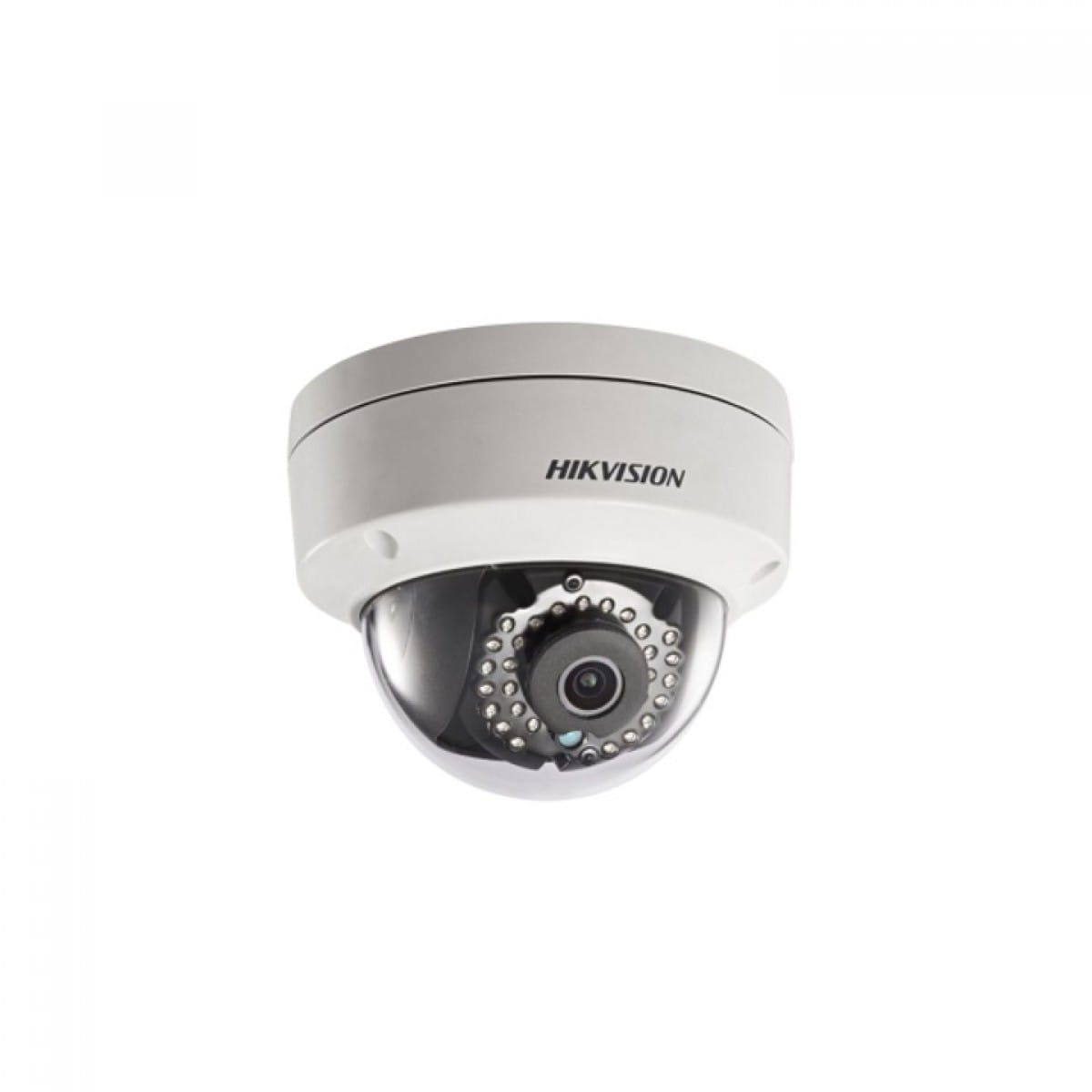

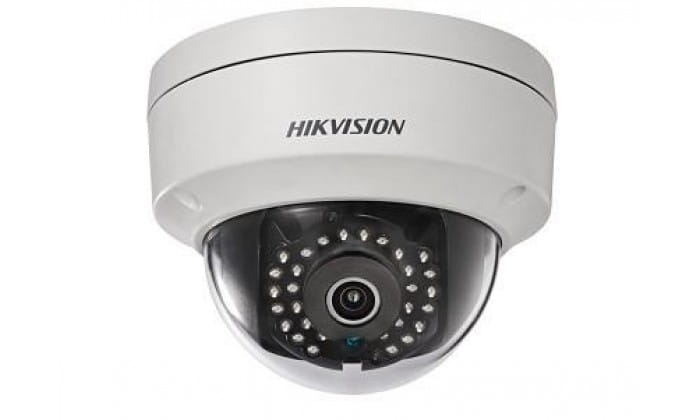

4MP WDR Fixed Dome Network Camera

 Up to 4 megapixel high resolution
 Dual stream
 2.8mm/4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 3-axis adjustment
 Support on-board storage, up to 128GB

 DC12V & PoE
 Support H.264+

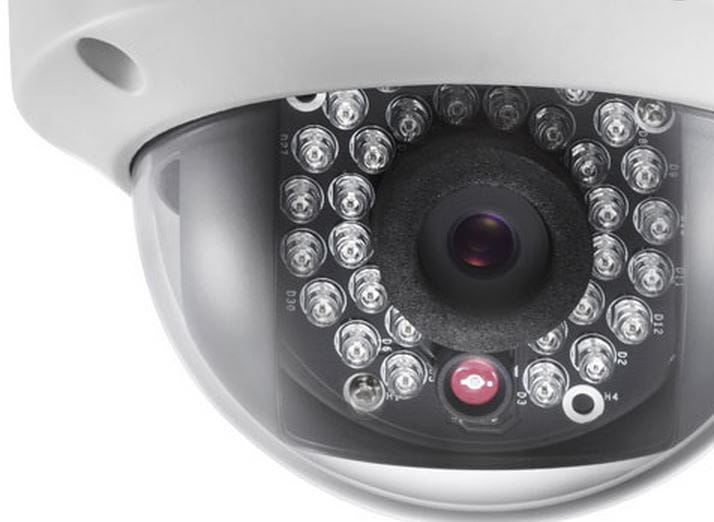

 Up to 30m IR range
 IP67 weather-proof protection
 IK10
 -S: Audio/Alarm IO
 -W: Built-in Wi-Fi
 Mobile Monitoring via EZVIZ P2P or iVMS-4500


Camera Accessories

Inclined ceiling mount
DS-1259ZJ

Wall mount
DS-1272ZJ-110
Wall mount + Junction Box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110B
Junction Box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ





Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
P&T rotation Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 2688x1520
Max Frame Rate
50Hz: Main stream:20fps(2688x1520),25fps(1920x1080), 25fps(1280x720), Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:20fps(2688x1520),30fps(1920x1080),30fps(1280x720),Sub stream: 30fps(352x240),30fps(640x360)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface 1x audio I/O *only for –S models
Reset Yes


DS-2CD2142FWD-I (W)(S)
4MP WDR Fixed Dome
Network Camera




Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af Class3)
Power Consumption Max. 5W
Max. 9W with pan and tilt
IR Range Approx. 30 meters
Material
DS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal
DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic
Ingress Protection IP67
Impact Protection IK10
Dimensions Φ111 x 82 (4.4” x 3.2”)
Weight 500g (1.1lbs)
Order Models
DS-2CD2142FWD-I, DS-2CD2142FWD-IS, DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS
-S: Audio/Alarm IO, -W: Built-in Wi-Fi

DS-2CD2142FWD-I (W)(S)
4MP WDR Fixed Dome
Network Camera

Dimensions
