DS-2CD2135FWD-IS(2.8mm)

Dostępność: 0
Cena: 893,00 zł 893.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300820570

Opis

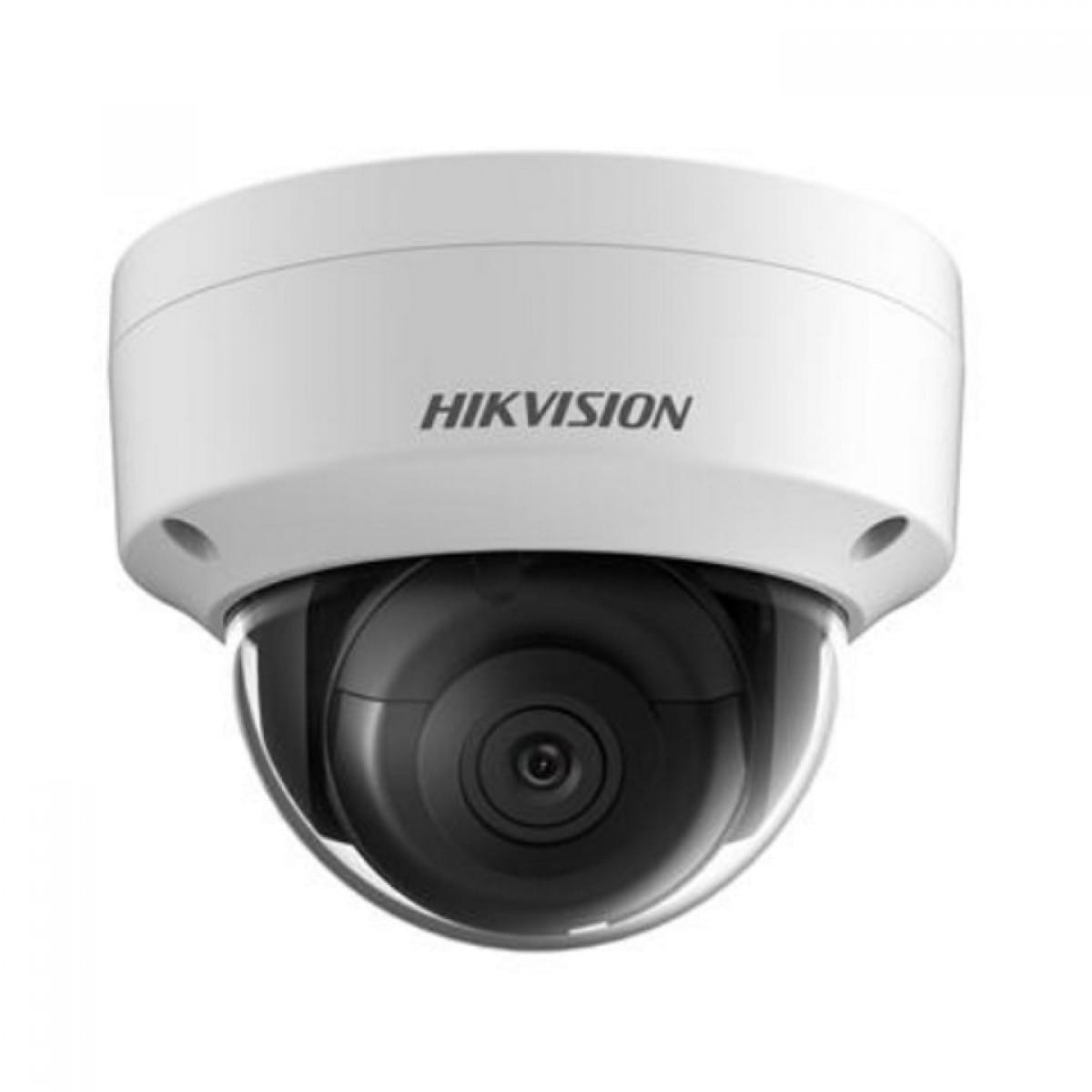

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 3MP (max. 2048x1536@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.005Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F1.6, kąt widzenia 98st., kompresja wide: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie. Kodowanie audio: G.711/G.722.1/G.726/MP2L2. WDR: 120dB, 3D DNR, BLC, trzyb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. Sklot na kartę do 128GB. Wej/wyj audio: 1/1. Wej/wyj alarmowe: 1/1. Wymiary: śr.111x82.4. IP67, IK10. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2135FWD-I(S)
3 MP Ultra-Low Light Network Dome Camera
Key Features
 Up to 3 megapixel high resolution
 Max. 2048 x 1536 @30fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 Ultra-low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 Audio I/O, Alarm I/O, optional
 IP67, IK10
 3-axis adjustment





Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 98°
4 mm, horizontal field of view: 78.7°
6 mm, horizontal field of view: 48°
8 mm, horizontal field of view: 37°
12 mm, horizontal field of view: 23°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Resolution 2048 x 1536
Main Stream
50Hz: 25fps (2048 x 1536, 1920 x 1080, 1280x720)
60Hz: 30fps (2048 x 1536, 1920 x 1080, 1280x720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Auto/Scheduled/Alarm Triggered (-S)
Audio (-S)
Environment Noise Filtering Support
Audio I/O Support, mono soundtrack
Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz








Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-S) 1 audio input (line in), 1 audio output interface
Alarm (-S) 1 alarm input, 1 alarm output
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 W
PoE(802.3af, class 3), 7 W
IR Range Up to 30 m
Protection Level IP67, IK10
Dimensions
Camera: Φ 111 x 82.4 mm (Φ 4.4″ x 3.2″)
Package: 134 x 134 x 108 mm (5.27″ x 5.27″ x 4.25″)
Weight Camera: 500 g (1.1 lb.)
Available Models
DS-2CD2135FWD-I, DS-2CD2135FWD-IS
With –S model: supports 1 audio input, 1 audio output, 1 alarm input, 1 alarm output.





Unit: mm



Inclined ceiling mount
DS-1259ZJ
Wall mount
DS-1272ZJ-110
Wall mount + junction box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110


Junction box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical pole mount
DS-1275ZJ
Rain-proof cap
DS-1250ZJ




Dimensions
Accessories
05050320171023
