DS-2CD2126G2-I(2.8mm)

Dostępność: 0
Cena: 887,00 zł 887.00
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311312238

Opis

Kamera kopułkowa 2MP AcuSense, posiadająca przetwornik: 1/2.8" Progressive Scan CMOS, Powered by Darkfighter Kolor: 0.002 Lux @ (F1.4, AGC ON); Migawka 1/3 s - 1/100,000 s; ICR, wolna migawka, WDR 120 dB; Obiektyw: 2.8 mm, HFOV 107st., VFOV 57st., DFOV 129st.przesłona: F1.4; Zasięg IR do 30m, długość fali 850nm, ; Rozdzielczość dla głównego strumienia: 50Hz: 25fps (1920 x 1080, 1280 x 720), 60Hz: 30fps (1920 x 1080, 1280 x 720); Kompresja wideo dla głównego strumienia H.265/H.264; Trzy strumienie; CBR/VBR, SVC, ROI; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Protokoły: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS; Poprawa obrazu: BLC, HLC, 3D DNR; Ustawienia obrazu: Tryb korytarzowy, saturacja, jasność, kontrast, ostrość, wzmocnienie, balans bieli; Wbudowany slot na kartę pamięci 256 GB; 1 RJ45 10M/100M self-adaptive Ethernet port; Podstawowe zdarzenia: detekcja ruchu, sabotaż, wyjątki ( rozłączenie sieci, konflikt adresów IP, błędne logowanie , full HDD, error HDD) nagła zmiana sceny; Zdarzenia inteligentne ( algorytm deep learning): przechwytywanie twarzy, detekcja przekroczenia linii, detekcja intruza, detekcja wejścia/wyjścia z obszaru; Warunki uruchomienia i eksploatacji: -30 st.C do 60 st.C; Zasilanie: 12 VDC +/- 25%, ochrona przed odwrotną polaryzacją, PoE: 802.3af, class 3; Pobór mocy: 12 VDC, 0.4 A, max. 4.8 W, PoE: (802.3af, 36 V - 57 V), 0.2 A - 0.1 A, max. 6 W; Wymiary: śr.121 x 92 mm (4.8" x 3.6"); Waga 585 g (1.3 lb.); IP67; IK10...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

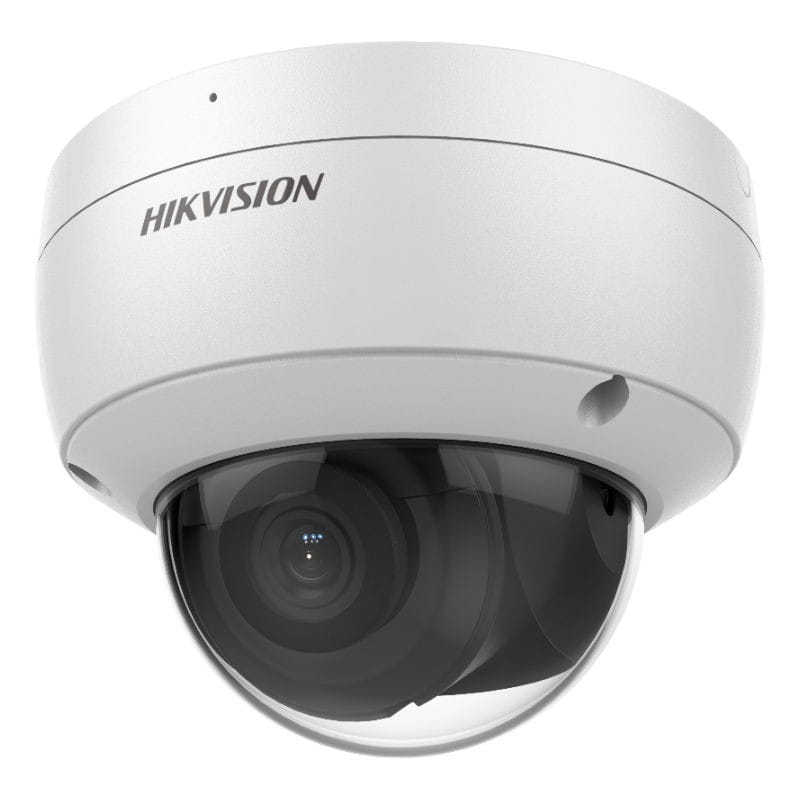

DS-2CD2126G2-I(SU)
AcuSense 2 MP IR Fixed Dome Network Camera












 High quality imaging with 2 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology

 Efficient H.265+ compression technology
 Clear imaging against strong back light due to 120 dB true
WDR technology

 False alarm reduction through human and vehicle target
classification based on deep learning

 -ISU: Water and dust resistant (IP66) and vandal-resistant
(IK10); -I: Water and dust resistant (IP67) and
vandal-resistant (IK10)

 -ISU: built-in microphone for real-time auto security
 3D DNR technology delivers clean and sharp images

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms
to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or
vehicles, vastly improving alarm efficiency and effectiveness.







 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Wide Dynamic Range 120 dB
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON)
Day & Night ICR Cut
Shutter Speed 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Slow Shutter Yes
P/N P/N
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
Aperture F1.4
Lens Mount M12
Aperture Type Fixed
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Supplement Light IR
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 360 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed regions for each stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz



Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Alarm -ISU: 1 alarm input, 1 alarm output (max. 12 VDC @30 mA)
Audio
-ISU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core
terminal block, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type:
non-equilibrium
On-board Storage Built-in micro SD slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture Yes
Premier Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)



Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Power Consumption and
Current
12 VDC, 0.4 A, max. 4.8 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6 W
Power Interface Ø5.5 mm coaxial power plug
Material Metal upper cover and base
Camera Dimension Ø121 x 92 mm (4.8" x 3.6")
Package Dimension 150 x 150 x 141 mm (5.9" x 5.9" x 5.6")
Camera Weight 585 g (1.3 lb.)
Linkage Method
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
strobe light, audible warning
*Note: External device is required.
With Package Weight 836 g (1.8 lb.)
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter
Software Reset Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
-ISU: Ingression protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
-I: Ingression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)








 Available Model
DS-2CD2126G2-I(2.8 mm, 4 mm, 6 mm)
DS-2CD2126G2-ISU(2.8 mm, 4 mm, 6 mm)



 Dimension



 Accessory



DS-1271ZJ-120 DS-1272ZJ-120B DS-1272ZJ-120 DS-1276ZJ-SUS
Pendent Mount Wall Mount Wall Mount Corner Mount



DS-1275ZJ-SUS DS-1253ZJ-M DS-1280ZJ-DM46
Vertical Pole Mount
Rain Shade for Outdoor
Dome Camera
Junction Box



















050513020200102

Dane techniczne

Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP66
Odporność mechaniczna IK10
Rozdzielczość wizyjna 2MPIX
Typ kamery Dome, Kopułkowa
Oświetlacz podczerwieni ± 30 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Stałoogniskowy
Stała ogniskowa ± 2.8 mm
Slot na karty Tak
