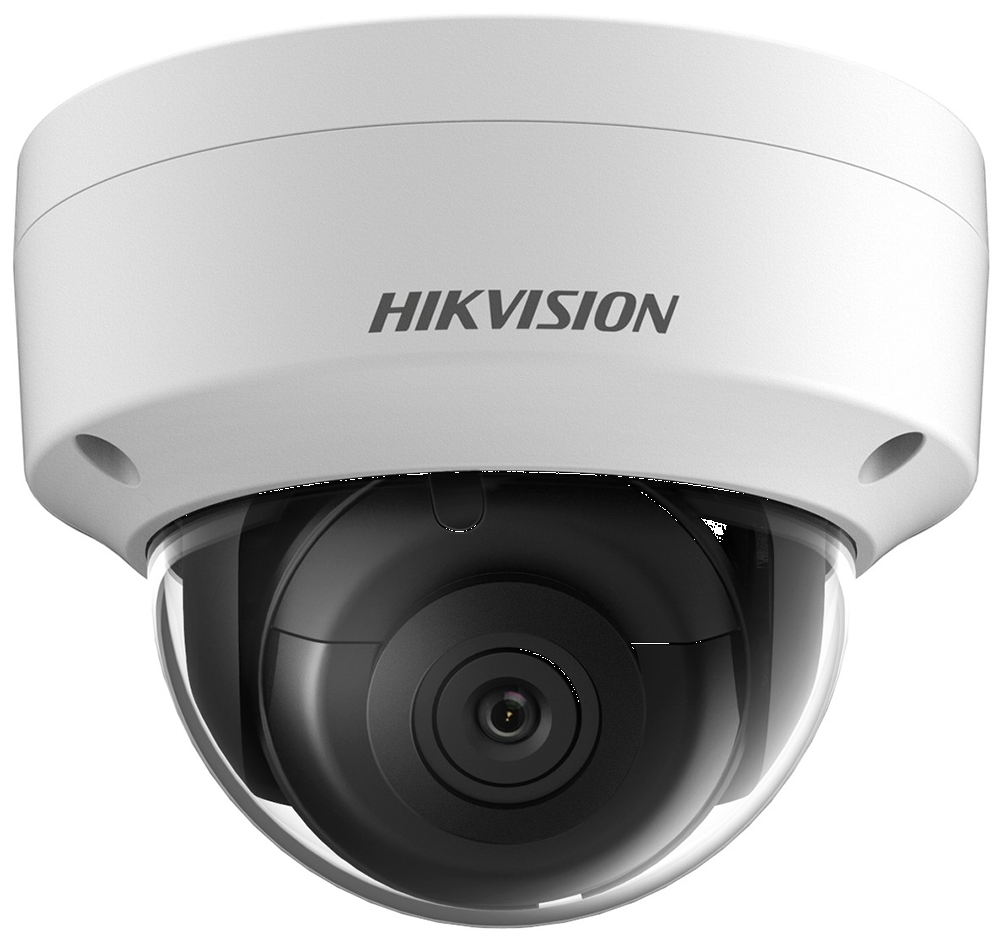

DS-2CD2123G0-IS(6mm)

Kamera IP 1/2.8 Progressive Scan CMOS, H.265+/H.265/H.264+/H.264/MJPEG, Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR, 25fps/30fps(1920x1080), 3 VCA functions, 3 streams, 3D DNR, ICR, EXIR 2.0, up to 30m, DC12V&PoE, Built-in micro SD/SDHC/SDXC slot, HIK-Connect cloud service, -S model: Audio/Alarm IO...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2123G0-I(S)
2 MP IR Fixed Dome Network Camera
* BLC/3D DNR/ROI
* IP67, IK10
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
* 3-Axis adjustment
* 1/2.8" Progressive Scan CMOS
* 1920 x 1080@30fps
* 2.8/4/6/8 mm fixed lens
* Color: 0.01 Lux @ (F1.2, AGC ON),
0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* Three streams
* 120dB WDR
* 2 Behavior analyses, and face detection

Key Features




Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal length 2.8/4/6/8 mm
Aperture F2.0
Focus Manual
FOV
2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
8 mm: horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream and sub-stream support
H.265 Type Main Profile
H.265+ Main stream and sub-stream support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)




Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Target Cropping No
Day/Night Switch Auto/Schedule/Triggered by alarm in (-S)
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S) 1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm (-S) 1 input, 1 output (up to 12 VDC, 30 mA), terminal block
Video Output No
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection Level
IP67, IK10
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Metal
Dimensions
Camera: Φ 111 x 82.4 mm (Φ 4.4" x 3.2")
Package: 134 x 134 x 108 mm (5.3" x 5.3" x 4.3")
Weight
Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 820 g (1.8 lb.)
Available Model:
DS-2CD2123G0-I (2.8/4/6/8 mm), DS-2CD2123G0-IS (2.8/4/6/8 mm)




Φ79.1(3.1")
Φ111(4.4")
Φ100.4
(4")
3-Φ5(0.2")
8
2.
4
(
3
.
2
"
)

Unit: mm


Inclined ceiling mount
DS-1259ZJ
Wall mount
DS-1272ZJ-110
Wall mount + Junction Box
DS-1272ZJ-110B
Pendant mount
DS-1271ZJ-110


Junction Box
DS-1280ZJ-DM18
Corner mount
DS-1276ZJ
Vertical Pole mount
DS-1275ZJ
Rain-proof Cap
DS-1250ZJ




Accessories
Dimensions
