DS-2CD2112-I(12mm)

Kamera IP kopułkowa IP66 wandaloodporna IK10, oświetlacz 30m, 1.3M-30 kl./s, WDR, PoE, 12mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

4mm@F2.0, angle of view: 45.3°
Flickerless, heartbeat, mirror, user authentication, video mask, watermark

Key features
Dimensions

Specications

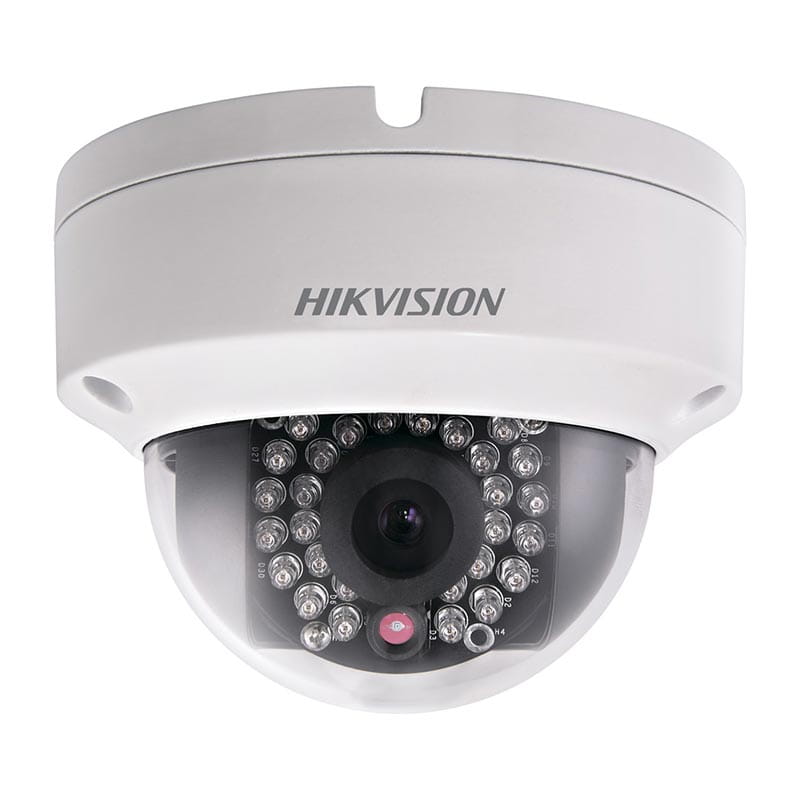

1.3MP Network Mini Dome Camera
t Up to 1.3 megapixel (1280 x 960) resolution
t HD real-time video
t Day / night auto switch
t IP66 ingress protection
t DWDR & 3D DNR
t PoE

DS-2CD2112-(I)
Camera
Image sensor1/3p progressive scan CMOS
Min. illumination
0.01 lux@F1.2, AGC on
0 lux with IR
Shutter time1/25s ~ 1/100,000s
Lens
(2.8mm, 6mm,12mm,optional)
Lens mountM12
Angle adjustmentHorizontal: 0° ~ 355°, vertical: 0° ~ 65°
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Compression standard
Video compression H.264 / MJPEG
H.264 compression proleMain prole
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. image resolution1280 x 960
Frame rate
50Hz: 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps (1280 x 960), 30fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS ( iSCSI optional)
Alarm triggerMotion detection, tampering alarm
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
System compatibilityONVIF, PSIA, CGI
General functionalities
Interface
Communication interface1 RJ45 10M / 100M ethernet port
General
Operating conditions-10°C ~ 60°C (14°zF ~ 140°zF) humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumptionMax. 5W
Ingress protectionIP66
IR range-I: up to 30m
Dimensions 111 x 82 mm
Weight500g
Available models
DS-2CD2112,DS-2CD2112-I
* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

HD Video

CMOS
CMOS
1/3”

IR
IP66

Megapixel
MP Camera
1.3

3D

t IR range: up to 30m
DS-2CD2112-(I)
