DS-2CD2086G2-IU(4mm)

Dostępność: 0
Cena: 1 316,00 zł 1316.00
bez 23.00% VAT i kosztów dostawy
ilość szt.
dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311310286

Opis

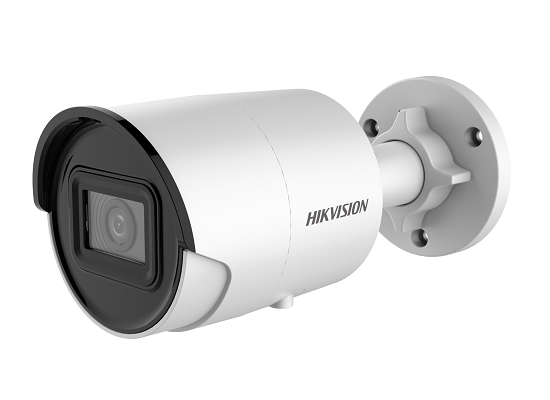

Kamera IP Hikvision typu bullet w metalowej obudowie,rozdzielczość 8MP (max. 3840x2160@20kl/s), przetwornik: 1/2" Progressive Scan CMOS, czułość: 0.014Lux@ F1.6(wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 4mm/F1.6, Kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, , ROI: 1 obszar,Ochrona obwodowa: detekcja przekroczenia linii, detekcja intruza, detekcja wejścia/wyjścia z obszaru, filtrowanie fałszywych alarmów(klasyfikacja obiektów) Podstawowe zdarzenia: detekcja ruchu,sabotaż,wyjątki, detekcja zmiany sceny, Regulacja położenia 3D, przycisk reset, Wbudowany mikrofon, przycisk reset, Slot na kartę do 128GB. Wymiary: śr.70x161.7, Stopień ochrony: IP66, Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2086G2-I(U)
8 MP IR Fixed Bullet Network Camera










● 1/2" Progressive Scan CMOS
● 3840 x 2160 @ 20fps
● 2.8/4/6 mm fixed lens
● 120dB WDR
● Powered by Darkfighter

● H.265+, H.265, H.264+, H.264
● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
● –I model: IP67, -IU model: IP66
● Built-in microphone (Optional)
● Human and vehicle classification alarm based on deep
learning.

AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification
alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than
humans or vehicles, vastly improving alarm efficiency and effectiveness.





Specifications

Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3s to 1/100,000s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
Power-off Memory Yes
Lens
Lens Type & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
Aperture F1.6
Lens Mount M16
Illuminator
IR Range 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20fps (3840 x 2160, 3072 x 1728), 25fps (2688 x 1520,1920 x 1080, 1280 x 720)
60Hz: 20fps (3840 x 2160, 3072 x 1728), 30fps (2688 x 1520,1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Stream Type Main stream/sub-stream/third stream
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for each stream
* When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
Audio(-U)
Environment Noise Filtering Yes



Audio Sampling Rate 8 kHz,16 kHz,32 kHz,44.1 kHz,48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-
320Kbps(MP3)
Audio Type mono sound
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
Network Storage MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day/Night/Auto/Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by
client software or web browser
Interface
Audio(-U) Built-in microphone
On-board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Perimeter Protection
line crossing detection, intrusion detection, region entrance detection, region exiting
detection (Human&Vehicle classification)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
General
Web Client Language
32 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset,
anti-flicker, three streams, heartbeat



Software Reset Yes
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%; PoE: (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W
Power Interface Φ5.5 mm coaxial power plug
Material Metal
Camera Dimension Φ70 x161.7 mm (2.76" x 6.37")
Package Dimension 216 x 121 x 118 mm (8.5" x 4.8" x4.6")
Camera Weight 500 g (1.1 lb.)
With Package Weight 710 g (1.6 lb.)
Approval
Protection
-I model:
Ingress protection: IP67 (IEC 60529-2013)
-IU model:
Ingress protection: IP66 (IEC 60529-2013)
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32:
2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
(IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD2086G2-I (2.8/4/6 mm)
DS-2CD2086G2-IU (2.8/4/6 mm)


05059820190919


Dimension
Unit: mm(Inch)
161.71 (6.37")
89.7(3.53")


Accessory



DS-1280ZJ-XS
Junction Box

Dane techniczne

Rozmiar przetwornika 1/2
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP67
Rozdzielczość wizyjna 8MPIX
Typ kamery Bullet, Tulejowa, Tubowa
Oświetlacz podczerwieni ± 30 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Stałoogniskowy
Stała ogniskowa ± 3.8 mm
Slot na karty Tak
Wbudowany mikrofon Tak
