DS-2CD2085G1-I(2.8mm)(BLACK)

Dostępność: 0
Cena: 1 194,00 zł 1194.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311308630

Opis

Kamera IP 1/2" CMOS z progresywnym wyszukiwaniem; H.265 + / H.265 / H.264 + / H.264 / MJPEG; Technologia Powered by Darkfighter, Kolor: 0.016lux @ (F1.6, AGC ON), 0 luksów z IR; 20 fps (3840 x 2160), 25 fps / 30 fps (3072 x 1728, 2560 x 1440, 2048 x 1536,1920 x 1080); Funkcje VCA; 3 strumienie; 3D DNR; BLC / HLC; ICR; EXIR, do 30 m; DC12V i PoE; Wbudowany slot micro SD / SDHC / SDXC; Usługa chmurowa HIK-Connect...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

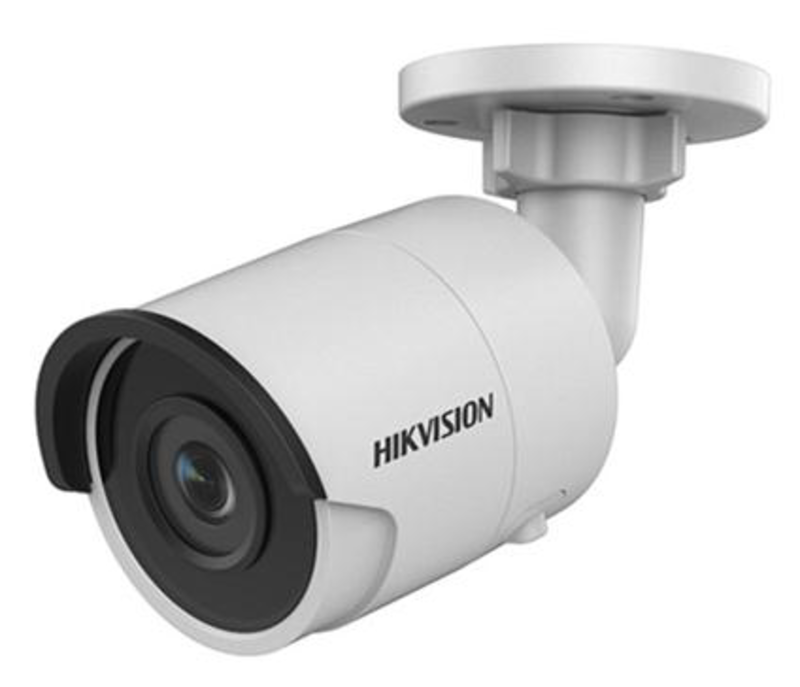

DS-2CD2085G1-I
8 MP IR Fixed Bullet Network Camera
Key Features

 Up to 8 megapixel high resolution
 Max. 3840 x 2160 @20fps
 2.8 mm/4 mm/6 mm fixed lens, optional
 H.265, H.265+, H.264+, H.264
 120dB WDR
 Powered by Darkfighter

 12 VDC & PoE (802.3af, class 3)
 IR range: Up to 30 m
 Support on-board storage, up to 128 GB
 IP67, IK10
 BLC/3D DNR/ROI
 Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @
(F1.6, AGC ON)



Specification
Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Lens
2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
Lens Mount M16
Aperture F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160), 25 fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160), 30fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser
and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

















General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
12 VDC, 0.5 A, max: 6 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
IR Range Up to 30 m
Wavelength 850 nm
Protection Level IP67, IK10
Material Front cover: metal, back cover: metal, sun shield: plastic
Dimensions Camera: 70 x 68 x 171 mm (2.8″ x 2.7″ x 6.7″)
Weight
Camera: 400 g (0.9 lb.)
With package: 700 g (1.5 lb.)
Available Model
DS-2CD2085G1-I (2.8/4/6 mm)





69.85(2.7")
67
.
92
(
2
.
67
")
171.4(6.7")
98.47(3.87")


Unit: mm(inch)




DS-1280ZJ-XS
Junction Box

Accessories
Dimensions
05056120180804
