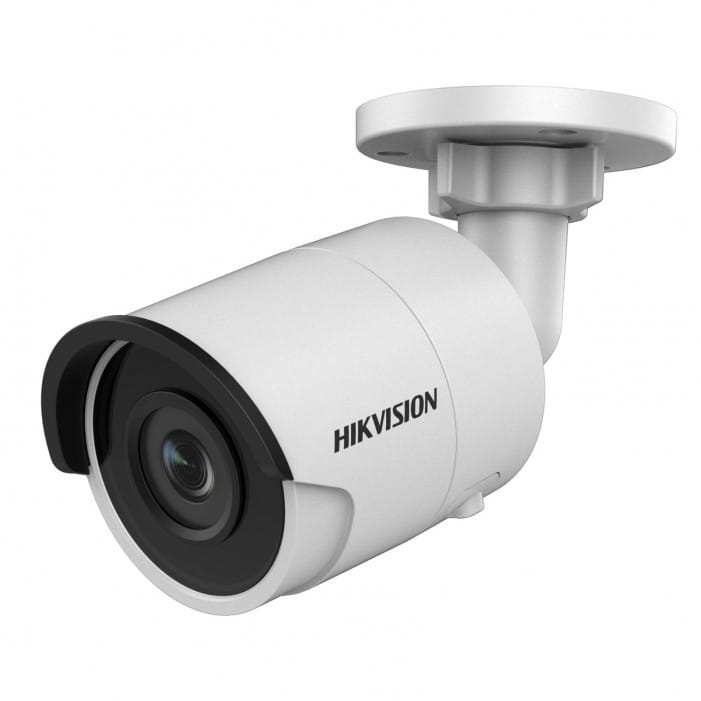

DS-2CD2085FWD-I(2.8mm)(B)(Black)

Kamera IP Hikvision typu Bullet, rozdzielczość 8MP (50 Hz: 20 kl/s; 3840 x 2160), 1/2" Progressive Scan CMOS, czułość: kolor: 0.008 Lux @ F1.2 (wł. AGC), 0.014 Lux @ F1.6 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F1.6, HFOV: 102st., VFOV: 55st., DFOV: 120st., trzy strumienie, kompresja H.265+/H.265/H.264+/H.264/MJPEG, WDR: 120dB, BLC/3D DNR/HLC, IP67, IK10, ROI: 1 obszar. Analityka: detekcja przekroczenia linii, intruza, pozostawienia bagażu, usunięcia przedmiotu, wykrycie twarzy. Funkcje: detekcja ruchu, sabotaż, rozłączenie sieci, konflikt adresów IP, błędne logowanie, błąd HDD, HDD pełny. Ogólne funkcje: reset jednym przyciskiem, ochrona przed migotaniem, odbicie lustrzane, ochrona haseł, maski prywatności, znak wodny, filtr adresów IP,3-osiowa regulacja położenia, slot na kartę pamięci: 128 GB. Temperatura pracy: -30st.C do +60st.C. Zasilanie: 12 VDC/5.5 mm przewód koncentryczny/PoE. Wymiary: 70 x 68 x 171 mm. Waga: 400g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2085FWD-I
8 MP IR Fixed Bullet Network Camera

Key Features
 Up to 8 megapixel high resolution
 Max. 3840 x 2160 @20fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 IP67
 BLC/3D DNR/ROI/HLC
 Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux
@(F2.0, AGC ON), 0 lux with IR



Specification
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6/8/12 mm
Focus Fixed
Lens
2.8 mm, horizontal field of view: 102°
4 mm, horizontal field of view: 79°
6 mm, horizontal field of view: 50°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 23°
Lens Mount M12
Iris F2.0
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment(bracket) Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3840 x 2160
Main Stream
50Hz: 20 fps (3840 x 2160), 25 fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160), 30fps (3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
*Note: When the main stream resolution is 3840 x 2160, max frame rate is 20 fps for all streams.
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error














Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), ISAPI
General Function
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 7W
PoE(802.3af, class 3), 7.5W
IR Range Up to 30 m
Protection Level IP67
Dimensions
Camera: Φ70 x 155.03 mm (Φ2.76″ x 6.1″)
Package: 216 x 121 x 118 mm (8.5″ x 4.76″ x 4.65″)
Weight Camera: 410 g (0.9 lb.)
Available Model
DS-2CD2085FWD-I






155.03(6.10″ )
81.09(3.19″ )
Φ
5
5(
2
.
1
7″

)
Φ
7
0(
2
.
7
6″

)






DS-1280ZJ-XS
Junction Box

Accessories
Dimensions
