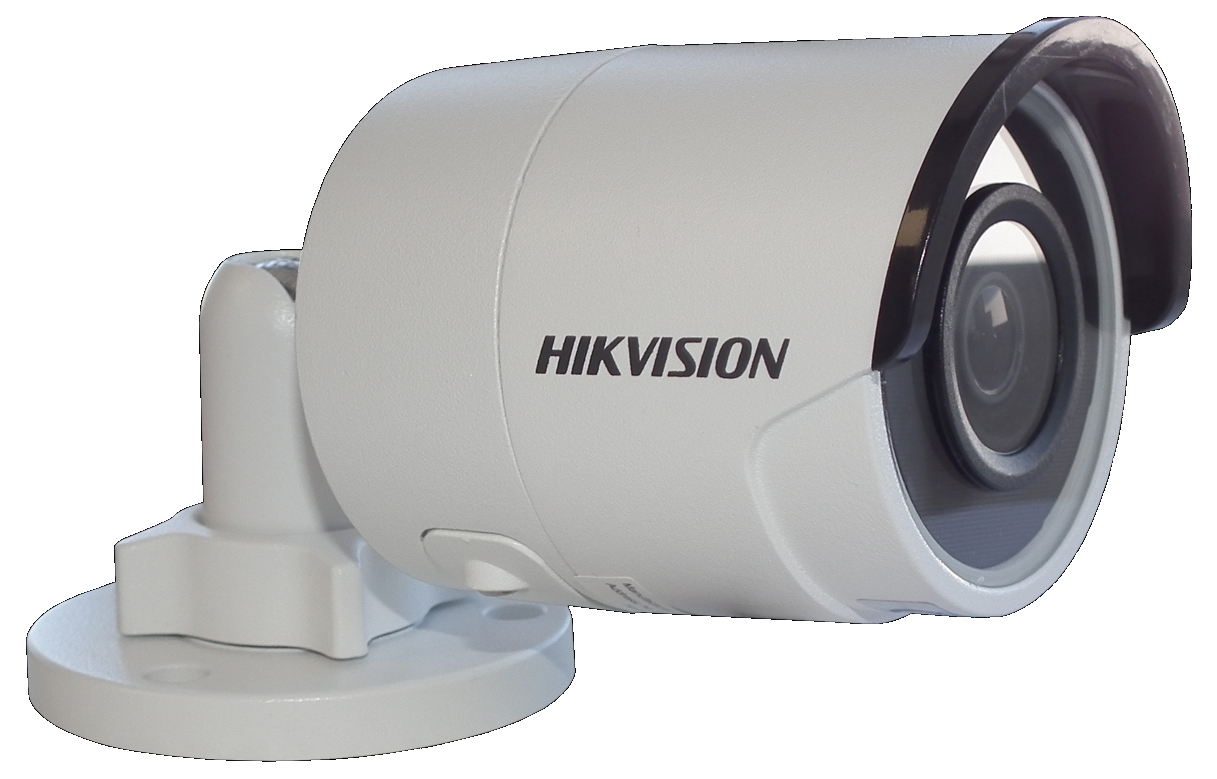

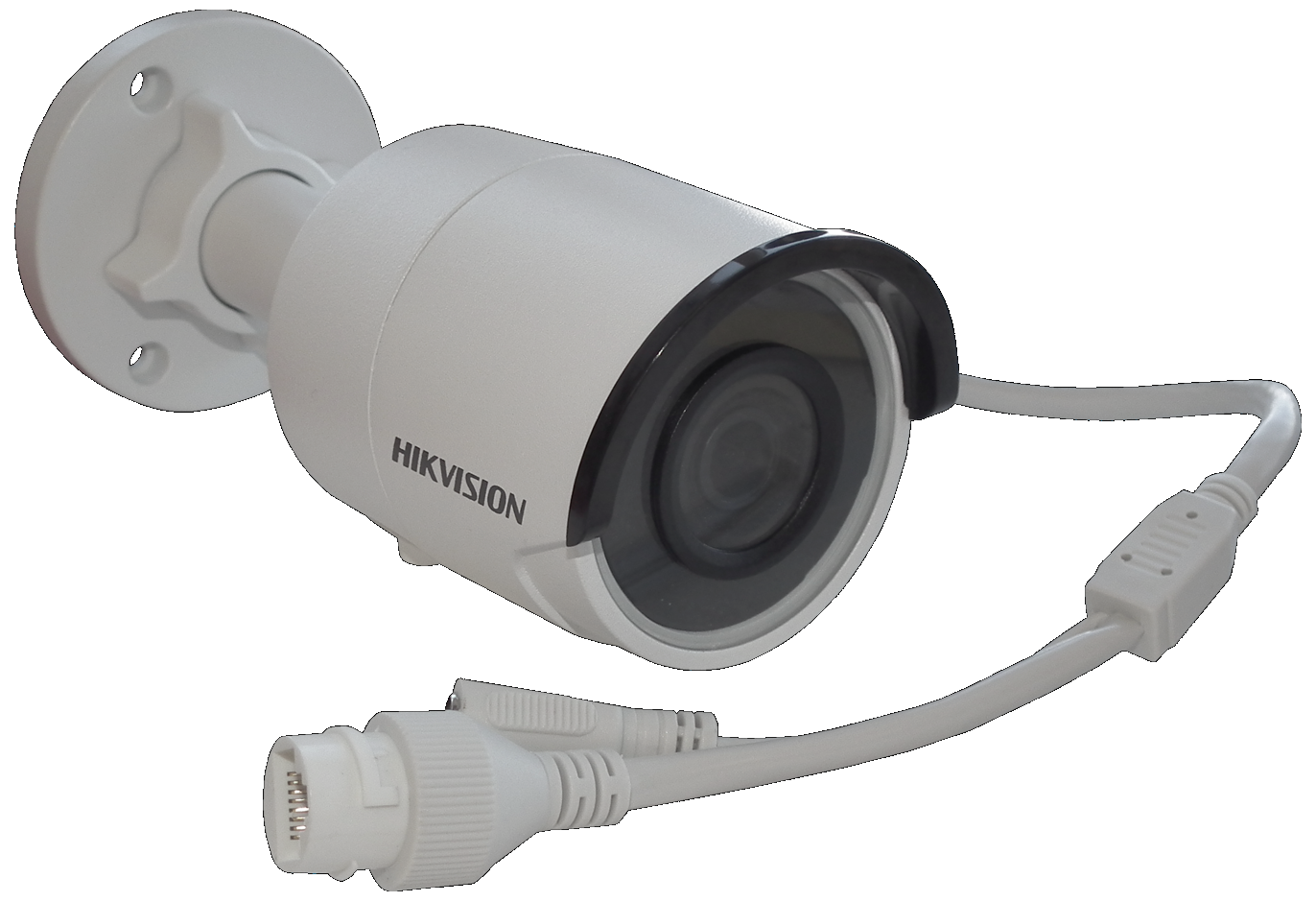

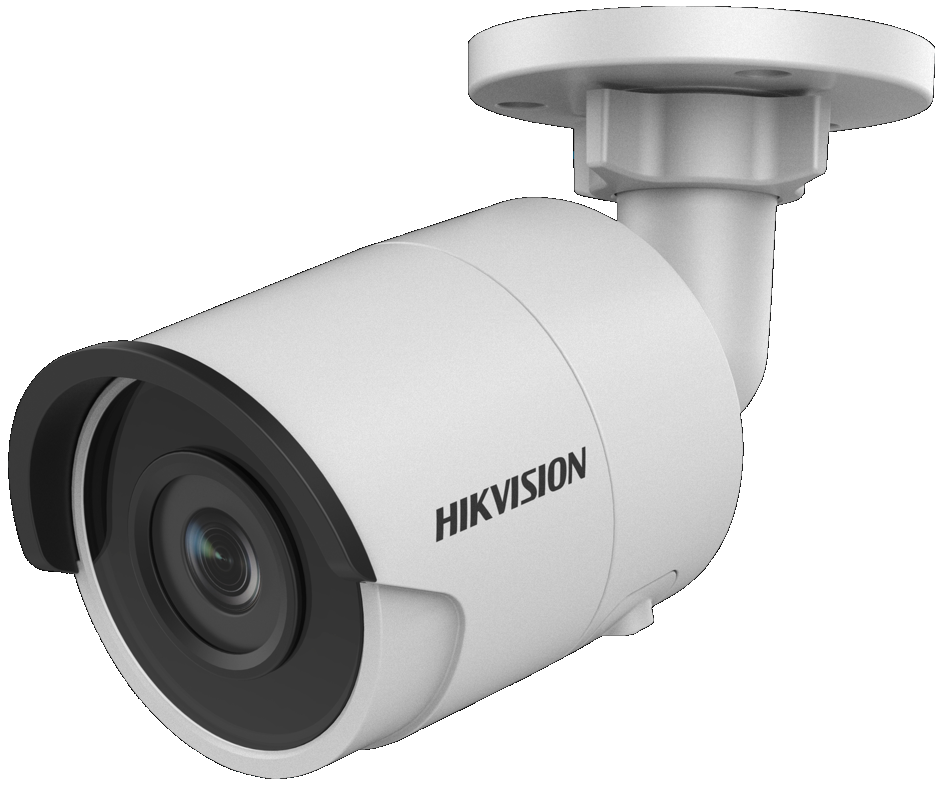

DS-2CD2055FWD-I(2.8mm)

Kamera IP Hikvision w metalowej obudowie tulejowej, rozdzielczość 5MP (max. 2560x1920@30kl/s), przetwornik: 1/2.9" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F2.0, kąt widzenia 81st., kompresja: H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR, BLC, trzyb korytarzowy, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy, pozostawienie przedmiotu, zabranie przedmiotu, wykrycie twarzy. Regulacja położenia 3D. Sklot na kartę do 128GB. Wymiary: śr.70x155.03. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2065FWD-I(2.8mm)

Kod produktu zamiennego: 311307328

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:



Available models:
DS-2CD2055FWD-I






DS -2CD20 55FWD - I
5 MP Network Bullet Camera



• Up to 5 MP High Resolution
• Full 2560 x 1920 @ 20 fps
• 2.8 mm / 4 mm / 6 mm / 8 mm Fixed Lens
Options
• H.265+, H.265, H.264+, H.264
• 120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• 12 VDC & PoE (802.3af)
• EXIR 2.0 with up to 100ft (30 m) IR Range
• MicroSD Card Slot Supports up to 128 GB
• IP67 Protection






















Dimensions




Hikvision’s DS-2CD2055FWD-I provides
important new technology for any security
application. The H.265+ codec assures savings in
bandwidth and storage. High quality and high
resolution images are assured with the 5MP
(2560 x 1920) image sensor . EXIR 2.0 technology
enhances night time performance.




Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy , St -Laurent, Quebec, Canada, H4R 2 P1
Tel: +1-909 -895 -0400 • Toll Free in USA: +1 -866 -200 -6690 • E -Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specificati ons are subject to change without notice. 0510 17 NA 


Specifications


Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Minimum Illumination Color: 0.027 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Time 1/3 s to 1/100,000 s
Slow Shutter Supported
Lens 81° (2.8 mm), 63.5° (4 mm), 50° (6 mm), 33° (8 mm)
Lens Mount M12
Iris F1.6
3-Axis Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day and Night IR Cut Filter
DNR 3D DNR
Wide Dynamic Range 120 dB
Compression Standard
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264; sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; third stream:
H.265+ / H.265 / H.264+ / H.264
H.264 Type Main profile / high profile
H.264+ Support
H.265 Type Main profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Maximum Resolution 2560 x 1920
Main Stream 20 fps (2560 x 1920); 30 fps (2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x720)
Sub Stream 30 fps (640 x 360, 352 x 240)
Third Stream 30 fps (1280 x720, 640 x 360, 352 x 240)
Image Enhancement BLC / 3D DNR
Image Settings Rotate mode supported. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client
software
ROI (Region of Interest) Separate support for one fixed region in main and sub streams
Day / Night Switch Auto / scheduled
Network
Network Storage Support for microSD / SDHC / SDXC card (128G), local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD / SDHC / SDXC slot, up to 128 GB
Smart Feature Set
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual line supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual region supported
Object Removal Detection Objects removed from a pre-defined region, such as exhibits on display
Unattended Baggage Detection Objects left over in the pre-defined region such as baggage, purses, and dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage
General
Operating Conditions -22° F to 140° F (-30° C to 60° C), Humidity 95% or less (non-condensing)
Power 12 VDC ± 25%, 6 W; PoE (802.3af, class 3), 7 W
IR Range Up to 100 ft (30 m)
Protection Level IP67
Dimensions Camera: Ø 2.76" x 6.1" (Ø 70 x 155.03 mm); Package: 8.5" x 4.76" x 4.65" (216 mm x 121 mm x 118 mm)
Weight 0.9 lbs (410 g)
Accessories


DS-2CD2055FWD-I

CBXS
Conduit Base
