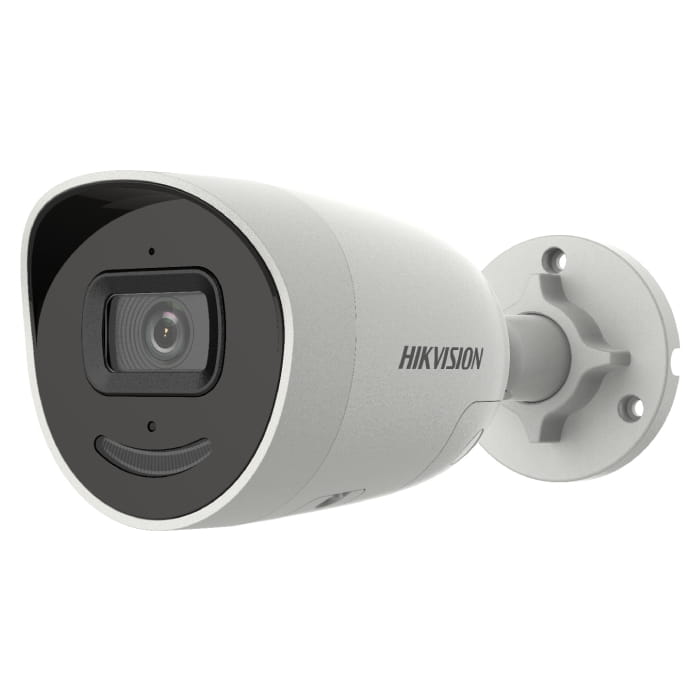

DS-2CD2046G2-IU/SL(2.8mm)(C)

Kamera IP typu bullet 4 MP AcuSense, ostrzeżenie świetlne i audio; Przetwornik: 1/3" Progressive Scan CMOS; Min. Oświetlenie: Kolor 0.003 Lux @ (F1.4, AGC ON), B/w: 0 Lux z IR; WDR: 120 db; Max. Rozdzielczość: 2688 × 1520; Obiektyw 2.8 mm: HFOV: 103°, VFOV: 55°, DFOV: 123°; Zasięg IR do 40 m; Dodatkowe inteligentne oświetlenie; Trzy strumienie; Kompresja dla głównego strumienia: H.265/H.264/H.265+/H.264+; API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK; Wzmocnienie obrazu: BLC, HLC, 3D DNR; Ustawienia obrazu: tryb korytarzowy; Wbudowany mikrofon; Slot na kartę pamięci do 256 GB; Zdarzenia podstawowe, zdarzenia SMART, przechwytywanie twarzy, ochrona perymetryczna; Temperatura pracy: -30 °C do 60 °C; Zasilanie: 12 VDC ± 25%, ochrona przed odwrotną polaryzacją PoE: 802.3af, Class 3; Materiał: Metal; Wymiary: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5"); Waga: 590 g (1.3 lb.); Ochrona: IP67...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2046G2-IU/SL
4 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
















Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 4 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 Clear imaging against strong backlight due to 120 dB true
WDR technology
 Efficient H.265+ compression technology
 Focus on human and vehicle targets classification based on
deep learning
 Active strobe light and audio alarm to warn intruders off
 Provides real-time security via built-in two-way audio
 Water and dust resistant (IP67)






 Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/w: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type Fixed
Focal Length & FOV
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
Aperture F1.4
Lens Mount M12
DORI
DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
Illuminator
Supplement Light Type IR
IR Range Up to 40 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Video
Max. Resolution 2688 x 1520
Main Stream
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports



H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Built-in Microphone Yes
Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Scene change detection



Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Linkage Method
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger
capture, strobe light, audible warning, send email
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Software Reset Yes
Firmware Version V5.5.112
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.54 A, max. 6.5 W
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.0 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Metal
Camera Dimension 72.9 mm x 73.3 mm x 191.1 mm (2.9" x 2.9" x 7.5")
Package Dimension 234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")
Camera Weight Approx. 590 g (1.3 lb.)
With Package Weight Approx. 820 g (1.8 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );
BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)




 Dimension



 Accessory
 Optional
DS-1280ZJ-XS
Junction Box


 Available Model
DS-2CD2046G2-IU/SL (2.8/4/6 mm)



050511220210225
