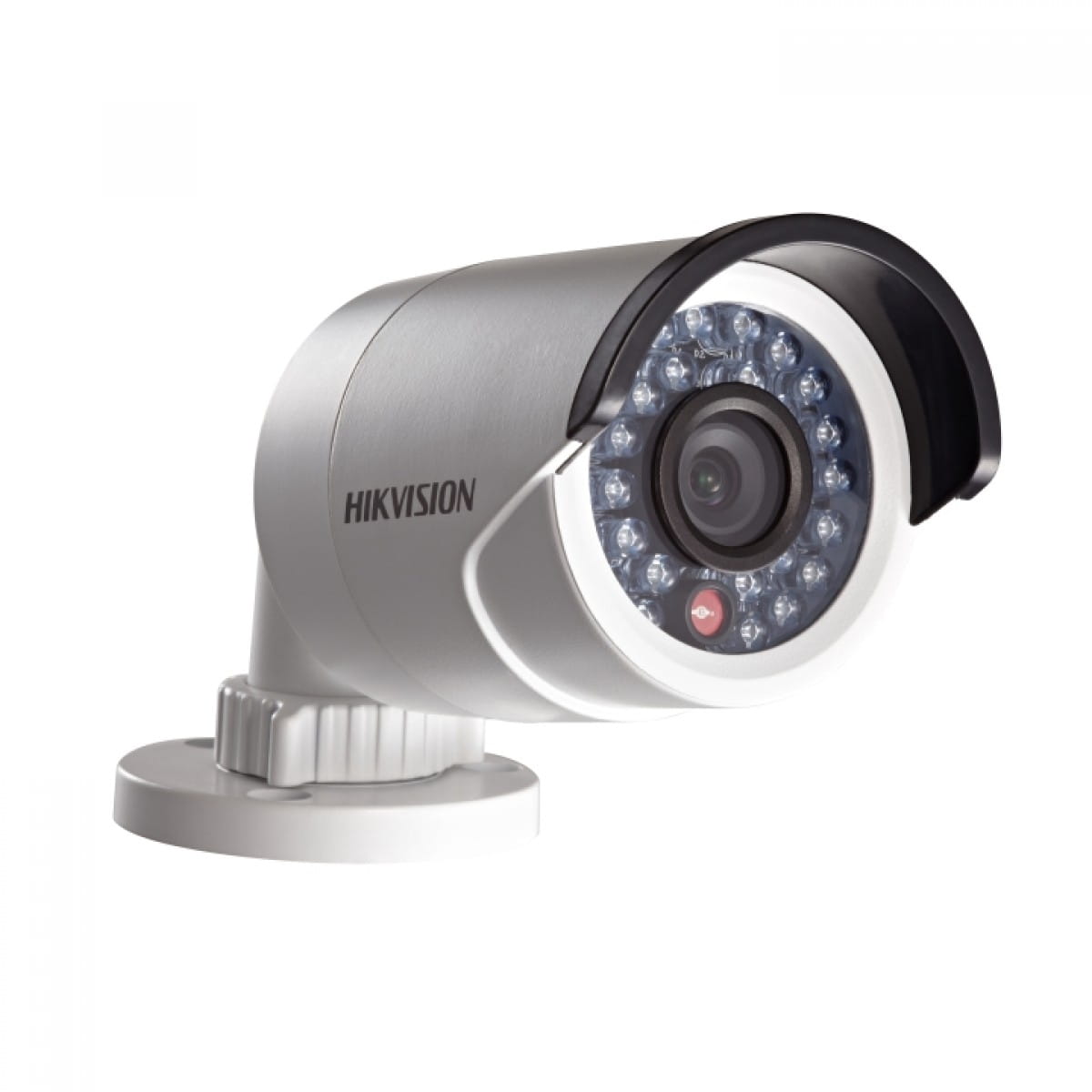

DS-2CD2032-I(12mm)

Kamera IP typu bullet, IP66, oświetlacz 30m, 3.0M-20 kl./s, WDR, PoE, 12mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key features
Dimensions
• 2MP / 3MP high resolution
• HD real-time video
• 3D DNR & DWDR & BLC
• IR LEDs: up to 30m
• IP66
• PoE
• Compact design
• Bracket included

DS-2CD2022-I DS-2CD2032-I
Camera
Image sensor1/3” progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07 lux @F1.2, AGC ON, 0 lux with IR
Shutter time1/3s ~ 1/100,100s
Lens
4mm @ F2.0 (6mm optional)
Angle of view: 79°(4mm), 49°(6mm)
4mm @ F2.0 (6mm optional)
1920 x 1080: Angle of view:
79°(4mm), 49°(6mm)
2048 x 1536: Angle of view:
70°(4mm),43.3°(6mm)
Lens mountM12
Day & nightICR
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Compression Standard
Video compression H.264 / MJPEG
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamYes
Max. Image Resolution1920 x 1080 2048 x 1536
Frame rate
50Hz: 25fps (1920 x 1080), 25fps (1280 x 720)
60Hz: 30fps (1920 x 1080), 30fps (1280 x 720)
50Hz: 20fps (2048 x 1536), 25fps (1920 x
1080), 25fps (1280 x 720)
60Hz: 20fps (2048 x 1536), 30fps (1920 x
1080), 30fps (1280 x 720)
Image settings
Saturation, brightness, sharpness, contrast, sharpeness adjustable through client software
or web browser
BLCYes, zone configurable
Network
Network storageNAS
Alarm trigger
Motion detection, line crossing detection, tampering alarm, scene change detection, face
detection, intrusion detection
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
System compatibilityONVIF, PSIA, CGI
General functionalitiesUser Authentication, watermark, reset button
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
General
Operating conditions-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5W (max. 7W with ICR on)
Weather proof rating IP66
IR rangeUp to 30m
Dimension 60.4 x 76.9 x 139.2mm
Weight500g
IR Mini Bullet Network Camera
DS-2CD2022-I (2.0MP)
DS-2CD2032-I (3.0MP)

Available models
DS-2CD2022-I (2.0MP)
DS-2CD2032-I (3.0MP)
* 1.3MP model is also available -- DS-2CD2012-I

BL C
ICR
WDR
DIGITA L
