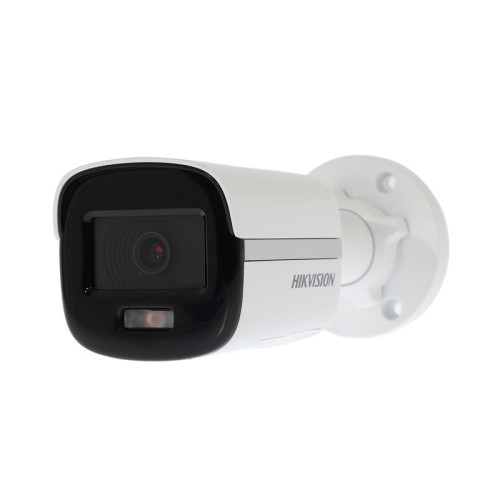

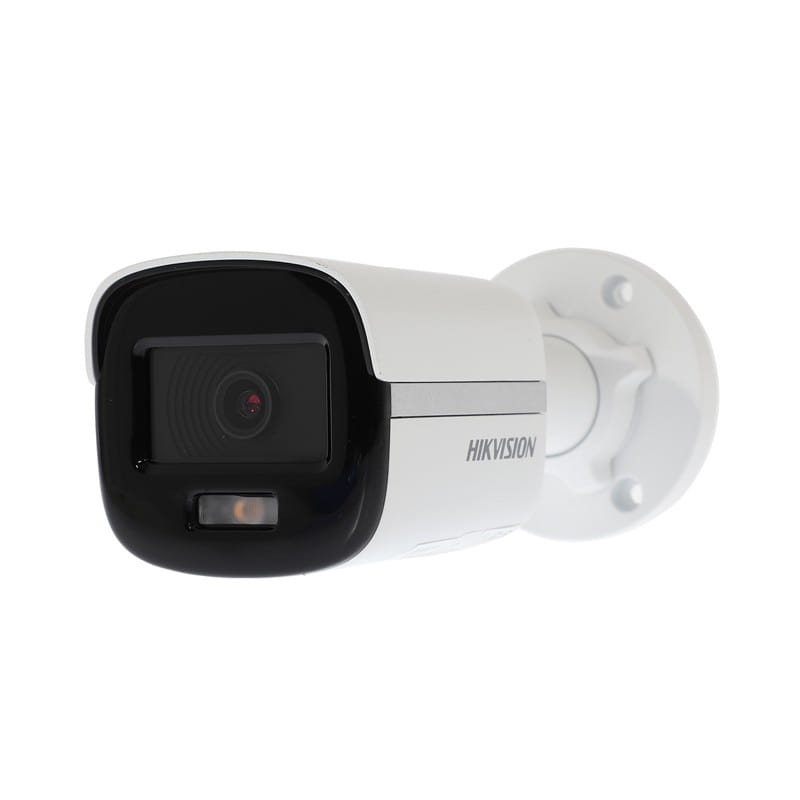

DS-2CD2027G2-L(2.8mm)

Kamera sieciowa typu bullet 2MP ColorVu rozróżnianie obiektów człowiek i pojazd, kolorowy obraz 24/7, Matryca: 1/2.8″ Progressive Scan CMOS, Min. Oświetlenie: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux ze światłem Migawka:1/3 s do 1/100,000 s, wolna migawka: Tak, P/N, Wide Dynamic Range: 120dB, Obiektyw: Typ obiektywu i FOV: 2.8 mm, HFOV 107°, VFOV 56°, DFOV 127° Apertura: F1.0, Oświetlenie: Zasięg światła białego: 40m, Inteligentne doświetlanie: Tak, Wideo: 3 strumienie Max rozdzielczość: 1920x1080 Główny strumień: 50Hz: 25 fps (1920 × 1080, 1280 × 720) , 60Hz: 30 fps (1920 × 1080, 1280 × 720), Kompresja Wideo: główny strumień: H.265/H.264/H.264+/H.265+, ROI: 1 obszar, Sieć: jednoczesny podgląd na żywo: do 6 kanałów, API: ONVIF Profil S, Profil G, PROFILE T), ISAPI, SDK, Protkoły: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Pamięć masowa: Slot na kartę MicroSD/SDHC/SDXC do 256 GB, NAS(NFS,SMB/CIFS), ANR, Obraz: Przełącznik dzień&noc: dzień, noc, automatyczny, wg harmonogramu, Wzmocnienie obrazu: BLC, HLC, 3D DNR, Przełącznik parametrów obrazu: Tak, Ustawienia obrazu: tryb korytarzowy, nasycenie, jasność, kontrast, ostrość, wzmocnienie, balans bieli regulowany przez oprogramowanie klienta lub przeglądarkę internetową, Interfejs: Interfejs komunikacyjny: 1 RJ45 10M/100M self-adaptive Ethernet port, Funkcje SMART: detekcja ruchu, sabotaż, wyjątki(utrata połącznia, konfilkt adresów IP, zły login, pełny HDD, błąd HDD), detekcja smiany sceny. Funkcje Deep Learning: Detekcja twarzy: Tak, Ochrona obwodowa: Wykrywanie przekroczenia linii, wykrywanie wtargnięcia, wykrywanie wejścia w obszar, wykrywanie wyjścia z obszaru, Ogólne: Warunki eksploatacji: -30 °C do 60 °C (-22 °F do 140 °F). Wilgotność 95% lub mniej (bez kondensacji), Źródło zasilania: 12 VDC ± 25%; PoE (802.3af, 36 V do 57 V), klasa 3, pobór energii: 12 VDC, 0.6 A, max. 7.2 W, PoE (802.3af, 36 V do 57 V), 0.3 A do 0.2 A, max. 8.5 W, wymiary kamery: 215.2 × 78.8 × 78.6 mm (8.5" × 3.1" × 3.1"), waga kamery: około 680 g (1.5 lb.), ochrona: IP67 (IEC 60529-2013)...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2027G2-L(2.8mm)(C)

Kod produktu zamiennego: 311315554

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2027G2-L(U)
2 MP ColorVu Fixed Bullet Network Camera
















Hikvision ColorVu technology provides 24/7 vivid colorful
images with F1.0 advanced lenses, high performance sensors
and friendly lighting. F1.0 super-aperture collects more light
to produce brighter images. Advanced sensor technology can
vastly improve the utilization of available light. In zero-light
scenarios, built-in, warm supplemental lighting works to
guarantee colorful images.
 High quality imaging with 2 MP resolution
 Efficient H.265+ compression technology
 Clear imaging against strong back light due to 120 dB WDR
technology
 Built-in microphone for real-time audio security(-U)
 Focusing on human and vehicle classification based on
deep learning
 24/7 colorful imaging





 Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
6 mm, horizontal FOV 55°, vertical FOV 30°, diagonal FOV 63°
Depth of Focus
2.8 mm, 1.7m to ∞
4 mm, 2.3 m to ∞
6 mm, 5.3 m to ∞
Aperture F1.0
Lens Mount M12
DORI
DORI
2.8 mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
6mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
Illuminator
White Light Range 40 m
Smart Supplement Light Yes
Video
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25 fps (1920 x 1080, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for each stream



Audio
Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate
-U:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto
network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Built-in Microphone -U: Yes
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Linkage Method Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian



General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%; PoE (802.3af, 36 V to 57 V), class 3
Power Consumption and
Current
12 VDC, 0.6 A, max. 7.2 W
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W
Power Interface Ø5.5 mm coaxial power
Camera Dimension 215.2 x 78.8 x 78.6 mm (8.5" x 3.1" x 3.1")
Package Dimension 315 x 137 x 141 mm (12.4" x 5.4" x 5.6")
Camera Weight Approx. 680 g (1.5 lb.)
With Package Weight Approx. 1000 g (2.2 lb.)
Approval
Class Class B
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67 (IEC 60529-2013)


 Dimension





 Available Model
DS-2CD2027G2-LU (2.8 mm, 4 mm, 6 mm)
DS-2CD2027G2-L (2.8 mm, 4 mm, 6 mm)





 Accessory
 Optional
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-S
Junction Box
DS-1276ZJ-SUS
Corner Mount
