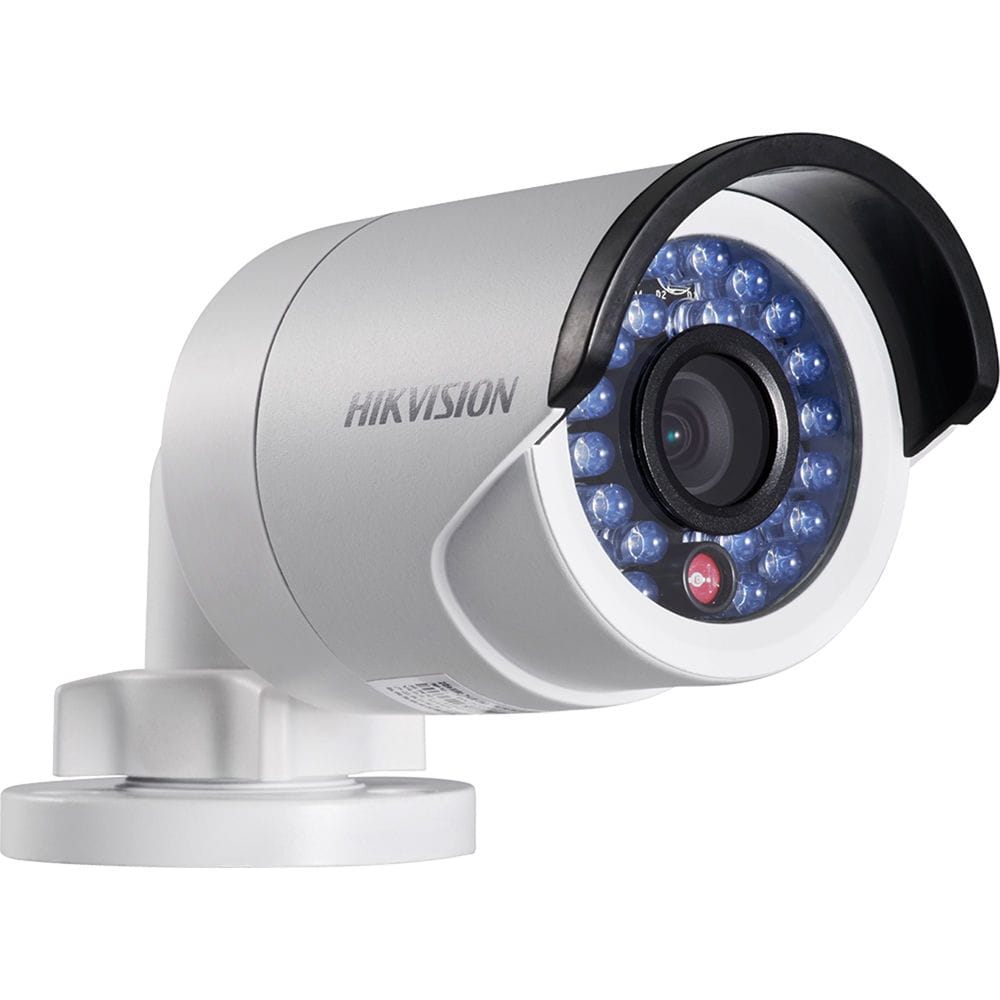

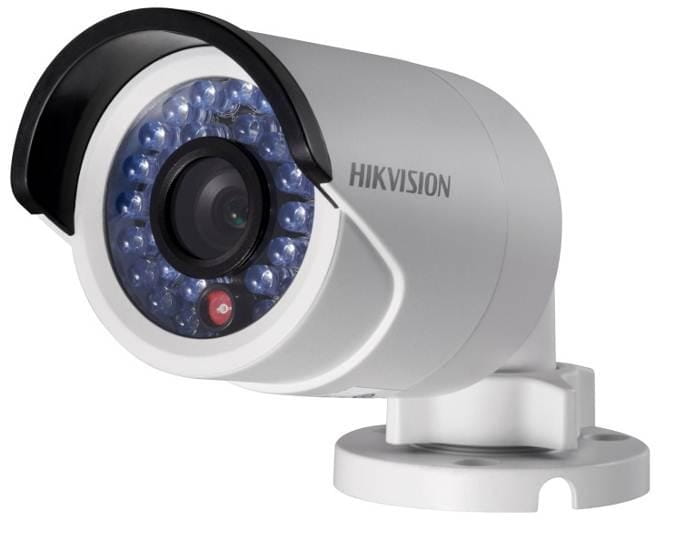

DS-2CD2022WD-I(6mm)

Kamera IP Hikvision w metalowej obudowie tulejowej, rozdzielczość 2MP (max. 1920×1080@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 6mm/F2.0, kompresja: H.264+/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR, IP67, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2022WD-I
2MP WDR Mini Bullet Network Camera

 Up to 2 megapixel high resolution
 Full HD1080p video
 Dual stream
 4mm/6mm fixed lens
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 Backlight Compensation
 Support on-board storage, up to 64GB

 DC12V & PoE
 Support H.264+
 Up to 30m IR range
 3-axis adjustment
 IP67 weather-proof protection
 Metallic housing & bracket

Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s
Lens 4mm, 6mm @ F2.0, Angle of view: 90°(4mm) , 53.9°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support








Max. Resolution 1920 x 1080
Max Frame Rate
50Hz:Main stream:25fps(1920x1080),25fps(1280x960),25fps(1280x720)Sub stream:25fps(352x288),25fps(640x360)
60Hz: Main stream:30fps (1920x1080), 30fps(1280x960), 30fps(1280x720) Sub stream: 30fps(352x240),30fps(640x360)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
General
Operating Conditions -30 °C ~ 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af Class 3)
Power Consumption Max. 5W
Max. 9W with pan and tilt IR Range Approx. 30 meters
Ingress Protection IP67
Dimensions 70x154.2x60.5 mm (2.8” x 6.2” x 2.4”)
Weight 500g (1.1lbs)
Order Models
DS-2CD2022WD-I


DS-2CD2022WD-I
2MP WDR Mini Bullet
Network Camera



Dimensions
