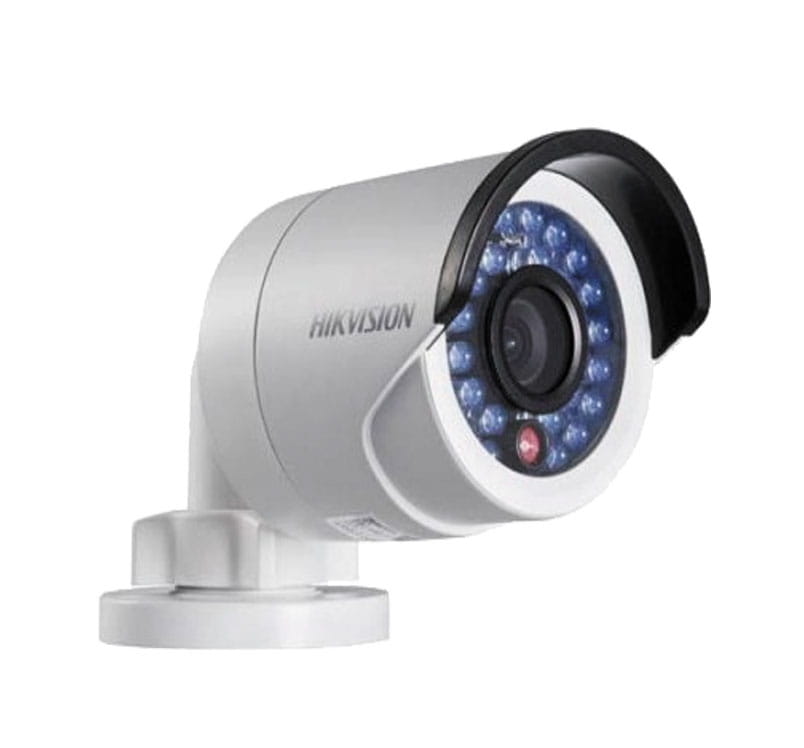

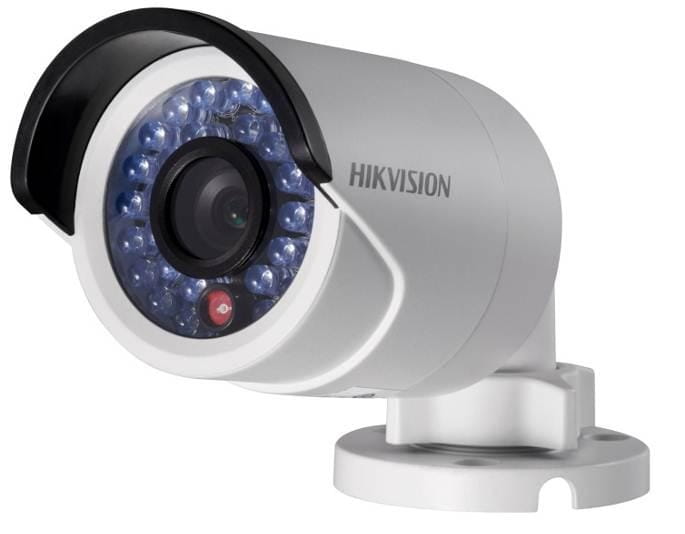

DS-2CD2014WD-I(4mm)
Opis
Kamera IP Hikvision w obudowie tulejowej, rozdzielczość 1 MP - 1280 × 720@30kl/s, przetwornik: 1/4" Progressive Scan CMOS, czułość: 0.05Lux@ F2.0 (wł. AGC), 0 Lux z IR, zasięg IR: do 30m, dzień/noc ICR, obiektyw: 4mm/F2.0, kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, obudowa IP66, detekcja przekroczenia linii, detekcja naruszenia strefy, WDR: 100dB. Zasilanie 12VDC/PoE....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2014WD-I
Key Features
Up to 1.0 megapixel (1280 x 720) resolution
Standard video compression with high compression ratio, ROI (region of interest) encoding
Progressive scan CMOS, capture motion video without incised margin
Support 3D DNR
Wide dynamic range, up to 100dB
Support dual stream, and the sub-stream for mobile surveillance
High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
IR cut filter with auto switch
PoE (Power over Ethernet)
Ingress Protection level: IP66
Electronic shutter for different surveillance environments
Other functions: alarm, reset button, mirror, etc
Support intrusion detection and line crossing detection
Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2014WD-I
1.0 Megapixel CMOS WDR Network Bullet Camera
Camera
Image Sensor 1/4" Progressive Scan CMOS
Min. Illumination
0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
©2006 – 2014 by HIKVISION. All rights reserved.
2
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm@ F2.0, Angle of view: 55°
(6mm optional)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range 100dB
Compression Standard
Video Compression H.264/ MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
Dual Stream Yes
Max. Resolution 1280 x 720
Frame Rate
50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic
analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Reset Button Yes
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply 12 V DC ± 10% , PoE (802.3af)
©2006 – 2014 by HIKVISION. All rights reserved.
3
Power Consumption Max. 6 W
Ingress Protection
level
IP66
IR Range 30 meters
Dimensions 60.4x76.9x139.28 mm (2.4” x 3.0” x 5.5”)
Weight 500g (1.1 lbs)
Order Models
DS-2CD2014WD-I
Dimensions
Unit: mm
