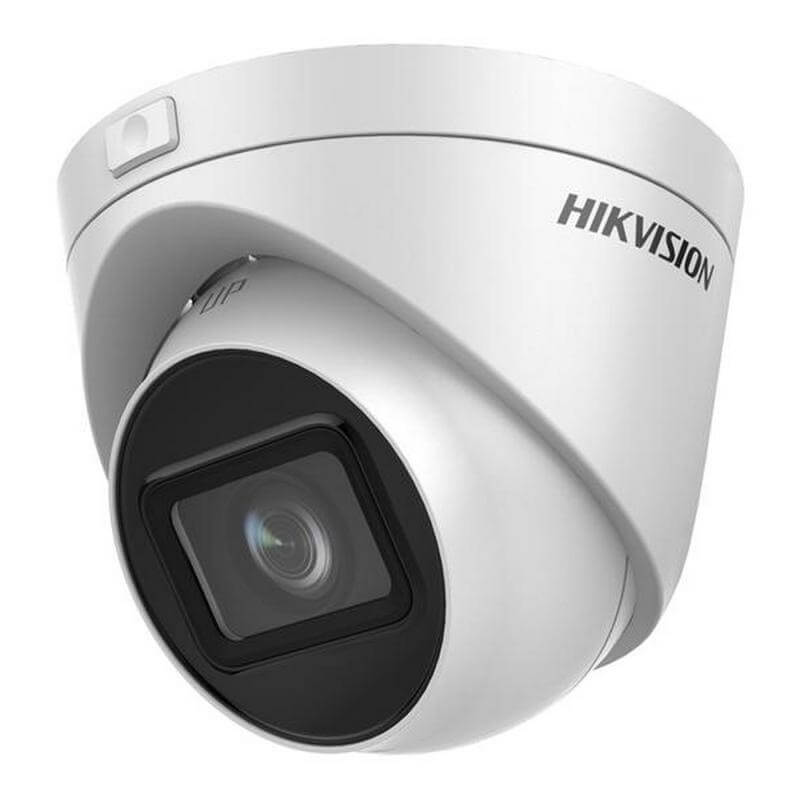

DS-2CD1H23G0-IZ(2.8-12mm)(C)

Kamera IP typu Turret, przetwornik: 1/2.7" Progressive Scan CMOS, rozdzielczość 1920 × 1080; min. Oświetlenie: 0.005 Lux @(F1.6, AGC ON), Cz/B: 0 Lux dla IR; Cyfrowy WDR; Obiektyw 2.8 do 12 mm: horizontal FOV 112° do 33°, vertical FOV 58° do 19°, diagonal FOV 134° do 39°; Zasięg IR do 30m; H.265+/H.265/H.264+/H.264; BLC, 3D DNR; slot na kartę microSD do 256 GB;; podstawowe zdarzenia: detekcja ruchu, sabotaż, wyjątki; Zasilanie: 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, PoE: (802.3af, Class 3, 36 V do 57 V), 0.17 A do 0.27 A, max. 10 W; wymiary: Ø129.4 mm × 116.4 mm; Waga: 560 g; Temp.pracy: -30 °C do +60 °C; IP67 (IEC 60529-2013)...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1H23G2-IZ(2.8-12mm)

Kod produktu zamiennego: 311320885

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
•1/2.7" progressive scan CMOS•3D DNR
•1920 x 1080@30fps•Up to 30 m IR range
•2.8 mm to 12 mm varifocal lens•IP67
•H.265+, H.265, H.264+, H.264
•Dual stream
DS-2CD1H23G0-IZ
2 MP IR VF Network Turret Camera


Camera
Image Sensor1/2.7" progressive scan CMOS
Min. IlluminaonColor: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
Shuer Speed1/3 s to 1/100, 000 s
Slow ShuerYes
Auto-IrisNo
Day &NightIR cut filter
Digital Noise Reducon3D DNR
WDR DWDR
Angle AdjustmentPan: 0° to 360°, lt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length2.8 mm to 12 mm
ApertureF1.6
Focus No
FOVHorizontal FOV 108.5° to 33.2°, vercal FOV 57.5° to 18.8°, diagonal FOV 130° to
38°
Lens MountØ14
IR
IR RangeUp to 30 m
Wavelength850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.264+Main stream supports
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest1 fixed region for main stream and sub-stream
Max. Resoluon1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image EnhancementBLC, 3D DNR
Image SengsSaturaon, brightness, contrast, sharpness, AGC, white balance adjustable by
client soware or web browser


Day/Night Switch Auto, scheduled, day, night
Network
Alarm TriggerMoon detecon, video tampering, network disconnected, IP address conflict,
illegal login, HDD error, HDD full
Network StorageSupport built-in microSD/SDHC/SDXC card (128G), local storage and NAS
(NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General FunconOne-key reset, heartbeat, mirror, password protecon, privacy mask, watermark,
IP address filter
Firmware Version 5.5.52
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users
3 levels: Administrator, Operator, and User
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communicaon Interface1 RJ45 10M/100M self-adapve Ethernet port
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Reset BuonYes
General
Operang Condions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumpon and
Current
12 VDC, 0.9 A, Max: 10.5 W
PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W
Ingress ProteconIP67
MaterialCamera body: metal, boom base: plasc
DimensionsCamera: Ø 129.4 mm x 116.4 mm (5.1" x 4.6")
With package: 170 mm x 170 mm x 150 mm (6.7" x 6.7" x 5.9")
WeightCamera: 560 g (1.2 lb.)
With package: 850g (1.9 lb.)
Available Model
DS-2CD1H23G0-IZ (2.8 to 12 mm)




Dimensions
Accessories

DS-1275ZJ
Vercal Pole Mount

DS-1281ZJ-M
Inclined Ceiling Mount

DS-1271ZJ-130-TRL
Pendant Mount

DS-1280ZJ-M
Juncon Box

DS-1273ZJ-130-TRL
Wall Mount

DS-1276ZJ
Corner Mount
050520170918 050440161122
