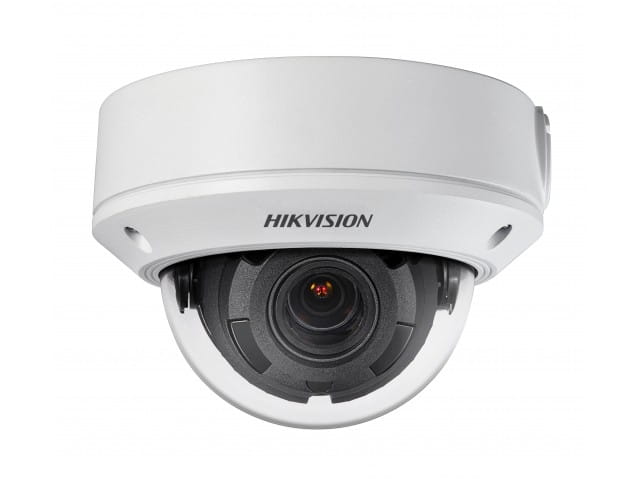

DS-2CD1741FWD-IZ(2.8-12mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 4MP (max. 2688x1520@20kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektywy z moto-zoom: 2.8 - 12mm/F1.4, kąt widzenia 108st.-35st.. Kompresja: H.264+/H.264/MJPEG, dwa strumienie, WDR 120dB, 3D DNR, BLC, ROI: 1 obszar. Regulacja położenia 3D. Wymiary: śr.141x99.9 mm. IP67, IK10. Temperatura pracy: -30st.C do +60st.C. Slot na kartę do 128GB. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 1/ 3 " progressive scan CMOS
 Up to 4.0 megapixel
 2.8 mm to 12 mm manual/motorized (with -Z) vari -focal lens
 Up to 30 m IR range
 Dual stream
 120dB WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67, IK10
 Mobile monitoring via Hik -Connect or iVMS -4500

DS -2CD 1741FWD - I (Z)
4.0 MP CMOS Vari-Focal Network Dome Camera



Camera
Image Sensor 1/ 3 " progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 108 ° to 31°
Lens Mount Φ 14
Day &Night IR cut filter with auto switch
3 -Axis Adjustment Pan: 0° to 360°, tilt: 0°to 75°,rotation:0° to 360°
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
S ub stream: H.264/MJPEG
H.264 Type Main profile/High profile
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 2 688x 1520
Main Stream
Max. Frame Rate
50Hz: 20fps @(2688x 1 520), 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280 x 720 )
60Hz:20fps @(2688x 1 520), 20fps @(2304 x 1296), 30fps @( 1920x 1080, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 x 360, 352 x 288)
60Hz: 30fps @(640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Detections Motion detection
Alarms Video tampering , network disconnect ed, IP address conflicted, HDD full, HDD error
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6 ,Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function
One -key r eset,anti - flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
Video Output (Without - Z) 1Vp - p composite output(75Ω/BNC)
Reset Support
General
Operating Conditions - 30 °C to60°C ( - 22 °F to140°F), humidity: 95% or less (non -condensing)
Power Supply DC 1 2V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5 W/11 W (With - Z)
Protection Level IP 67, IK10
IR Range Up to 30 m
Dimensions Φ141 mm x99.9 mm (5.6 " x 3.9 " )
Weight 800 g (1.76 lb.)
Specification



Available Models
DS-2CD 1 7 41 FWD - I (Z)


Φ 141 mm ( 5 . 55 " )
99
.
9
mm
(
3
.
9
"
)
Φ 99 mm ( 3 . 9 " )
100 . 5 mm ( 3 . 96 " )
14 mm ( 0 . 55 " )

43
.
3
mm
(
1
.
7
"
)
50 . 2 mm ( 1 . 98 " )
50 . 3 mm ( 1 . 98 " )
24 . 9 mm
( 0 . 98 " )
58
mm
(
2
.
3
"
)
29
mm
(
1
.
4
"
)




DS -1227ZJ
In -ceiling Mounting Bracket

DS -1273ZJ - 135
Wall Mounting Bracket

DS -1273ZJ -135B
Wall Mounting Bracket

DS -1280ZJ -DM21
Junction Box

DS -1271ZJ - 135
Pendant Mounting Bracket

DS -1275ZJ
Vertical Pole Mounting Bracket

DS -1281ZJ -DM23
Inclined Base Mounting Bracket







Dimension
Accessory
