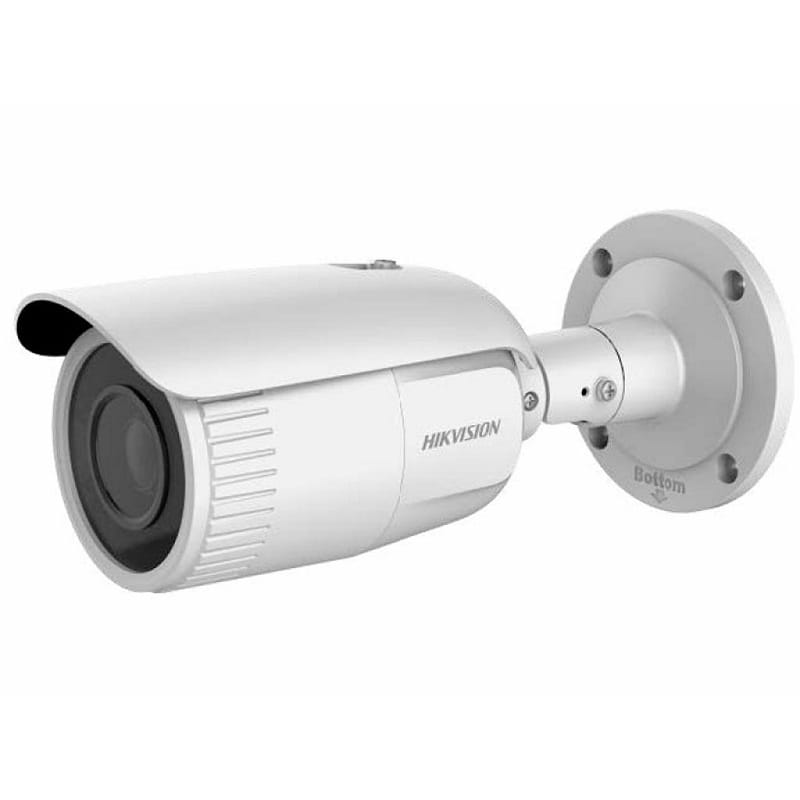

DS-2CD1623G0-IZ(2.8-12mm)(C)

Kamera IP typu Bullet, posiada przetwornik: 1/2.7" Progressive Scan CMOS, max. rozdzielczość 1920 × 1080; min. Rozdzielczość: Kolor: 0.005 Lux @(F1.6, AGC ON), Cz/B: 0 Lux dla IR, Cyfrowy WDR, ICR, obiektyw motozoom 2.8-12mm HFOV 96° do 36°, VFOV 51° do 20°, DFOV 113° do 42°; Zasięg IR do 50m, dwa strumienie, H.265+/H.265/H.264+/H.264; BLC, 3D DNR, slot na kartę microSD do 256 GB; Podstawowe zdarzenia: detekcja ruchu, sabotaż, wyjątki; Zasilanie: 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug, PoE: (802.3af, Class 3, 36 V do 57 V), 0.23 A do 0.36 A, max. 12.9 W; Wymiary: Ø105 mm × 244.4 mm; Waga: 1035 g; Temp. Pracy: -30 °C do +60 °C; IP67 (IEC 60529-2013)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD1623G0-I(Z)
2 MP Varifocal Bullet Network Camera






 High quality imaging with 2 MP resolution
 Efficient H.265+ compression technology
 Clear imaging even with strong back lighting due to DWDR technology
 Up to 256 GB SD card slot for storage
 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
 Water and dust resistant (IP67)
 EXIR 2.0: advanced infrared technology with long IR range





 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 x 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Wide Dynamic Range Digital WDR
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens Type Varifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to
42°
Lens Mount Ø14
Iris Type Fixed
Aperture F1.6
Illuminator
IR Wavelength 850 nm
IR Range Up to 50 m
Video
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 720),
60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to
64 Kbps (AAC)
Audio Sampling Rate -S: 8 kHz/16 kHz
Environment Noise Filtering -S: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect



Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Audio -S: 1 input (line in), 1 output (line out), mono sound
Alarm -S: 1 input,1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage
-S: Upload to FTP, notify surveillance center, send email, upload to memory card,
trigger recording, trigger capture, trigger alarm output
General
Power
12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W
Camera Dimension Ø105 mm x 244.4 mm (4.1" x 9.6")
Package Dimension 315 mm x 137 mm x 141 mm (12.4" x 5.4" x 5.6")
Camera Weight Approx. 1035 g (2.3 lb.)
With Package Weight Approx. 1550 g (3.4 lb.)
Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)



Other IP67 (IEC 60529-2013)


Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Dimension



 Available Model
DS-2CD1623G0-IZ (2.8 to 12 mm)
DS-2CD1623G0-IZS (2.8 to 12 mm)




 Accessory
 Optional
DS-1280ZJ-S
Junction Box
DS-1275ZJ-S-SUS
Vertical Pole Mount
DS-1260ZJ
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1275ZJ-SUS
Vertical Pole Mount
