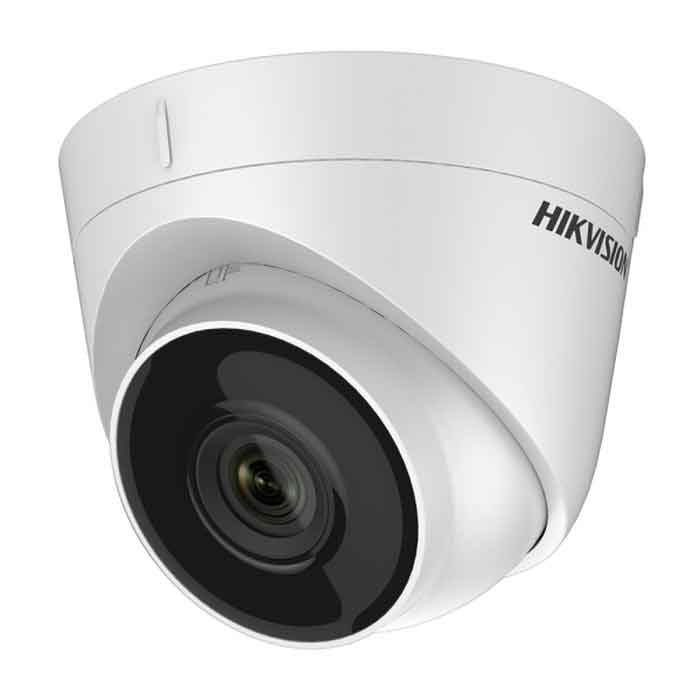

DS-2CD1343G0E-I(4mm)

Dostępność: 0
Cena: 577,00 zł 577.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311310146

Opis

Kamera IP Hikvision w obudowie typu turret, rozdzielczość 4MP (max. 2560 x 1440@20kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.028Lux@ F2.0 (wł. AGC), zasięg IR do 30m, dzień/noc ICR, obiektywy stałoogniskowy: 4mm/F2.0, kąt widzenia 77st.. Kompresja: H.265+/H265/H.264+/H.264/MJPEG, dwa strumienie, cyfrowy WDR, 3D DNR, BLC, HLC, ROI: 1 obszar. Podstawowe zdarzenia: detekcja ruchu, sabotaż wideo, wyjątki (błędne logowanie). Ogólne funkcje: ochrona przed migotaniem, odbicie lustrzane, maski prywatności. Regulacja położenia 3D. Wymiary: śr.110 mm x 94.4 mm . IP67. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD1343G0E-I
4 MP EXIR Fixed Turret Network Camera









● 1/3" Progressive Scan CMOS
● 2560 x 1440@20fps
● 2.8/4 mm fixed lens
● Color: 0.028 Lux @ (F2.0, AGC ON)
● H.265, H.265+, H.264, H.264+

● BLC/HLC/3D DNR/ROI
● IR range: Up to 30 m
● 3-Axis adjustment
● IP67






Specifications

Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8/4 mm
Aperture F2.0
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 2560 x 1440
Main Stream
50Hz: 20fps (2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20fps (2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, exception (illegal login)
Linkage Method Upload to FTP, notify surveillance center, send email
Region of Interest 1 fixed region for main stream
Image Enhancement BLC, HLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client
software or web browser
Day/Night Switch Day/Night/Auto/Schedule
S/N Ratio > 50dB



Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API ONVIF (PROFILE S), ISAPI, SDK
Security
Password protection, complicated password, IP address filter, Watermark, HTTPS
encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest
authentication for ONVIF, 802.1X authentication (EAP-MD5)
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Central, Hik-Connect
Web Browser IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
General Function Anti-flicker, heartbeat, mirror, privacy mask
Reset Reset via web browser and client software
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af,
class 3)
Power Consumption and Current 12 VDC, 0.34 A, max. 4 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5 W
Material Camera body: metal, bottom base: plastic
Dimensions
Camera: Φ110 mm x 94.4 mm (Φ4.3" x 3.7")
With package: 150 x 150 x 141 mm (5.9" x 5.9" x 5.6")
Weight
Camera: approx. 360 g (0.8 lb.)
With package: approx. 580 g (1.3 lb.)
Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:
2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am
1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection Ingress protection: IP67 (IEC 60529-2013)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD1343G0E-I (2.8/4 mm)



Dimension

Accessory




DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-S
Junction Box




05059020190724
