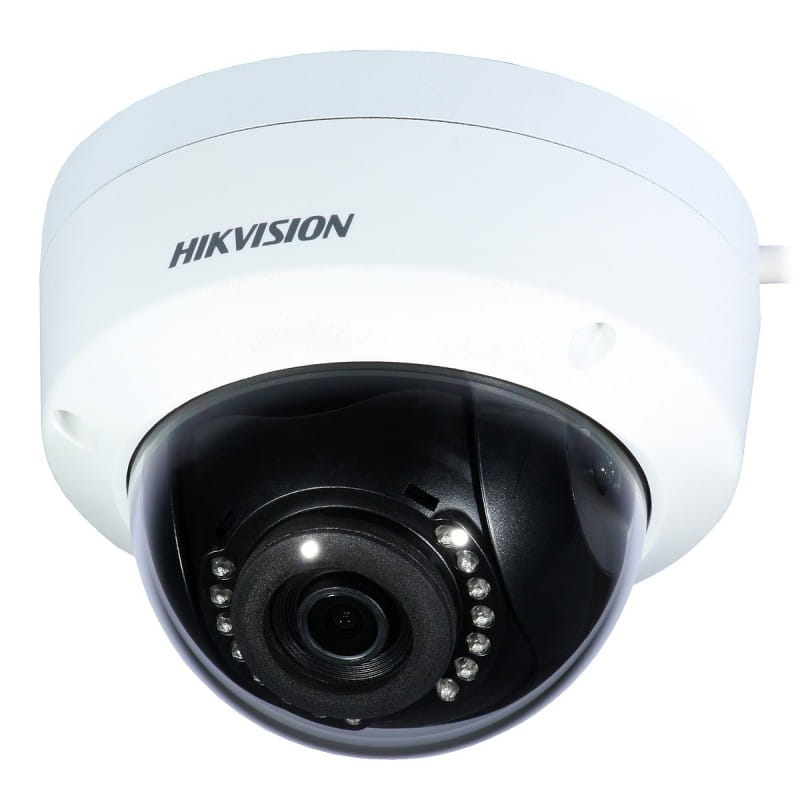

DS-2CD1153G0-I(2.8mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 5MP (50Hz: 12.5kl/s; 2560 x 1920),), 1/2.7" Progressive Scan CMOS ,czułość: kolor: 0.01 Lux @ F1.2 (wł. AGC), 0.028 Lux @F2.0(wł. AGC), zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm/F2.0, HFOV: 100st., VFOV: 74st., DFOV: 130st., kompresja H.265+/H.265/H.264+/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR/ BLC, IP67, ROI: 1 obszar. Funkcje: detekcja ruchu, sabotażu wideo, rozłączenia sieci, konflikt adresów IP, błędne logowanie, bład HDD, HDD pełny, ogólne funkcje: przycisk resetu, odbicie lustrzane, ochrona haseł, maska prywatności, znak wodny, filtrowanie adresów IP, 3-osiowa regulacja położenia. Temperatura pracy: -30st.C do +60st.C. Zasilanie: 12VDC/PoE. Wymiary: śr. 111 mm x 82.4 mm. Waga: 400g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1153G0-I(2.8mm)(B)

Kod produktu zamiennego: 311314383

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens


DS-2CD1153G0-I
5 MP IR Fixed Network Dome Camera
* 1/2.7" Progressive Scan CMOS
* 2560 x 1920 @15fps
* Color: 0.01 Lux @(F1.2; AGC ON), 0.028
Lux @(F2.0; AGC ON)
* 2.8/4/6 mm fixed lens
* H.265+, H.265, H.264+, H.264
* 3D Digital Noise Reduction
* IP67, IK10


Key Features



Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120 dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length 2.8/4/6 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°
4 mm, horizontal FOV: 75°, vertical FOV: 55°, diagonal FOV: 98°
6 mm, horizontal FOV: 49°, vertical FOV: 37°, diagonal FOV: 60°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8Mbps
Smart Feature-set
Region of Interest Support 1 fixed region for main stream
Max. Resolution 2560 x 1920
Main Stream
50Hz: 12.5fps (2560 x 1920), 20fps (2560 x 1440), 25fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 15fps (2560 x 1920), 20fps (2560 x 1440), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC/3D DNR
Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night Switch Auto/Scheduled/Day/Night
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.
Network
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
error, HDD full









Φ 111 mm (4.4")
Φ 79 mm (3.1")
Φ 100.4 mm
(4 ")
Φ 79 mm (3.1")
82
.4
mm
(
3
.2
"
)






Network Storage NAS (NFS,SMB/CIFS)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
General Function One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.52
API ONVIF(PROFILE S,PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, class 3
Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Protection Level IP67, IK10
Material Bubble: plastic, bottom base: metal
Dimensions
Camera: Ø 111 mm x 82.4 mm (4.4" x 3.2")
With package: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Weight
Camera: approx. 400 g (0.9 lb.)
With package: approx. 600 g (1.3 lb.)
Dimensions
Available Model:
DS-2CD1153G0-I (2.8/4/6 mm)





Accessory




DS-1259ZJ
Inclined Ceiling
Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110
Wall Mount
DS-1272ZJ-110B
Wall Mount
DS-1276ZJ-SUS
Corner Mount



DS-1280ZJ-DM18
Junction Box
DS-1258ZJ
Wall Mount
DS-1253ZJ-M
Rain Shade
DS-1250ZJ
Rain Shade
DS-1275ZJ-SUS
Vertical Pole Mount


05040120200110
