DS-2CD1123G0E-I(2.8mm)(C)

Dostępność: >1000
Cena: 572,00 zł 572.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311315934

Opis

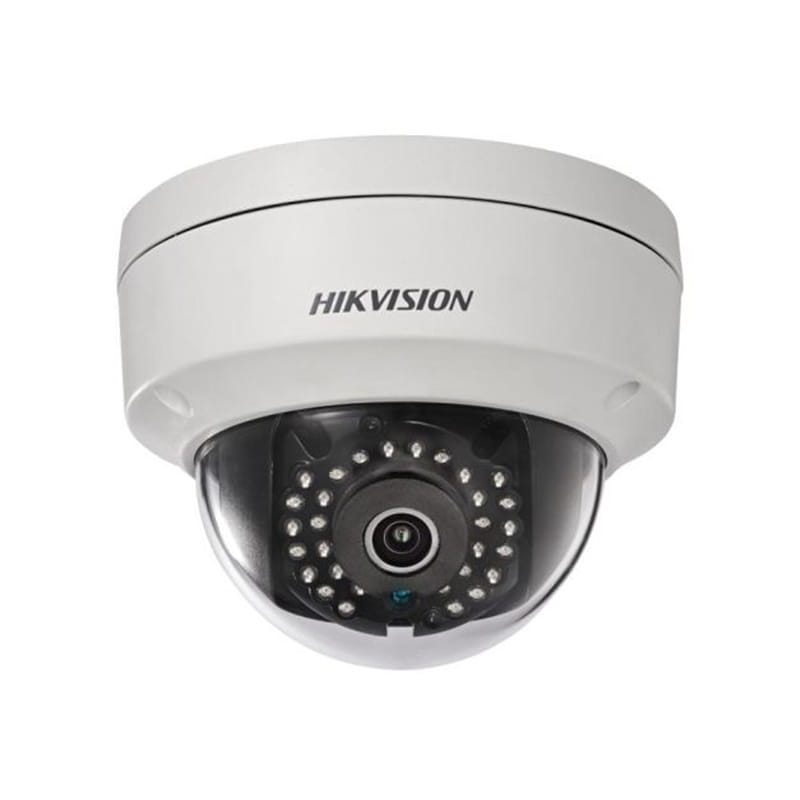

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 2MP (1920 x 1080/30kl.s), 1/2.7" Progressive Scan CMOS, czułość: kolor: 0.01 Lux @ F2.0 (wł. AGC), 0 Lux z wł. IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm: HFOV 112.1°, VFOV 60°, DFOV: 132.2°, F2.0, kompresja H.265/H.264/MJPEG, dwa strumienie, WDR: cyfrowy, BLC /3D DNR/, IP67. Funkcje: detekcja ruchu, sabotaż, wyjątki. Ogólne funkcje: odbicie lustrzane, ochrona haseł, maski prywatności, znak wodny, filtrowanie adresów IP, 2-osiowa regulacja położenia. Temperatura pracy: -30°C do +60°C. Zasilanie: 12 VDC/5.5 mm kabel koncentryczny/PoE (802.3af; 36V do 57V). Wymiary:110mm × 82.4mm. Waga: 410g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1123G2-I(2.8mm)

Kod produktu zamiennego: 311320701

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD1123G0E-I
2 MP Fixed Dome Network Camera








◼ High quality imaging with 2 MP resolution
◼ Efficient H.265+ compression technology
◼ Clear imaging against strong back light due to DWDR technology
◼ Water and dust resistant (IP67) and vandal resistant (IK10)
◼ EXIR 2.0: advanced infrared technology with long IR range







◼ Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Wide Dynamic Range Digital WDR
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount M12
Focus Fixed
Aperture F2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 30 m
Video
Max. Resolution 1920 x 1080
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser.



Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection, video tampering alarm, exception
General
Linkage Method Upload to FTP, notify surveillance center, send email
Camera Material Metal & Plastic
Camera Dimension Ø110 mm x 82.4 mm (Ø4.4" x 3.2")
Package Dimension 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Camera Weight Approx. 410 g (0.9 lb.)
With Package Weight Approx. 610 g (1.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version V5.5.120
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)






◼ Available Model
DS-2CD1123G0E-I(2.8/4 mm)




◼ Dimension


◼ Accessory
◼ Optional
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1280ZJ-DM18
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-110B
Wall Mount
DS-1271ZJ-110
Pendant Mount







DS-1250ZJ
Rain Shade
DS-1259ZJ
Inclined Ceiling
Mount
DS-1272ZJ-110
Wall Mount
DS-1258ZJ
Wall Mount





050512020210402
