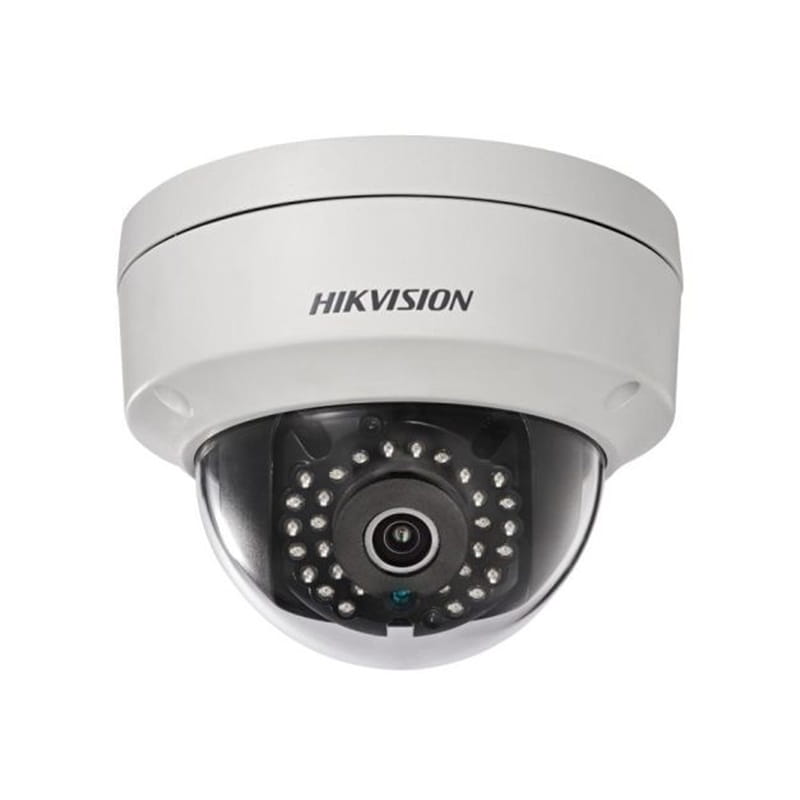

DS-2CD1123G0E-I(2.8mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 2MP (max. 1920x1080@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0.028Lux@ F2.0 (wł. AGC), zasięg IR do 30m, dzień/noc ICR, obiektywy: 2.8mm/F2.0, kąt widzenia 114.8st.. Kompresja: H.265+/H265/H.264+/H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, ROI: 1 obszar. Wyzwalanie alarmu: detekcja ruchu, sabotaż wideo, błędne logowanie. Regulacja położenia 3D. Wymiary: śr.111x82.4 mm. IP67, IK10. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

2.8 mm Fixed Lens 4 mm Fixed Lens









Key Features

* 1/2.8" progressive scan CMOS * 3D DNR
* 1920 x 1080@30fps * Up to 30 m IR range
* 2.8 mm/4 mm fixed lens * IP67, IK10






DS-2CD1123G0E-I
2 MP IR Fixed Network Dome Camera



Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR DWDR
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Lens
Focal length 2.8 mm, 4 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°
4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile/Baseline Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled, day, night
Network
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version V5.5.70
API ONVIF (PROFILE S), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Specification





Available Model
DS-2CD1123G0E-I (2.8/4 mm)





Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection IP67, IK10
Material Front cover: plastic, back cover & bracket: metal
Dimensions
Camera: Ø 111 mm x 82.4 mm (4.4" x 3.2")
With package: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Weight
Camera: Approx. 400 g (0.9 lb.)
With package: Approx. 600 g (1.3 lb.)



Dimension
Φ 111 mm (4.4")
Φ 79 mm (3.1")
Φ 100.4 mm
(4 ")
Φ 79 mm (3.1")
82
.4
mm
(
3
.2
"
)


Accessories

DS-1259ZJ
Inclined Ceiling
Mount

DS-1271ZJ-110
Pendant Mount

DS-1272ZJ-110
Wall Mount

DS-1272ZJ-110B
Wall Mount

DS-1258ZJ
Wall Mount


DS-1276ZJ-SUS
Corner Mount

DS-1280ZJ-DM18
Junction Box

DS-1250ZJ
Rain Shade

DS-1253ZJ-M
Rain Shade
