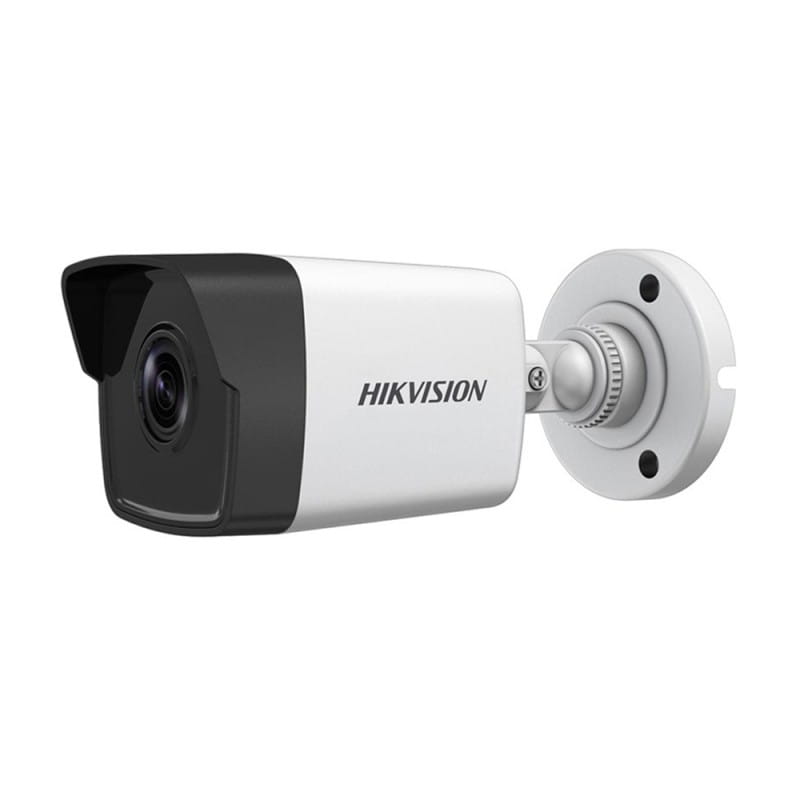

DS-2CD1053G0-I(2.8mm)(B)

Kamera IP Hikvision typu Bullet, rozdzielczość 5MP (2560 x 1920/30kl.s), 1/2.7" Progressive Scan CMOS, czułość: kolor: 0.01 Lux @ F1.2 (wł. AGC), 0.028 Lux (F2.0 wł. AGC). IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8mm: HFOV 98°, VFOV 72°, DFOV: 127°, F2.0, kompresja H.264/H.265/MJPEG, dwa strumienie, WDR: 120dB, BLC /3D DNR/, IP67. Funkcje: detekcja ruchu, wyjątki. Ogólne funkcje: odbicie lustrzane, ochrona haseł, maski prywatności, znak wodny, filtrowanie adresów IP, 3-osiowa regulacja położenia. Temperatura pracy: -30°C do +60°C. Zasilanie: 12 VDC/PoE (802.3af; 36 to 57V). Wymiary:177.6 mm × 66.2 mm × 67.8 mm. Waga: 270g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1053G0-I(2.8mm)(C)

Kod produktu zamiennego: 311317399

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD1053G0-I
5 MP IR Fixed Network Bullet Camera
* 1/2.7" Progressive Scan CMOS
* 2560 x 1920 @15fps
* Color: 0.01 Lux @(F1.2; AGC ON), 0.028
Lux @(F2.0; AGC ON)
* 2.8/4/6 mm fixed lens
* H.265+, H.265, H.264+, H.264
* 3D Digital Noise Reduction
* IP67


Key Features



Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120 dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length 2.8/4/6 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°
4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°
6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8Mbps
Smart Feature-set
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1920
Main Stream
50Hz:12.5fps (2560 x 1920), 20fps (2560 x 1440), 25fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 15fps (2560 x 1920), 20fps (2560 x 1440), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC/3D DNR
Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night Switch Auto/Scheduled/Day/Night
Network
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
error, HDD full
Network Storage NAS (NFS,SMB/CIFS)









172.7 mm (6.80" )
1
2
0
°

Ø 70 mm
(2.76" )
69.1 mm (2.72" )
6
6

m
m

(
2
.
6
0"

)








Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
General Function Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.52
API ONVIF(PROFILE S,PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, class 3
Power Consumption and
Current
12 VDC, 0.5 A, max. 5 W
PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Protection Level IP67
Material Front cover: metal, bracket: plastic, camera body: plastic
Dimensions
Camera: Ø 70 mm x 172.7mm (2.7" x 6.8")
With package: 216 mm x 121 mm x 118 mm (8.5" x 4.8" x 4.6")
Weight
Camera: 300g (0.7 lb)
With package: 550g (1.2 lb)
Accessory
Dimensions
Available Models:
DS-2CD1053G0-I(2.8/4/6 mm)








DS-1280ZJ-XS
Junction Box

05055220180626
