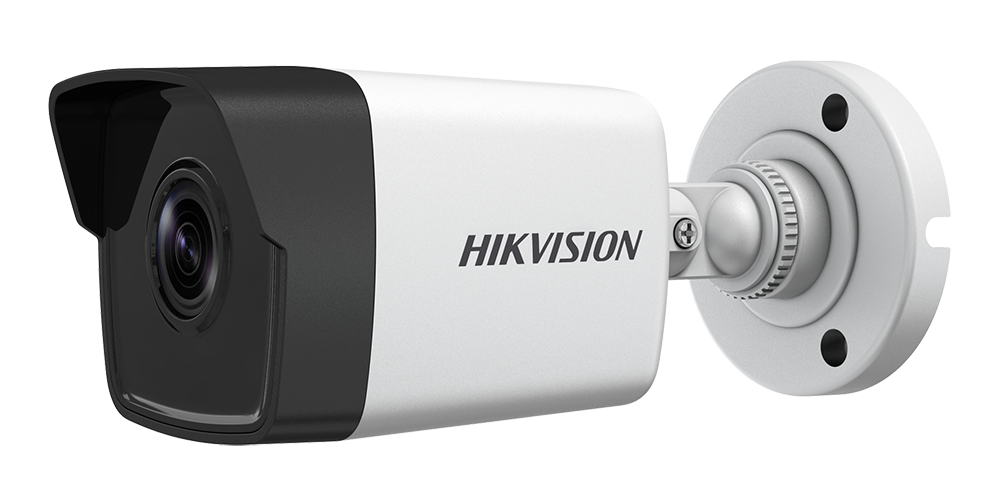

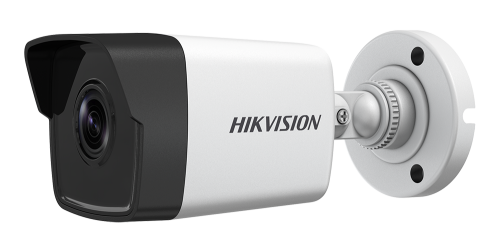

DS-2CD1053G0-I(2.8mm)

Kamera IP Hikvision typu Bullet, rozdzielczość 5MP (50Hz: 12.5kl/s; 2560 x 1920), przetwornik: 1/2.7" Progressive Scan CMOS ,czułość: kolor: 0.01 Lux @ F1.2 (wł. AGC), 0.028 Lux @F2.0(wł. AGC), zasięg IR 30 m, dzień/noc ICR, obiektyw: 2.8mm/F2.0, HFOV: 100st., VFOV: 74st., DFOV: 130st., kompresja H.265/H.264/MJPEG, dwa strumienie, WDR: 120dB, 3D DNR/ BLC, IP67, ROI: 1 obszar. Funkcje: detekcja ruchu, sabotażu wideo, rozłączenia sieci, konflikt adresów IP, błędne logowanie, bład HDD, HDD pełny, ogólne funkcje: odbicie lustrzane, ochrona haseł, maska prywatności, znak wodny, filtrowanie adresów IP, 3-osiowa regulacja położenia. Temperatura pracy: -30st.C do +60st.C. Zasilanie: 12VDC/PoE. Wymiary: śr. 70 mm x 172.7mm. Waga: 300g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1053G0-I(2.8mm)(B)

Kod produktu zamiennego: 311314298

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD1053G0-I
5 MP IR Fixed Network Bullet Camera
* 1/2.7" Progressive Scan CMOS
* 2560 x 1920 @15fps
* Color: 0.01 Lux @(F1.2; AGC ON), 0.028
Lux @(F2.0; AGC ON)
* 2.8/4/6 mm fixed lens
* H.265+, H.265, H.264+, H.264
* 3D Digital Noise Reduction
* IP67


Key Features



Specifications
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120 dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length 2.8/4/6 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°
4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°
6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8Mbps
Smart Feature-set
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1920
Main Stream
50Hz:12.5fps (2560 x 1920), 20fps (2560 x 1440), 25fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 15fps (2560 x 1920), 20fps (2560 x 1440), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC/3D DNR
Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night Switch Auto/Scheduled/Day/Night
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.
Network
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
error, HDD full









172.7 mm (6.80" )
1
2
0
°

Ø 70 mm
(2.76" )
69.1 mm (2.72" )
6
6

m
m

(
2
.
6
0"

)








Network Storage NAS (NFS,SMB/CIFS)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
General Function Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.52
API ONVIF(PROFILE S,PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, class 3
Power Consumption and
Current
12 VDC, 0.5 A, max. 5 W
PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Protection Level IP67
Material Front cover: metal, bracket: plastic, camera body: plastic
Dimensions
Camera: Ø 70 mm x 172.7mm (2.7" x 6.8")
With package: 216 mm x 121 mm x 118 mm (8.5" x 4.8" x 4.6")
Weight
Camera: 300g (0.7 lb)
With package: 550g (1.2 lb)
Dimensions
Available Models:
DS-2CD1053G0-I(2.8/4/6 mm)









DS-1280ZJ-XS
Junction Box

Accessory
05055220200110
