DS-2CD1047G0-L(2.8mm)

Dostępność: 0
Cena: 693,00 zł 693.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311312727

Opis

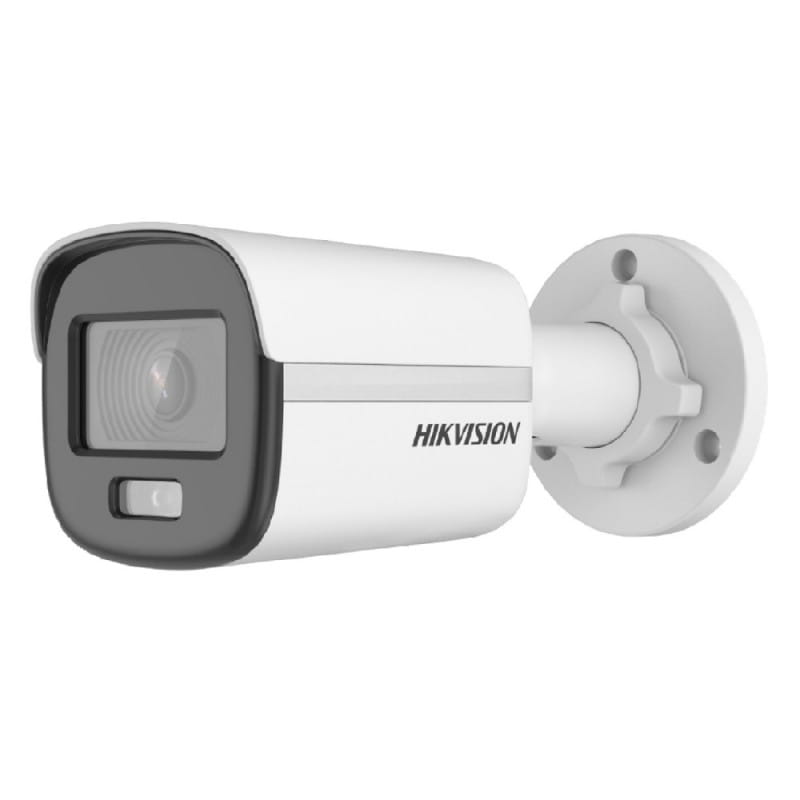

Kamera IP Hikvision typu Bullet ColorVu Lite, rozdzielczość 4MP (2560 × 1440/20kl.s), 1/2.7" Progressive Scan CMOS, czułość: kolor: 0.001 Lux @ (F1.0, AGC ON), 120dB WDR, Obiektyw 2.8 mm, HFOV 102°, VFOV 54°, DFOV 121°dodatkowy oświetlacz smart, zasięg światła białego do 30m, dwa strumienie, kompresja: H.265+/H.265/H.264+/H.264; BLC, HLC, 3D DNR, tryb korytarzowy, Funkcje: detekcja ruchu, wyjątek; Temperatura pracy: -30 °C do 60 °C; Zasilanie: 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, Wymiary: 68.4 × 65.2 × 161.1 mm, waga 430g; IP67...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD1047G0-L(2.8mm)(C)

Kod produktu zamiennego: 311316776

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD10 47G0-L
4 MP ColorVu Lite Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging
ColorVu Lite
ColorVu Lite series are the economic products with ColorVu technology. Hikvision ColorVu technology provides 24/7 vivid
colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more
light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light
scenarios, built-in, warm supplemental lighting works to guarantee colorful images.


 Specification

Camera
Image Sensor 1/2. 7" Progressive Scan CMOS

Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON)

Shutter Speed 1/3 s to 1/100,000 s

Slow Shutter Yes

Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

P/N P/N

Wide Dynamic Range Digital WDR

Lens
Lens Type & FOV
2.8 mm, horizontal FOV 102°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

Aperture F1.0

Lens Mount M12

Aperture Type Fixed

Depth of Focus
2.8 mm: 1.7 m to ∞
4 mm: 2.1 m to ∞

Illuminator
Smart Supplement Light Yes

Supplement Light White

White Light Range Up to 30 m

Video
Main Stream
50Hz: 20 fps (2560 x 1440) 25 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (2560 x 1440) 30 fps (2304 x 1296, 1920 x 1080, 1280 x 720


Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 TypeBaseLine Profile/Main Profile/High Profile

H.265 TypeMain Profile

Region of Interest (ROI) 1 fixed region for main stream

Network
Simultaneous Live View Up to 6 channels

API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host Up to 32 users. 3 user levels: administrator, operator and user

Security
Password protection, complicated password, HTTPS encryption, IP address filter,
security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF

Client iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+



Day/Night Switch Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser

Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)

Basic Event Motion detection, exception (illegal login)

General

Linkage Method
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger
capture
*Note: External device is required.

Web Client Language English

General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter

Software Reset Reset via web browser and client software

Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection

Power Consumption and
Current
12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W

Power Interface Ø5.5 mm coaxial power plug

Material Metal

Camera Dimension 68.4 x 65.2 x 161.1 mm (2.7" x 2.6" x 6.3")

Package Dimension 172 x 104 x 80 mm (6.8" x 4.1" x 3.1")

Camera Weight Approx. 420 g (0.9 lb.)

With Package Weight Approx. 510g (1.1 lb.)

Approval

EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)

Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection Ingression protection: IP67 (IEC 60529-2013)

 Available Model
DS-2CD1027G0-L(2.8 mm, 4 mm)




 Dimension



 Accessory

DS-1280ZJ-XS
Junction Box
















050511220200410
