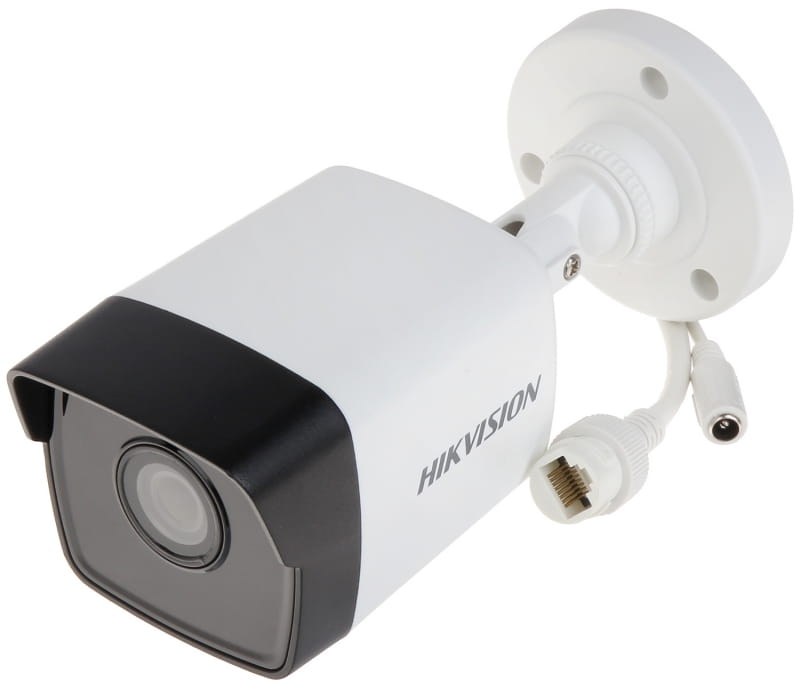

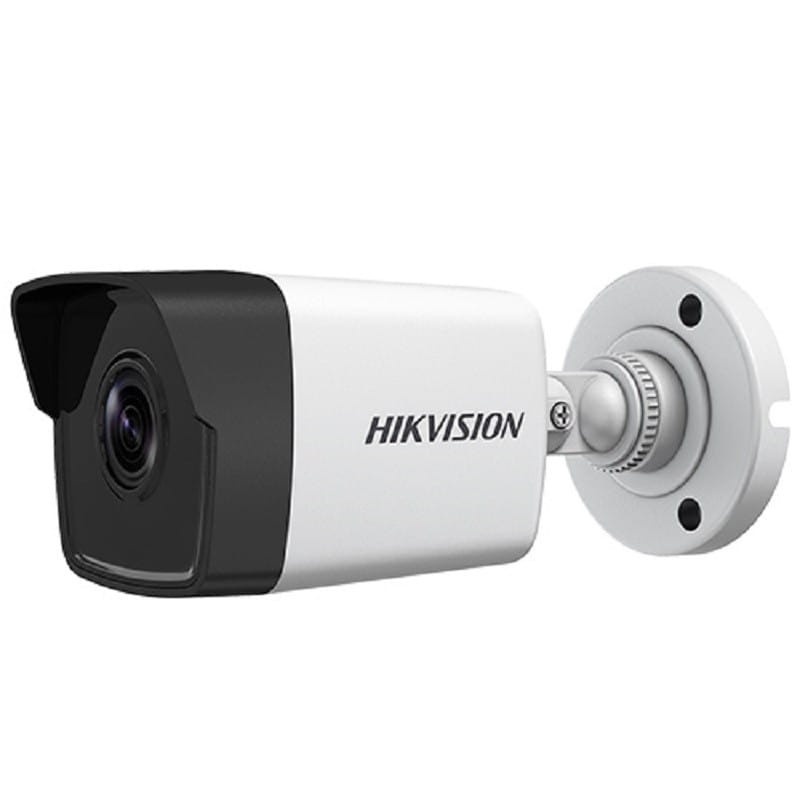

DS-2CD1031-I(4mm)(D)

Kamera IP Hikvision w obudowie typu bullet, rozdzielczość 3MP (max. 2304x1296@20kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektywy: 4mm/F2.0, kąt widzenia 105.8st. lub 4 mm/F2.0, kąt widzenia 83.6st. lub 6mm/F2.0, kąt widzenia 55st.. Kompresja: H.264+/H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, ROI: 1 obszar. Regulacja położenia 3D. Wymiary: 69.1x66x172.7 mm. IP67. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 1/ 3 " progressive scan CMOS
 Up to 3.0 megapixel
 2.8mm/4 mm/6mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR ( Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67
 Mobile monitoring via Hik -Connect or iVMS -4500

DS -2CD1031 - I
3.0 MP CMOS NetworkBullet Camera




Camera
Image Sensor 1/ 3 " progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens
2.8 mm @F2.0, horizontal field of view 105.8 ° , 4 mm @F2.0, horizontal field of view 83.6 °
6 mm @F2.0, horizontal field of view 55 °
Lens Mount M12
Day &Night IR cut filter with auto switch
3 -Axis Adjustment (Bracket) Pan: 0° to 3 60°, tilt: - 90°to 9 0°, rotation:0° to 3 60°
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main profile /High profile
Video Bit Rate 32 Kbps to16 Mbps
Max. Resolution 2304 x 1296
Main Stream
Max. Frame Rate
50Hz: 20fps@ ( 2304 x 1296 ), 25fps @ (1920 x 1080, 1280 x 720 )
60Hz: 20fps@( 2304 x 1296 ) , 30fps @ ( 1 920 x 1080, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 x 360, 352 x 288)
60Hz: 30fps @(640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS,SMB/CIFS)
Detections Motion Detection
Alarms Video tampering , network disconnected, IP address conflict ed
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6 ,Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function Anti-flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions - 30 °C to 6 0 °C ( - 22 °F to1 40 °F), humidity : 95% or less (non -condensing)
Power Supply 1 2 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 5 W/6.5 W (PoE)
Ingress Protection IP 67
IR Range Up to 30 m
Dimensions 69.1 mm x66 mm x 172.7 mm ( 2.7 " x 2 . 6 " x 6.8 " )
Weight 500 g (1.1 lb.)
Specification




Available Models
DS-2CD10 3 1 - I
Dimension

172 .7 mm (6.8")
69 .1 mm
(2.7")
66
mm
(2.6")

Φ 70 mm
(2.8")

Accessory

DS -1280ZJ - XS
Junction Box







050440170207
